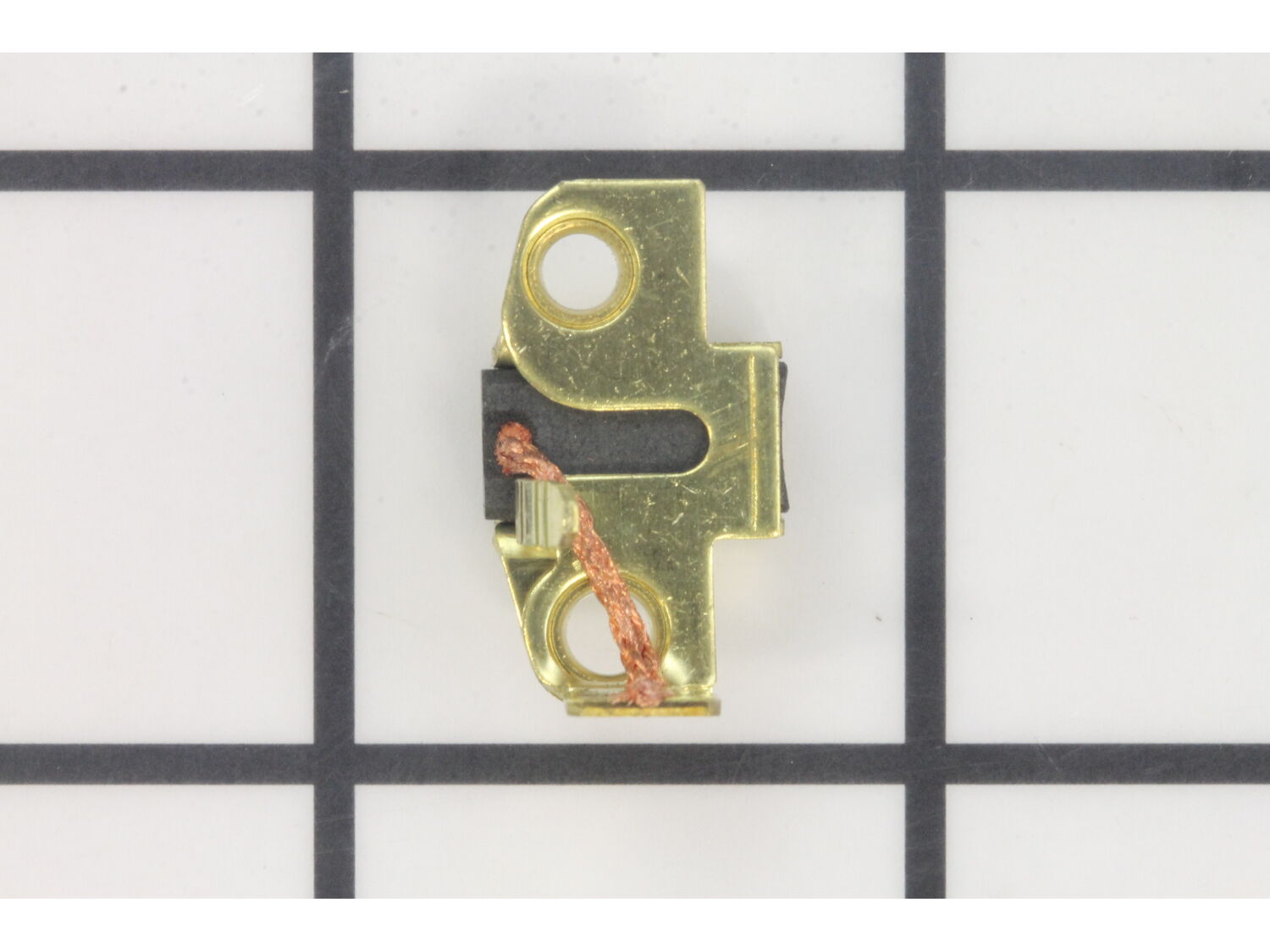

Genuine OEM replacement part Includes 1 Carbon Brush in metal housing for easy installation. • Worn brushes are often the cause of a poorly running motor • Replacing brushes can fix an intermittent motor • New brushes can restore a motor's electric braking Carbon motor brushes are one of the most commonly replaced power tool components. • Because carbon brushes are wear items, meaning that through friction and use they will gradually wear away, they will eventually require replacement. • Worn brushes are common causes of intermittent motor function, reduced electric braking, and reduced motor power. • A worn out brush will often be worn down near the wire lead and may be cracked, pitted, or burned. • When replacing carbon brushes, be sure to also inspect your armature for burns, cracks, or other damage which indicates a larger motor problem.
Troubleshooting
This part works with the following brands:
Porter Cable
DeWALT
DeVilbiss
This part works with the following products:
Laminate Trimmer
Sander Polisher
Jig Saw
Part# N031636 replaces these:
N031636,
★
Customer Part Reviews
?
4.6
Average Rating (out of 5):
★★★★★
★★★★★
(9 Reviews)
Click to filter by ratings:
5 stars
8
4 stars
0
3 stars
0
2 stars
0
1 star
1
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Happy
I have been using "Replacement Parts" for maybe 10 years really like the navigation of their site and quick delivery of their parts.
Sam - June 1, 2019
Verified Purchase
★★★★★
★★★★★
Very pleased
Brushes and switch are genuine parts. Super easy transaction and fast shipping. Thank you!!
Guest - October 8, 2019
Verified Purchase
★★★★★
★★★★★
Brush replacement
Received in a prompt manner and installation was a breeze
Guest - November 8, 2019
Verified Purchase
★★★★★
★★★★★
Got the parts when stated and they work great.
I ordered brushes and on/off switches for our routers and trimmers. The parts worked great and we continue on.
Iglobal - October 13, 2020
Verified Purchase
★★★★★
★★★★★
electric motor brushes
Saved over $100, quick delivery and quick fix. package said they were for a weed eater but put them in my porter cable random orbital sander.
Guest - August 24, 2021
Verified Purchase
★★★★★
★★★★★
Part arrived quickly and was as advertised
Part fit nicely. Installation blog was a big help.
James - October 25, 2021
Verified Purchase
★★★★★
★★★★★
Perfect replacement
Quick to ship and the right part for my sander. Reasonable price even with today's outrageous shipping costs.
Guest - March 16, 2022
Verified Purchase
★★★★★
★★★★★
Brush replacement on orbital sander
Prompt delivery and new brushes were easy to install once I had the motor apart. Only minor problem I had was the variable speed comtroller prevented getting the driver in with an extension. Held the driver in position and used an ignition wrench to remove/replace the retaining screw. Great parts!!!
Guest - December 26, 2022
Verified Purchase
★★★★★
★★★★★
BAD SERVICE DISAPPOINTED
WE PALCE TWO ORDERS BACK IN FEB.MARCH.
IT WAS MONTHS BEFORE WE GOT A REPLY THAT PARTS WHERE DISCONTINUED.
IT STILL TOOK APPROX. 3 MONTHS TO RECEIVE WHAT WAS ABLE TO BE SUPPLIED.
IT'S OK IF THERES NO SUPPLY, ANSWERS NEED TO BE GIVE ASAP.
Guest - June 18, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the outer cover by removing one screw. Each brush assembly was easily removed, the old brush removed and replaced by the new one and then screwed into place, and then the cover was reinstalled.
Unplug Trimmer from electric outlet. Remove end cap covering brush assembly using #2 phillips screw driver. Disconnect electrical lead going to brush assembly. Remove brush holder using T9 Torx driver. Remove old brush for holder. Do Not Loose Spring. Place new brush in holder making sure spring is correctly behind new brush. Place brush
... Read more and holder back in trimmer. Connect electrical leads to brush assembly. Replace end cap on trimmer. Plug cord back into outlet. Resume work.
Removed screw on top of the router and took the top off then removed 2 screws holding brushes in, replaced brushes and put it back together and it started and runs like a champ.
1. Removed cap by removing the retaining screw.
2. Be sure to notice how the switch and wires are run under and on the cap for reassembly.
3. Removed the old brush assembly and disconnected the wire.
4. Attached the new brush assembly and the connected wire.
5. Be sure the spring is properly engaged so the brush ma
... Read morekes proper contact.
6. Aligned the switch, organized wires to eliminate pinch points and attached the cap.
1. Remove the rear cover by taking out one screw.
2. DIs connected the lead from both brushes.
3. To remove the brushes, you have to unscrew one torx head screw on each brush
assembly. One side was easy but the variable speed swhitch made the other hard to
remove. Had to use an open end ignition wr
... Read moreench to turn the torx head and back out the
screw.
4. Replaced the brushes and reassembled.
NOTE: The spring that applies tension to the brush in hard to position. Important to carefully remove the old brush and observe how the spring is installed.
Read less
