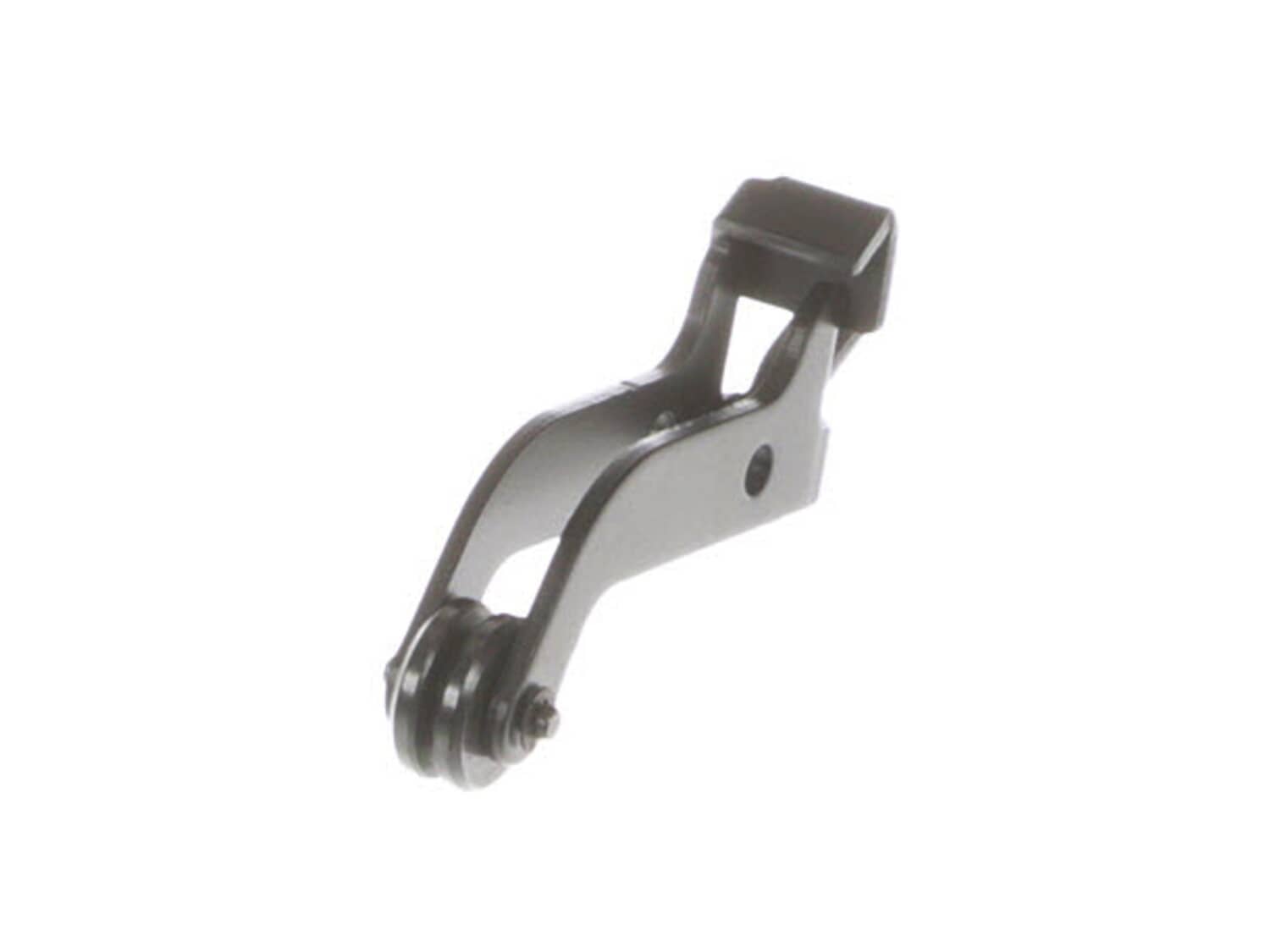

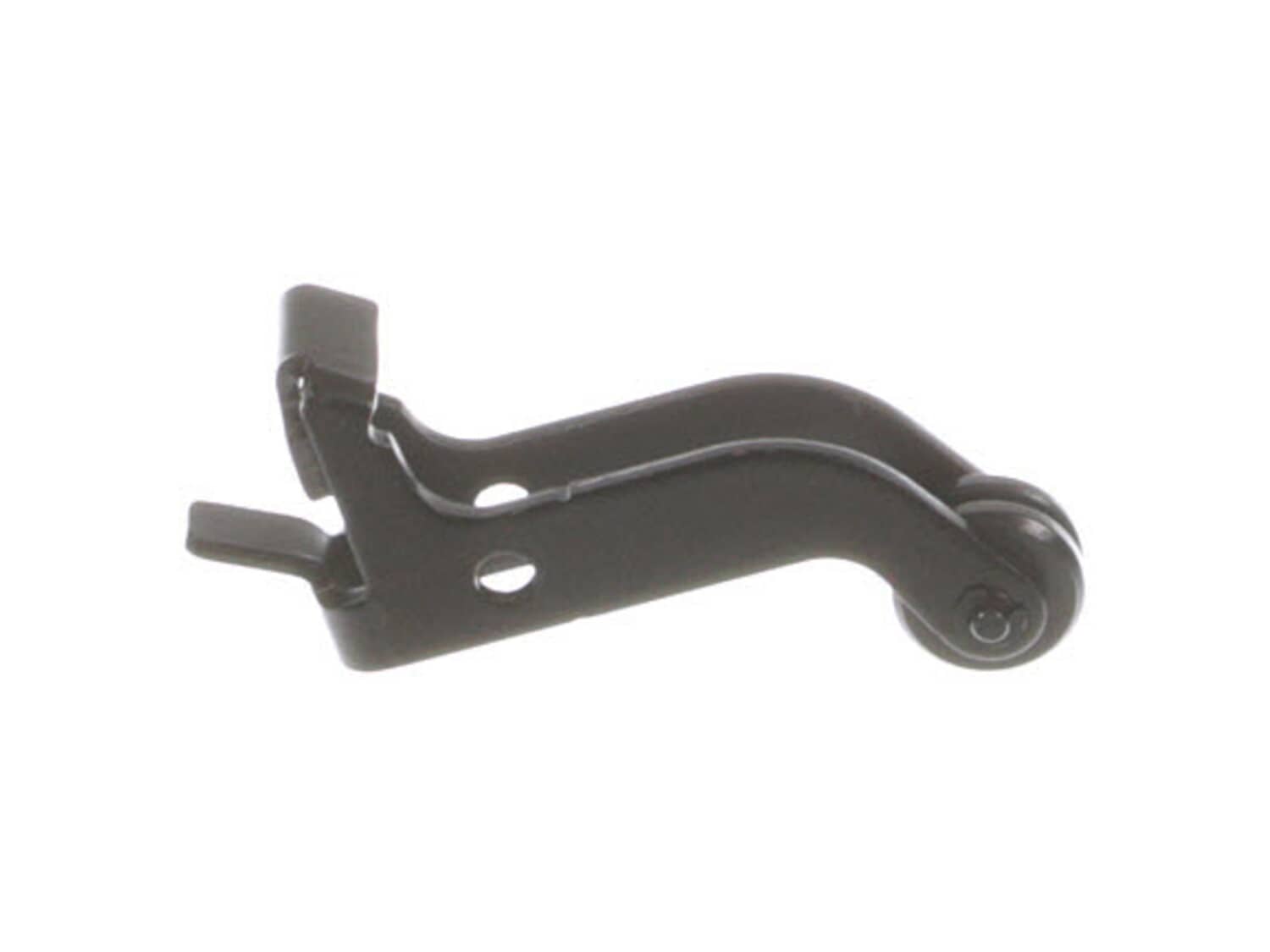

This authentic item that is supplied by the original equipment manufacturer for use with Ryobi jig saws. It is an identical replacement for a missing or a faulty blade guide assembly that was installed on a new unit. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of this hardware. Keep in mind this high-quality part is made of durable metal is sold individually. Note, the <a href="http://www.ereplacementparts.com/compression-spring-p-944517.html" target=blank><u>#692670001 Compression Spring </u></a> for the guide is sold separately.
Troubleshooting
This part works with the following brands:
Ryobi
This part works with the following products:
Jig Saw
Part# 305061005 replaces these:
305061001,
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(6 Reviews)
Click to filter by ratings:
5 stars
6
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Perfect part, easy install.
Part was easy to install, quickly sent, and inexpensive.
Guest - August 31, 2019
Verified Purchase
★★★★★
★★★★★
Exactly what’s advertised
It worked great. Couldn’t have been happier
Guest - October 25, 2019
Verified Purchase
★★★★★
★★★★★
Problem solved
It was easy to identify the part and order it.
Jorge - January 13, 2020
Verified Purchase
★★★★★
★★★★★
Perfect match to original part
Arrived within estimated delivery time. Well packaged
Guest - September 1, 2020
Verified Purchase
★★★★★
★★★★★
Perfect fit
Arrived on time and was easy to install. Pay attention to the springs inside the saw.
Guest - January 13, 2022
Verified Purchase
★★★★★
★★★★★
Great experience.
Part was an exact replacement. Delivery was timely. No problems at all.
Chris - May 20, 2022
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I decided to replace the blade guide assembly instead of trying to find a very small lock washer that had come off the pin holding the wheel in place. Separated the halves of the jigsaw body by removing all screws. The new blade guard assembly does not come with the pin and spring so you need to reuse the parts from the old assembly. Pay
... Read moreclose attention to how the spring is installed before removing it, so you can install it back correctly. This repair was for the Ryobi cordless jigsaw.
Read less
Did you find this story helpful?
Thank you for voting!
I broke the pin that holds the wheel on the blade guide
1. I opened the shell with a screwdriver and take a picture of the interior so it all can go back)
2. Remove the broken guide assembly (it held in place by a pin)
3. Replace the part making sure the spring is taking tension.
4. Make sure all parts are still where they should be and all moving parts move
5. Close th
... Read moree shell and screw it down
Couldn\'t get the spring tight on the new assembly. Tried several times and then accidentally tipped jigsaw over and all the hits fell out. So I just bought a new one!!! I have a bunch of replacements parts now...
1) unplug saw and power off verify by pulling trigger
2) use supplied hex key with saw or your own (if you can\'t find it) to remove metal saw guide/angle of cut adjuster with built in dust collection attachment (1 screw)
3) remove all phillips screws on side of saw, used screw driver for deep screw and power drill for the res
... Read moret. Do not try and remove the metal part of the shell when it comes lose as it has one screw inside holding it on and doesnt need to be removed
4) split shell with hands or flat head screw driver being very careful of spring loaded detent for the metal angle adjustment
5) watch the spring orientation and free floating pin on the guide before removing and reuse on the new guide. Also pay close attention to the blade gaurd which may fall out/needs to be put in with plastic spreader/retainer piece between the ends of the gaurd where it mounts in the plastic tool body
6) put shell back together in reverse order and reattach the metal saw guide/angle adjuster. If using power drill to reinstall screws on plastic shell be mindful not to over torque
I removed screws from the outside housing, opened up the jigsaw, removed the existing blade guide assembly and fit in the new one.
The spring had to be wrapped back around. It was at this point I discovered I had purchased the wrong part (I didn\'t verify model number prior to purchase).
The guide assembly was close enough t
... Read moreo the right size to work though and I was able to get the jigsaw back up and functioning.
Read less
Did you find this story helpful?
Thank you for voting!
Roller on blade guide assembly broke off. Then entire assembly had to be replaced.
1. Separate the clam-shell casing of the jig saw by removing about 10 screws.
2. Remove the old blade guide assembly. Note how the spring is seated before removing.
3. Insert the new blade guide assembly. The only tricky part entails re-inserting the steel spring under tension. Took a little time to figure out how to do this
... Read more. The spring is small and ends up being under a lot of tension.
4. Be sure that the two small pieces used to bolt the bottom plate of the jig saw get replaced in the dust chute when reassembling.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP17016785
Manufacturer Part Number: 305061005
