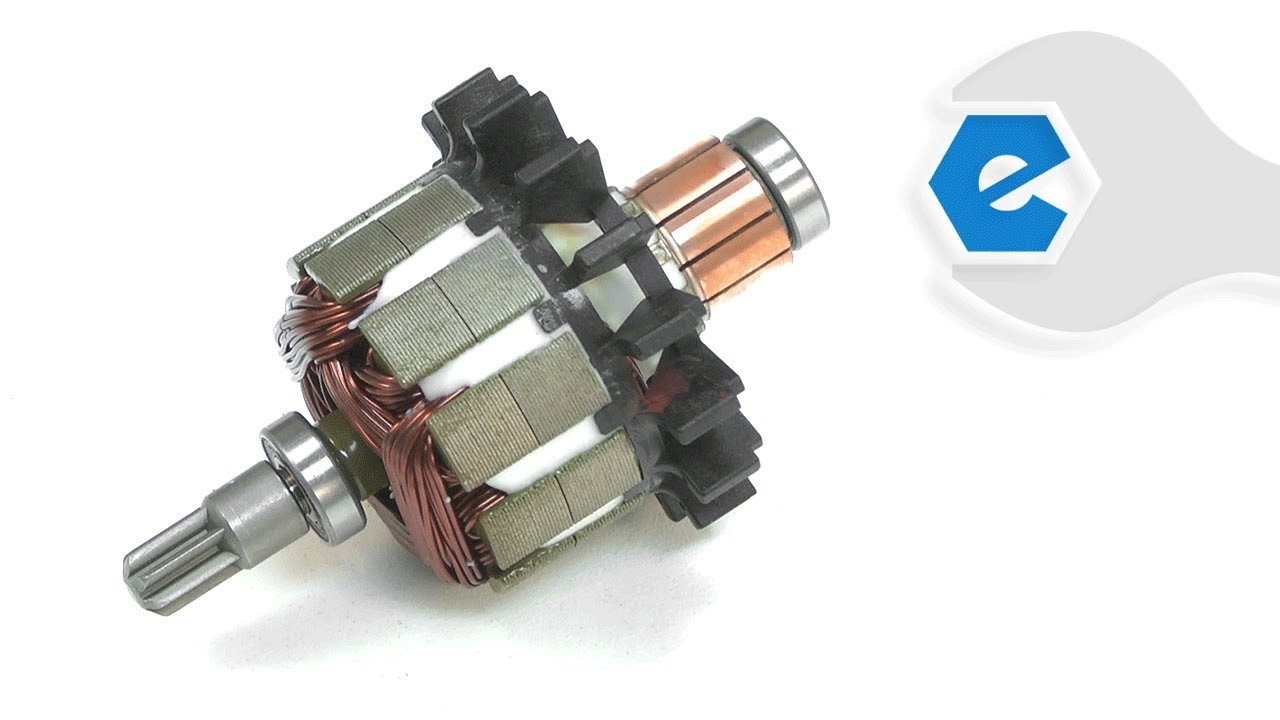

This replacement armature assembly is an authentic item that is specially manufactured for Milwaukee power tools. It is a center component of an electric motor, armatures fail most often from heat and stress when the tool is overloaded. It is a complete assembly which includes the armature, the plastic fan, the armature bearing and the commutator end bearing. It is highly recommended to replace both carbon brushes when replacing an armature. Please note this high-quality component is sold individually.
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Brushed burnt out and piece of the brush card got it to armature and tore it up.
Justin from Dearing, Kansas
| Brand | Model Number | Description |
|---|---|---|
| Milwaukee | 2650-20 | Impact Driver - 18 Volt 1/4" Hex Impact Driver |
| Milwaukee | 2650-21 | Impact Driver - 18 Volt 1/4" Hex Impact Driver |
| Milwaukee | 2650-22 | Impact Driver - 18 Volt 1/4" Hex Impact Driver |
| Milwaukee | 2651-059 | Impact Driver - Impact Driver |
| Milwaukee | 2651-20 | Impact Driver - 18 Volt 3/8" Square Impact Driver |
| Milwaukee | 2651-22 | Impact Driver - 18 Volt 3/8" Square Impact Driver |
| Milwaukee | 2652-059 | Impact Driver - Impact Driver |
| Milwaukee | 2652-20 | Impact Driver - 18 Volt 1/2" 34 Square Impact Driver |
| Milwaukee | 2652-22 | Impact Driver - 18 Volt 1/2" Square Impact Driver |
| Milwaukee | 2658-059 | Impact Driver - Impact Driver |
| Milwaukee | 2658-20 | Impact Driver - M18 3/8" Square Impact Wrench |
| Milwaukee | 2658-22 | Impact Driver - M18 3/8" Square Impact Wrench |
| Milwaukee | 2658-22CT | Impact Driver - M18 3/8" Square Impact Wrench |
| Milwaukee | 2659-059 | Impact Driver - Impact Driver |
| Milwaukee | 2659-20 | Impact Driver - M18 1/2" Square Impact Wrench |
| Milwaukee | 2659-22 | Impact Driver - M18 1/2" Square Impact Wrench |
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
