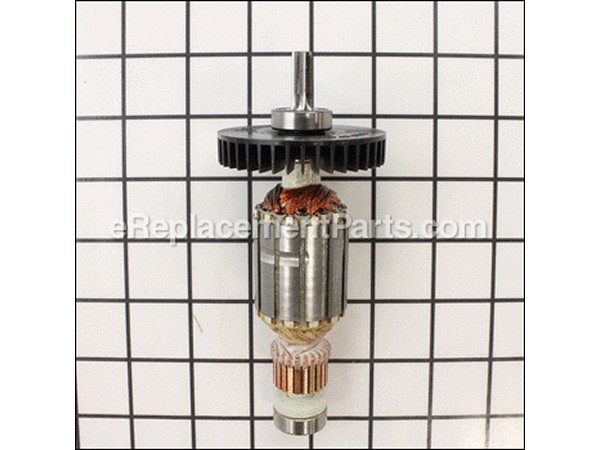

Part Location Diagram of 515261-4 Makita Armature Assembly 115v
See part 23 in the diagram
( Grid squares measure 1x1 inch )

Armature Assembly 115v 515261-4

Manufactured by:
Makita
ERP Number:
ERP11884075
Part Number:
515261-4
Original Equipment Manufacturer ?
$157.27
Special Order

Does this part fit my model?

Need help finding your model number?

Product Description

?

Includes bearings, washer and fan

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Impact Driver

Questions & Answers

?

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Impact wrench smokes around the area of the brushes but the brushes appear to look good?
Bud For model number Makita tw0350 - April 11, 2022

Hello Bud, Thank you for your inquiry. We have researched the model number you have provided and if the brushes appear to be ok, we would recommend checking the armature and the switch. We hope this helps and if you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

eReplacementParts Team
April 11, 2022

Did this question help you?
Thank you for voting!

Model Cross Reference

This part works with the following models:
ERP Number: ERP11884075
Manufacturer Part Number: 515261-4
Brand Model Number Description
Makita TW0350 Impact Driver - Drive Impact Wrench
