Part Location Diagram of 607990-03SV DeWALT Motor And Pinion
See part 2 in the diagram

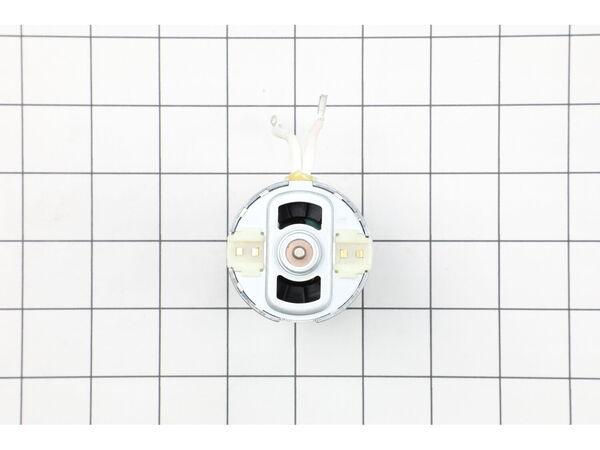

( Grid squares measure 1x1 inch )

Motor And Pinion 607990-03SV

Manufactured by:
DeWALT
ERP Number:
ERP11927766
Part Number:
607990-03SV
Original Equipment Manufacturer ?
  Works with your model  DW057!
$51.65
In Stock
Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(2 rated repairs) ?
  Works with your model   DW057!

Product Description

?

It is an authentic item that is supplied directly from the original equipment manufacturer for use with DeWALT impact wrenches. This component provides an identical replacement for a missing or a faulty motor with a pinion that was installed on a new unit. Please make sure to check the appropriate diagrams of your model for the correct location and application of this part. Keep in mind this high-quality motor and pinion assembly is sold individually.

Troubleshooting

This part works with the following brands:
  • DeWALT
This part works with the following products:
  • Impact Driver
  • Wrench

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(2 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Fan on motor broke apart

James from San Antonio, Texas

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
607990-03SV
Removed screws, installed new motor. Installed screws. Done!
Did you find this story helpful?
Thank you for voting!

Burnt motor

Christopher from Medina, Ohio

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Wrench set
Parts Used:
607990-03SV
Remove one half of the case. Disconnect the motor terminals, then carefully lift the motor out, don\'t loose the motor support. Place the motor support on the new motor and install the new motor. Reconnect the terminals. Then put the case together.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP11927766
Manufacturer Part Number: 607990-03SV
Brand Model Number Description
DeWALT DW056 Impact Driver - 18V Cordless Impact Driver
DeWALT DW056K-2 Impact Driver - 18v Impact Driver
DeWALT DW056KS Impact Driver - 18v Impact Driver
DeWALT DW057 Impact Driver - 18V Cordless Impact Wrench
DeWALT DW057K-2 Wrench - 18v Impact Wrench
