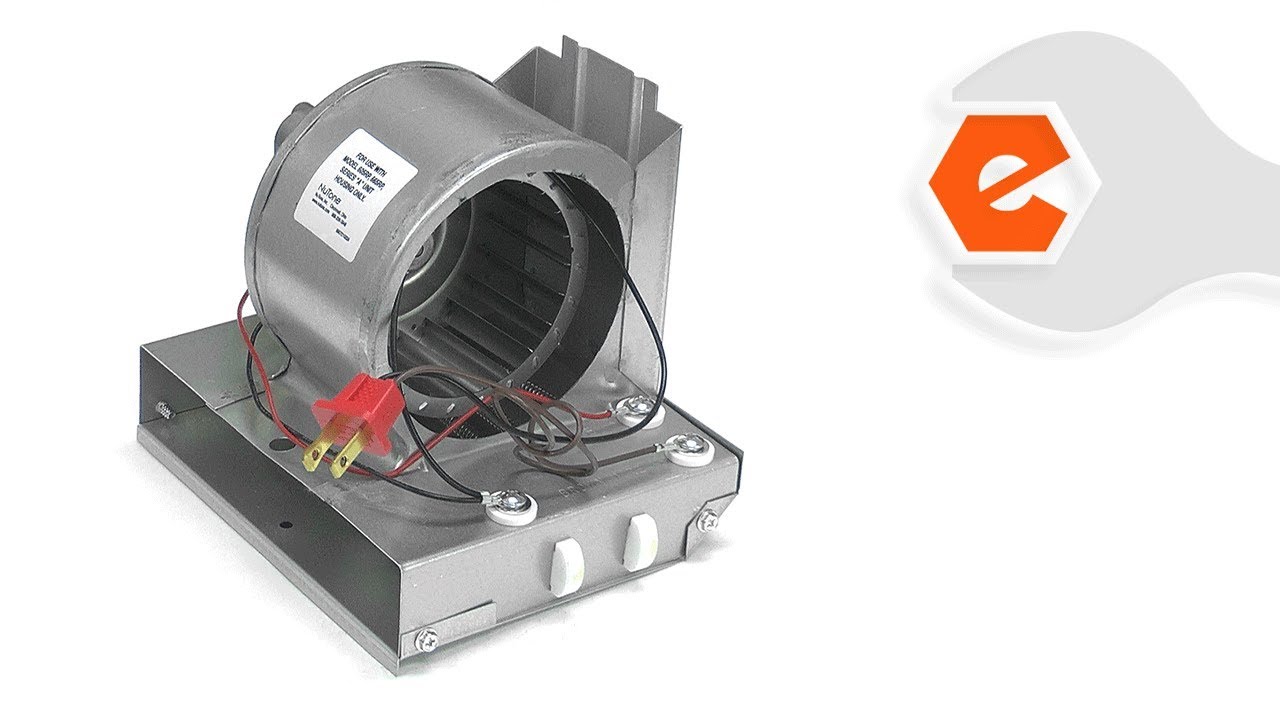

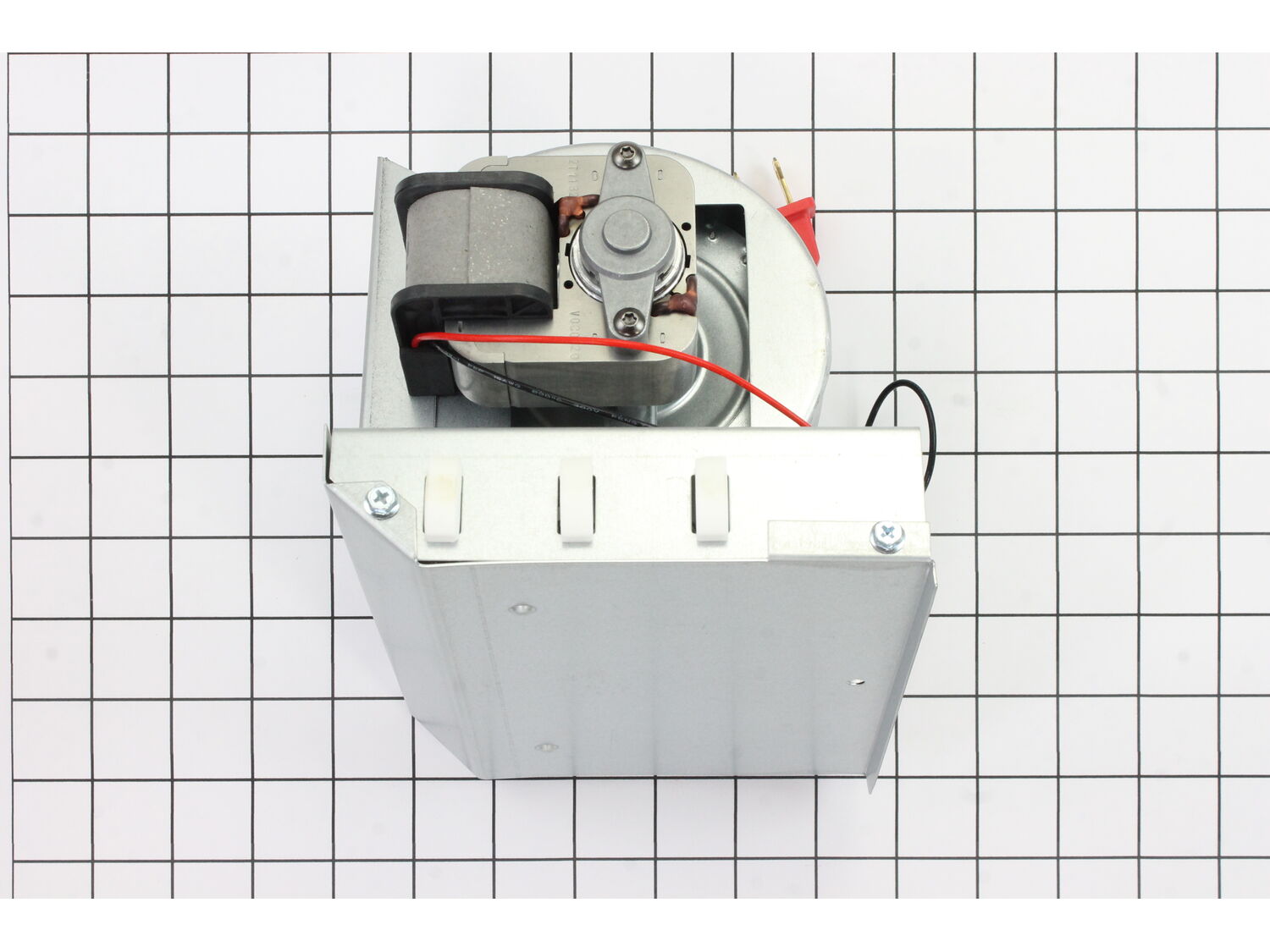

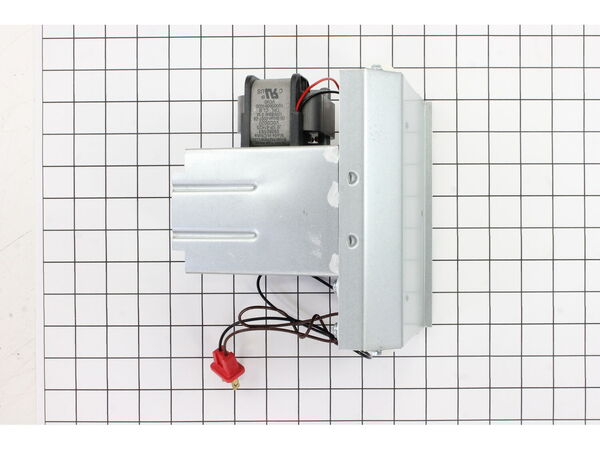

This genuine OEM heater assembly includes a scroll cover, scroll housing, motor, wheel, bolt assembly, element, hook (5), nut (6), screw (5), and a two-prong plug. It is sourced from the original manufacturer for use in ceiling heaters. If the appliance can no longer produce heat or switch on, the assembly should be replaced. Ensure that the power to the unit is turned off at the circuit breaker to prevent accidental shock. Remove the vent cover/grille to access the assembly. Unplug the heater assembly and remove the mounting screw(s) that hold it in place. Pull the faulty assembly out of the housing and place the new one in. Reinstall the mounting screw(s) and plug the assembly in. Reattach the cover/grill to complete the repair.
Troubleshooting
This part works with the following brands:
Nutone
This part works with the following products:
Heater
Part# S97017648 replaces these:
S98010295,
Videos For installing this part.
?
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(11 Reviews)
Click to filter by ratings:
5 stars
11
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
2
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Nice replacement!
Wasn't sure it was the right one when I first opened the box - sure didn't look like the old one-- installed easily. Is louder than the old one and puts out more heat!!..
Guest - September 26, 2019
Verified Purchase
★★★★★
★★★★★
Heater and Fan Replacements
It's great to be able to take showers in a warm, non foggy bathroom again. I'm glad that the parts were available since my ceiling fan/light/heater assembly is long out of warranty.
Guest - October 29, 2019
Verified Purchase
★★★★★
★★★★★
Heater assembly Nutone ceiling fan
Perfect match. Works as expected
Guest - December 3, 2019
Verified Purchase
★★★★★
★★★★★
Easy Repair - great part
The part was perfect and the replacement was easy.
Guest - November 16, 2020
Verified Purchase
★★★★★
★★★★★
Nice replacement from original
The original heater/fan had a plastic housing that became disfigured from heat.
The replacement heater is a metal housing and seems more robust.
Guest - April 6, 2021
Verified Purchase
★★★★★
★★★★★
Ceiling fan back in business!
Both the replacement ceiling vent and heater were an exact fit. Only took about an hour to install both parts and they worked perfectly.
Guest - January 4, 2022
Verified Purchase
★★★★★
★★★★★
no problems
fit good
Guest - August 22, 2022
Verified Purchase
★★★★★
★★★★★
Heater Assembly
The Heater assembly was easy to replace and works very well.A little pricey but it is a direct replacement that makes it a simple fix.
Guest - February 5, 2023
Verified Purchase
★★★★★
★★★★★
Old heater
The part was wrong due to my mistake in ordering.
Tony - March 28, 2023
Verified Purchase
★★★★★
★★★★★
Worked as expected
Arrived Perfect condition. No problem installing. Very good customer service when ordering the heater.
Guest - April 8, 2023
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove lamp cover and bulb. Remove heater unit vent cover with screwdriver. Unplug heater. Remove screw holding heater in bracket (takes a little twisting around to get it to come out). I then cleaned the housing where I removed broken heater unit. Replace with new heater unit. Plug up the unit and put vent cover back on. Replace b
... Read moreulb and lamp cover.
Note-replacement heater unit is different style as original, however instructions show both units in the drawings so you know this new one is a new replacement for original.
First off, the new replacement heater assembly is a thousand percent better constructed than the original. The original motor system was plastic, where as this is all steel. The heater it self is wider, giving you more heated air flow. Replacement was as easy as pie. One screw out, remove old in with new, one screw in. It took longer to t
... Read moreake the vent cover, and light assembly off than replace the heater. Excellent product!!
1. Unscrewed cover
2. Unplugged heating assembly
3. Removed one screw that held heating assembly unit
4. Removed unit
5. Replaced with new unit
6. Replace one screw that holds unit
7. Replace cover
Simple repair. Remove light cover and bulb and center screw to get the cover off. Then get to unit and remove one screw, unplug interior connection and wiggle out old unit. Slide new unit in catching tab up to pre attached screw and plug and reinstall cover and done. Saved $250 in a few minutes
1. Opened the 3-part composite unit - ie. overhead light unit, vent unit and heater unit by removing the plastic light cover, the light bulb and removing the one phillips-head screw holding the light unit to the entire assembly
2. Removed the heater unit by first unplugging the power cord, removing a somewhat difficult to access scr
... Read moreew that holds the heater unit to the entire assembly and by manipulating the heater unit mounting flange to release it from the entire assembly.
3. Tested the new unit to ensure that it functions by plugging it into a power strip for a minute.
4. Installed the new heater by reversing the process - i.e. placing the heater unit mounting flange into the holding slot, using a NEW screw to hold the Heater unit to the entire assembly as that which came with the new Heater unit was too big for the mounting hole in the entire assembly, plugging the power cord into the appropriate receptacle, replacing the light assembly and returning the light cover.
1.Removed cover with single screw
2.Unplugged the heater unit
3.Removed single retaining screw
4.Slid old heater out
5.Slid new heater in
6.Plugged new heater in
7.Replaced single retaining screw
8.Replaced cover with single screw
Removed the cover plate to the heater, removed the light bulb shield, unplugged the original heater assembly (blower), plugged replacement part in, and secured with single metal screw.
Replaced light bulb shield, and cover plate.
Good thank you I have looked for just the heater assembly for my bathroom fan in stores for years. I am truly grateful for businesses that service repair or replace items the replacement for the entire fan would have been awful thank you for the part replacement
