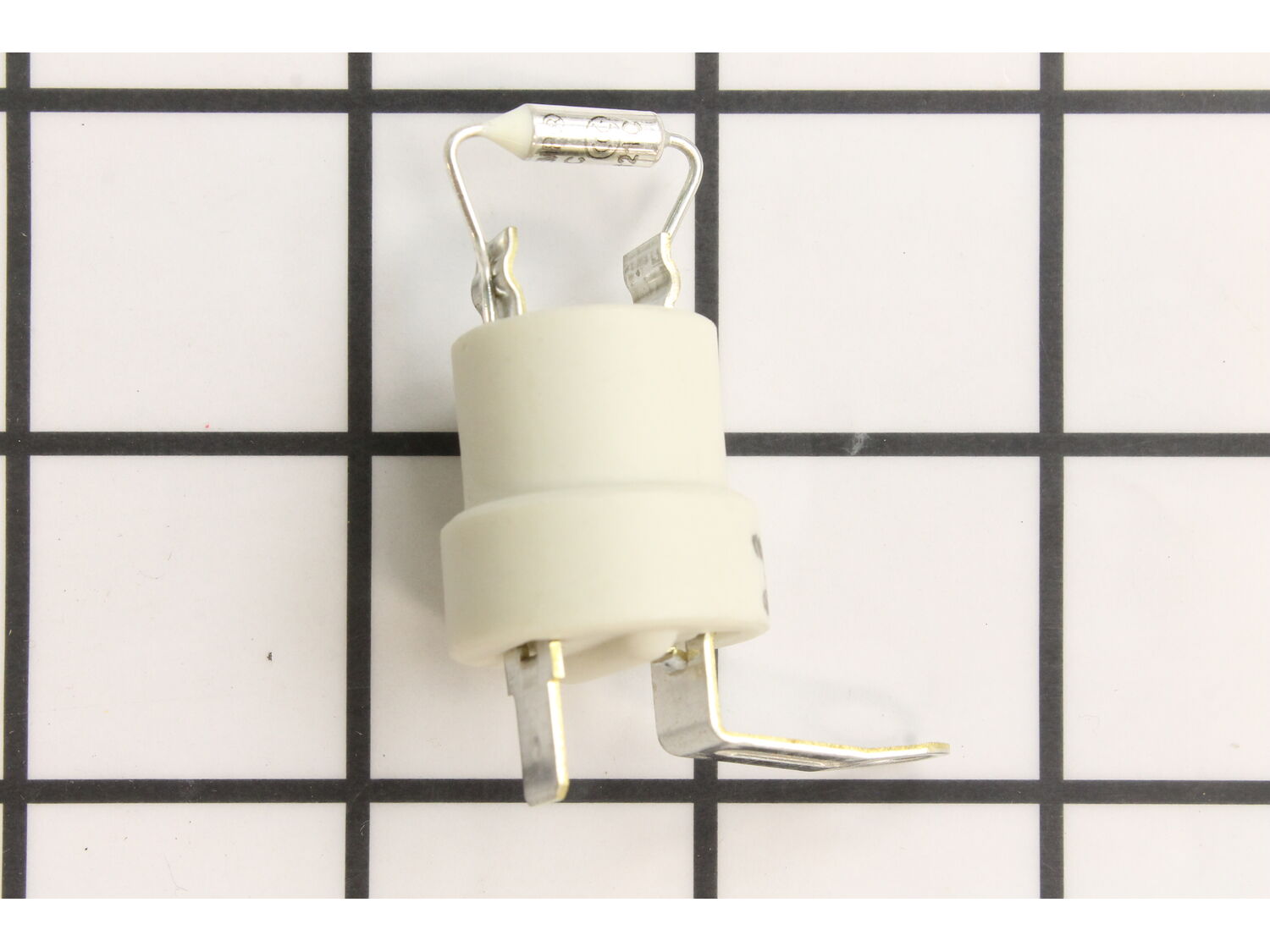

This fuse link is an original part from Broan. Constructed of metal and plastic, this item is compatible with several heater devices. The part is fitted onto the heating element of the appliance, helping the unit to produce heat. Screwdrivers and pliers are needed in making the repair. This component is sold individually. Please be sure to shut off the unit's electrical panel switch before making the replacement.
Troubleshooting
This part works with the following brands:
Nutone
Broan
This part works with the following products:
Heater
Bath & Ventilation Fan
★
Customer Part Reviews
?
4.6
Average Rating (out of 5):
★★★★★
★★★★★
(5 Reviews)
Click to filter by ratings:
5 stars
3
4 stars
2
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
The right part delivered quickly
Right part
James - September 7, 2019
Verified Purchase
★★★★★
★★★★★
Bathroom heater fan repair.
It was simple to find the part with model number. Part arrived quickly and fit perfectly. Saved replacing the whole unit. Saved big $$$.
Guest - February 27, 2020
Verified Purchase
★★★★★
★★★★★
Repair don't replace!
I purchased the fuse link to repair my bathroom fan/heater. Parts for a 30 + years old heater are hard to find, but these guys had it. The part arrived in an amazingly short time. Unfortunately, when I replaced the fuse link the heater worked, but the heater fan didn't. These guys had the part and within a week I was able to rebuild the heater and am back in business. Without eRleacementParts I would have had to replace the unit which meant changing the opening in my ceiling, involving reframing, sheetrock work and painting.
Thanks, Guys, for making my repair possible.
Guest - October 23, 2022
Verified Purchase
★★★★★
★★★★★
Very effecient and easy to order. Shipping cost is extremely excessive!
The part was exactly as advertised, and worked perfectly
Richard - March 4, 2024
Verified Purchase
★★★★★
★★★★★
Worked just like it was supposed to. Great service
Took a little longer to get, but still got here fine. No problems!!
Guest - September 29, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed light cover, removed vent cover.
2. Unplugged light receptacle & reflector.
3..Removed light receptacle & reflector.one screw.
4. Removed heater housing, two screws, lift up off of hanger screws.
5 Unclip power lead from fuse link module..
6. Remove heater power wire from fuse link module, one nut
... Read more..
7. Remove & replace fuse link module.
8. Re-assemble in reverse order
( Determined fuse was defective by bypassing, fan then ran ).
1. Removed cover plate over ceiling light and heater
2. Removed light
3. Removed heater coil assembly
4. Tested fuse link with ohmmeter to determine it was open
5. Ordered fuse link
6. Removed wires from old part
7. Removed old fuse link, installed new one
8. Attached wires to new fuse link
... Read more/>9. Installed heater assembly, light, cover plate
After replacing the heater plug which had shorted out, I bypassed the fuse link and verified it being bad.
I ordered a new fuse link a nd installed it in less than a minute. Plugged it into outlet to insure it was fixed before the final install.
I then replaced the heating unit with 4 screws to secure it in the Nutone housi
... Read moreng
Finally, I then reassembled the reflector, light unit and and lens cover plate.
An easy fix. I have three of these units in my home. The heater assembly unit is no longer available for this model,so knowing how to repair them is a money saver.
I truly appreciate the ease of ordering from eReplacementParts.com.
I took fuse out of different heater in house and replaced in heater not working, fixed it. Ordered the fuse from ereplacement parts and put the new part in. This is a very easy job.
