Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy finding the part, orderig, and the part was sent promptly.
Have not used the part yet. It is a spare.
Guest - June 27, 2019
Verified Purchase
★★★★★
★★★★★
Rotohammer stopped turning on
I was using the rotohammer and it stopped briefly, then worked for a bit more, then quit completely, so I thought it was the switch. But when I opened the thing up and carefully plugged it back in with the switch taped on, the wires were hot all the way to the brushes. The replacement was easy-torx screws and a little screwdriver to disengage the spring that keeps the brushes in place.
Jefferson - June 29, 2020
Verified Purchase
★★★★★
★★★★★
Good quality parts fits perfectly
I received the parts quickly and in great condition
Stephen - February 2, 2021
Verified Purchase
★★★★★
★★★★★

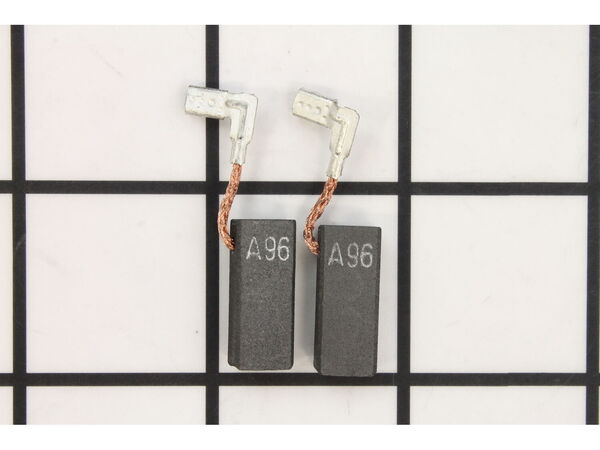

Brush Set
Arrived promptly in good condition. In my case my problem was not caused by the brushes, but not because of the brushes.
Guest - April 16, 2022
Verified Purchase
★★★★★
★★★★★
Beyond repair
This was the incorrect part which was my fault. The drill was burned up on the inside and was beyond repair. However I have used your company many times and have been completely satisfied
Guest - May 19, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1)Disassembled the handle/trigger section. 2)Removed the handle/trigger section from the drill body. 3)Removed old brushes.
4)Installed new brushes.
5) Reassembled drill.
1.remove 3 screws holding the handle cover, take a pic of wire routing and connections.
2.remove switch and power cord, can leave the cord connected. Remove green wire, black and white wires.
3.pull back brush springs and hook them on brush holder to relieve tension on brushes, unplug brushes and pull the brush holder strait o
... Read moreff the armature.
4.remove 3 screws holding drill gearbox and remove gear box pay attention to spring and any washers that may be stuck on with grease.
5.remove the armature from the gearbox, press the armature shaft with a press or use a brass punch after supporting the gearbox on blocks of wood and tap out.
6.Press or tap (brass punch) the armature into the gearbox until it fully seated.
7. install the gearbox/armature into the drill housing paying attention to the gasket, spring and any washers and tighten the 3 screws while turning the chuck making sure its not overly hard to rotate. Mine was hard to rotate, so I removed the armature and measured the distance from the bearing face(commutator end)to the end of the shaft and adjusted the new one to match the distance on the old commutator. Mine was less so I carefully taped and measured until they matched. Then I reinstalled and the
the gearbox while turning the drill chuck, the resistance was good so I fully tightened them.
Removed handle cover. Replaced brushes. Re-assembled. Tested. Result was no change from the start. The drill only runs backward, still. Obviously the brushes were not the cause of the drill running backward. Drill placed in the scrap pile ready for delivery to the scrap yard.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP19504636
Manufacturer Part Number: 1617000525
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
