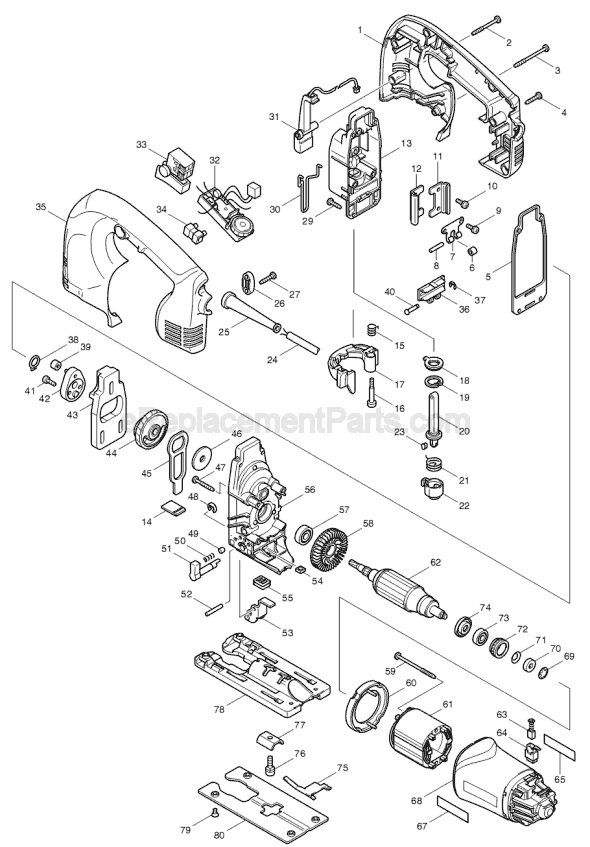

Part Location Diagram of 643936-6 Makita Brush Holder
See part 64 in the diagram
Replacing your Makita Hammer Drill Brush Holder
( Grid squares measure 1x1 inch )

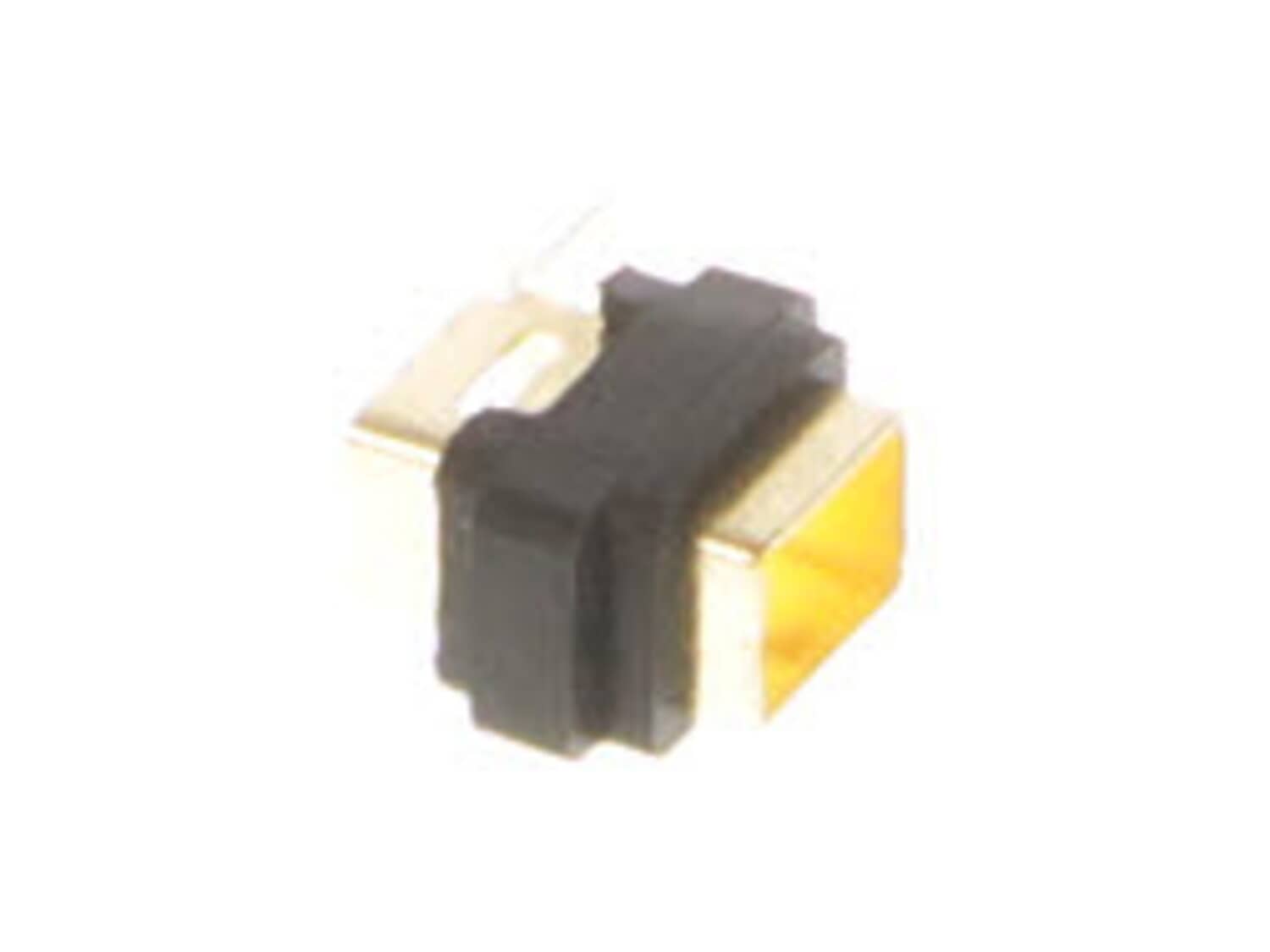

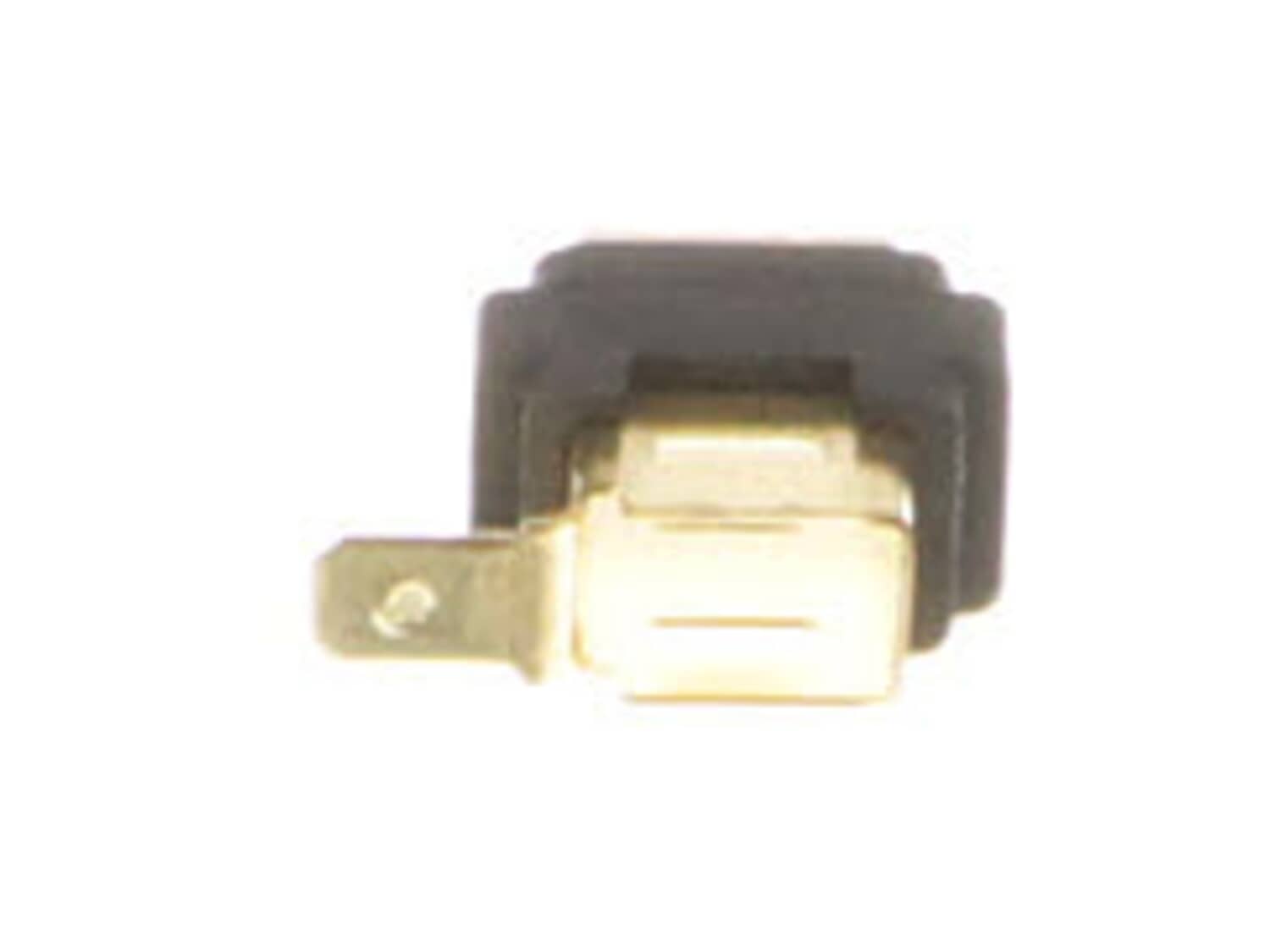

Brush Holder 643936-6

Manufactured by:
Makita
ERP Number:
ERP10153411
Part Number:
643936-6
Original Equipment Manufacturer ?
$9.67
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

It is a high quality manufacturer sourced replacement part that is specially designed for use with Makita power tools. The purpose of a brush holder is to secure the carbon brush providing stable contact with an armature. One durable metal and plastic brush holder is included per order, please note carbon brushes are sold separately.

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Hammer Drill

Videos For installing this part.

?
Replacing your Brush Holder

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Motor was spinning slow and excessive sparks were shooting out.

Samuel from Kenner , Louisiana

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
CB407, 643936-6
1. Removed the cover by removing the cover screws.
2. Inspect the brushes
3. Remove bad brushes from underside cover while unplugging the wire to each.
4 Remove brush from brush holder by removing the clip.
5 Install new brushes and any other damaged parts
6. Reverse steps to put drill back together.
