Part Location Diagram of N715619 DeWALT Motor and Switch Assembly
See part 75 in the diagram
( Grid squares measure 1x1 inch )

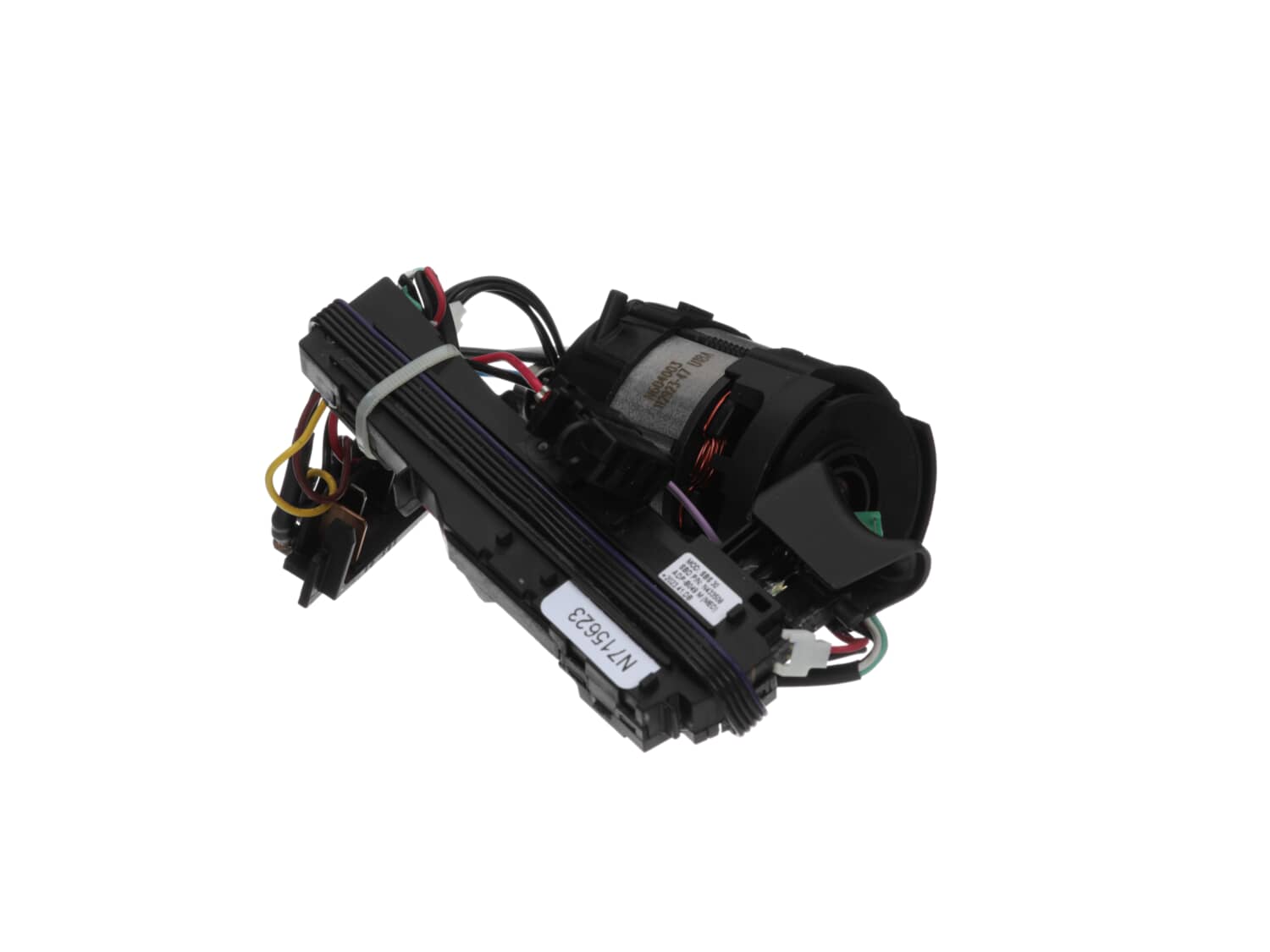

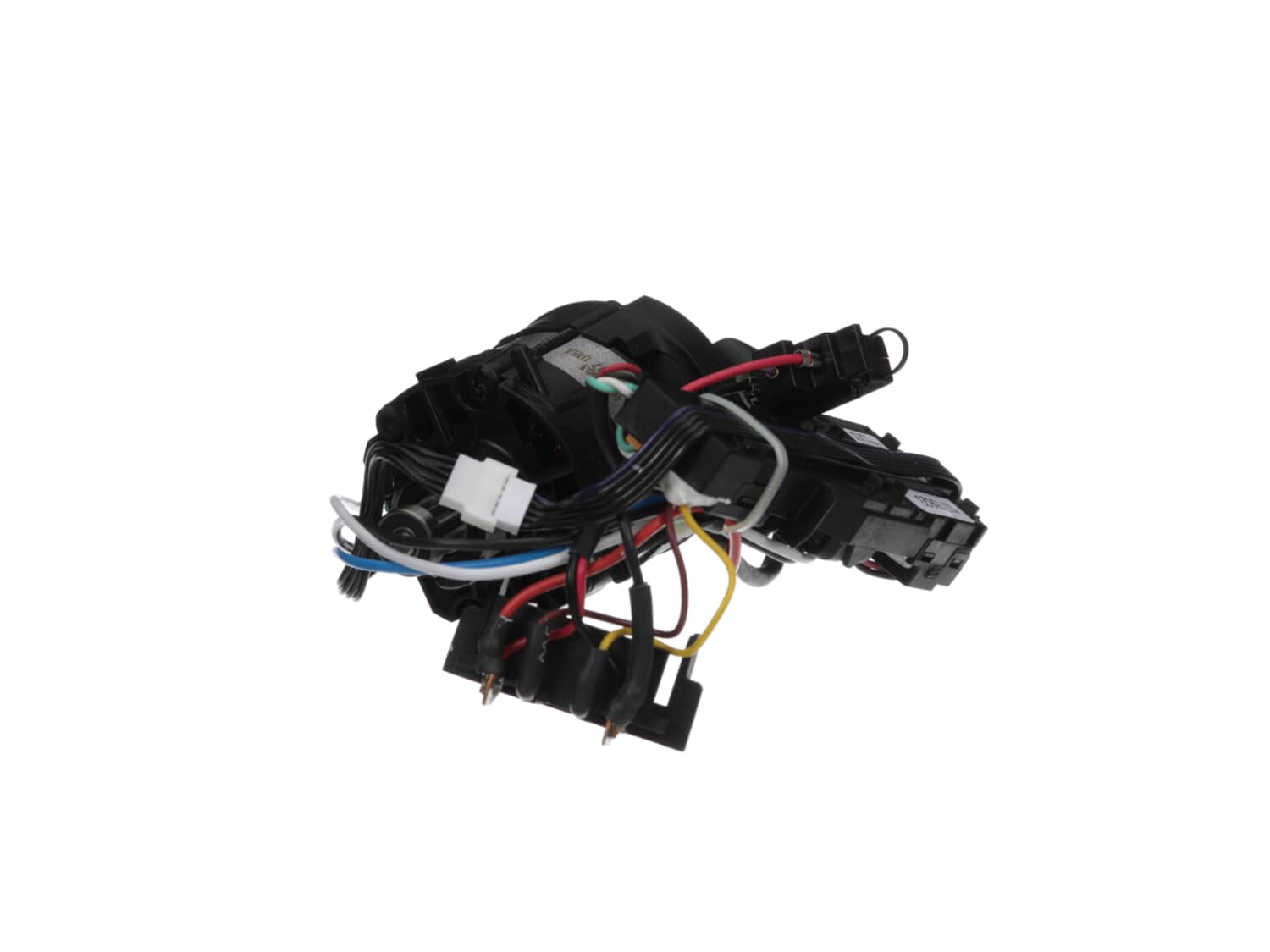

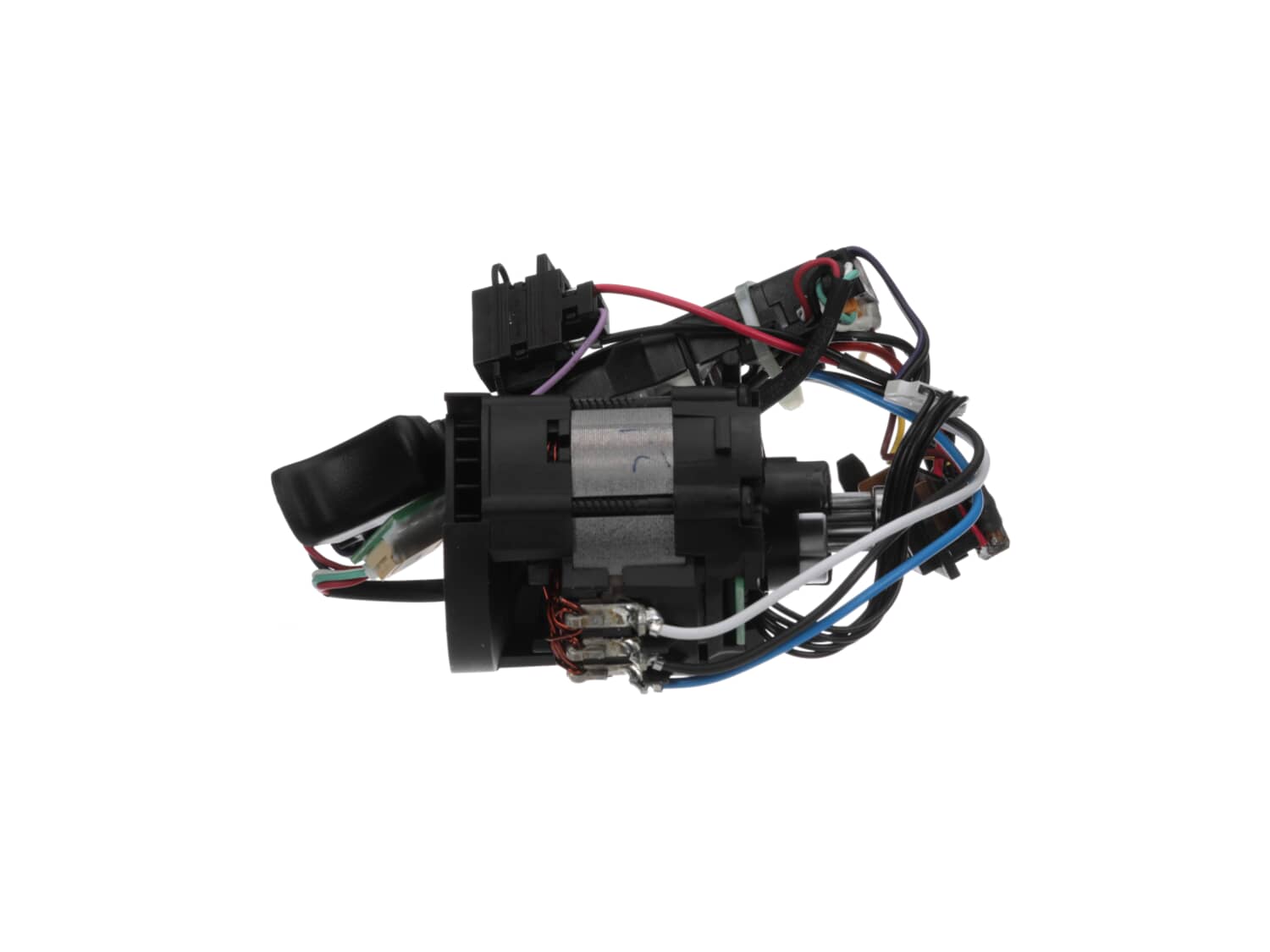

Motor and Switch Assembly N715619

Manufactured by:
DeWALT
ERP Number:
ERP16689149
Part Number:
N715619
Original Equipment Manufacturer ?
$145.71
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Product Description

?

This replacement motor and switch assembly combines the drive motor and electronic switching components into a single integrated unit that provides both power generation and operational control for the tool. Designed to restore performance in rotary hammers experiencing motor failure, power loss, or trigger-related issues, it helps deliver consistent power output, responsive operation, and reliable performance during drilling and chiseling applications. Manufactured to original equipment standards for durability and precise fit, this assembly is an ideal replacement for worn or damaged components, helping extend tool life and restore the performance and efficiency of your cordless rotary hammer.

Troubleshooting

This part works with the following brands:
  • DeWALT
This part works with the following products:
  • Hammer Drill
  • Hammer

Model Cross Reference

This part works with the following models:
ERP Number: ERP16689149
Manufacturer Part Number: N715619
Brand Model Number Description
DeWALT DCH273B Hammer - Rotary Hammer
DeWALT DCH273BR Hammer Drill - Rotary Hammer
DeWALT DCH273H1 Hammer Drill - Rotary Hammer
DeWALT DCH273P2 Hammer Drill - Rotary Hammer
