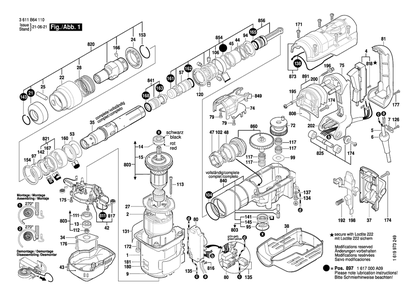

Part Location Diagram of 1615806231 Bosch Tool GUIDE TUBE

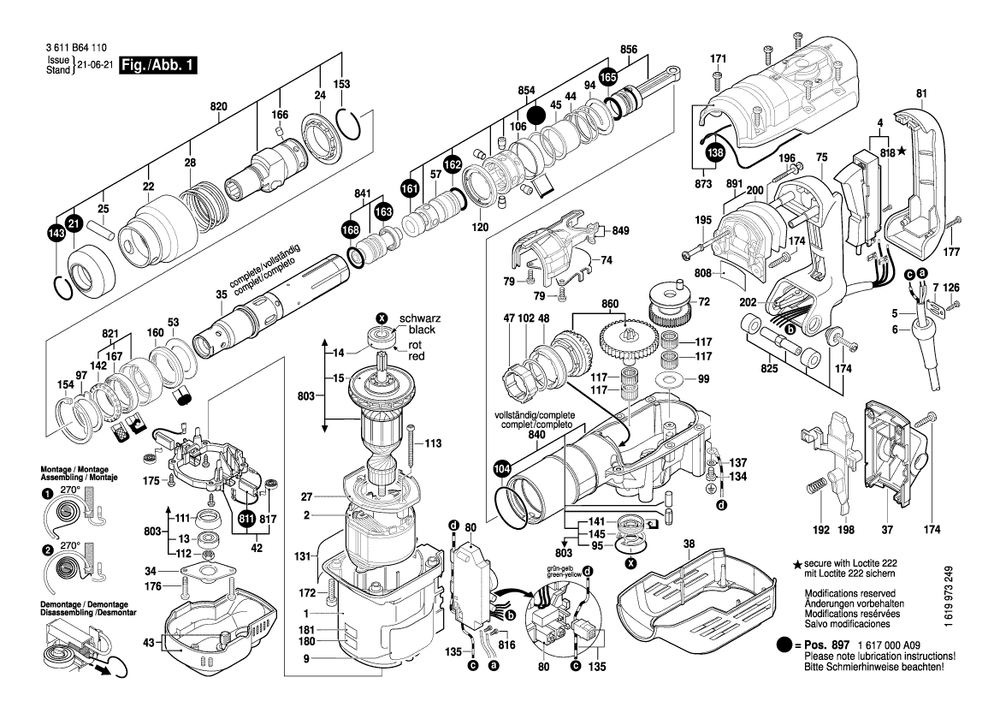

See part 35 in the diagram

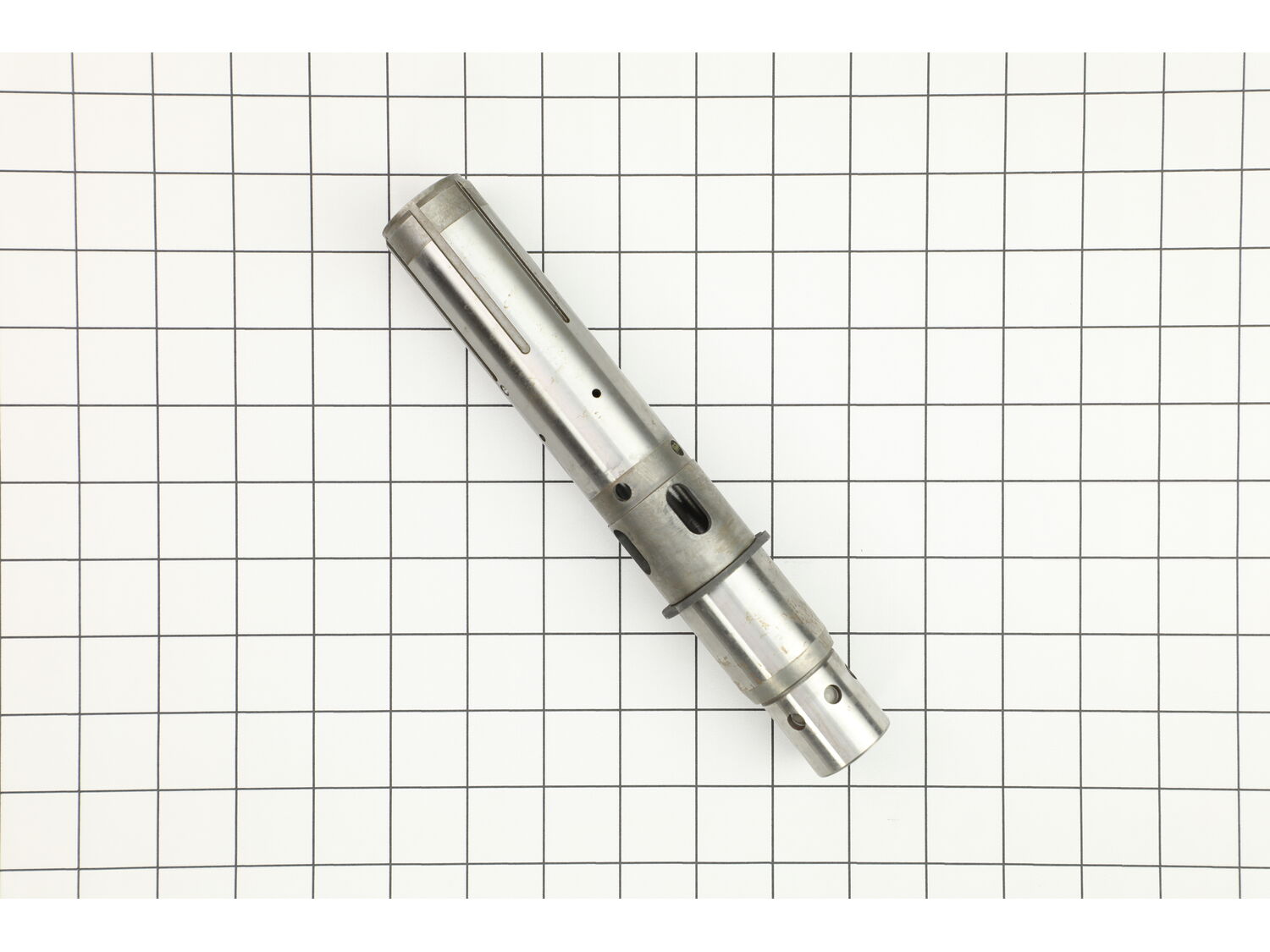

( Grid squares measure 1x1 inch )

GUIDE TUBE 1615806231

Manufactured by:
Bosch Tool
ERP Number:
ERP19504435
Part Number:
1615806231
Original Equipment Manufacturer ?
$243.88
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Bosch
This part works with the following products:
  • Hammer Drill
  • Miscellaneous
Part# 1615806231 replaces these:
1615806231,

Model Cross Reference

This part works with the following models:
ERP Number: ERP19504435
Manufacturer Part Number: 1615806231
Brand Model Number Description
Bosch 11265EVS Hammer Drill - Rotary Hammer
Bosch MISC Miscellaneous - Misc
