Part Location Diagram of 213960-9 Makita O-ring
See part 16 in the diagram

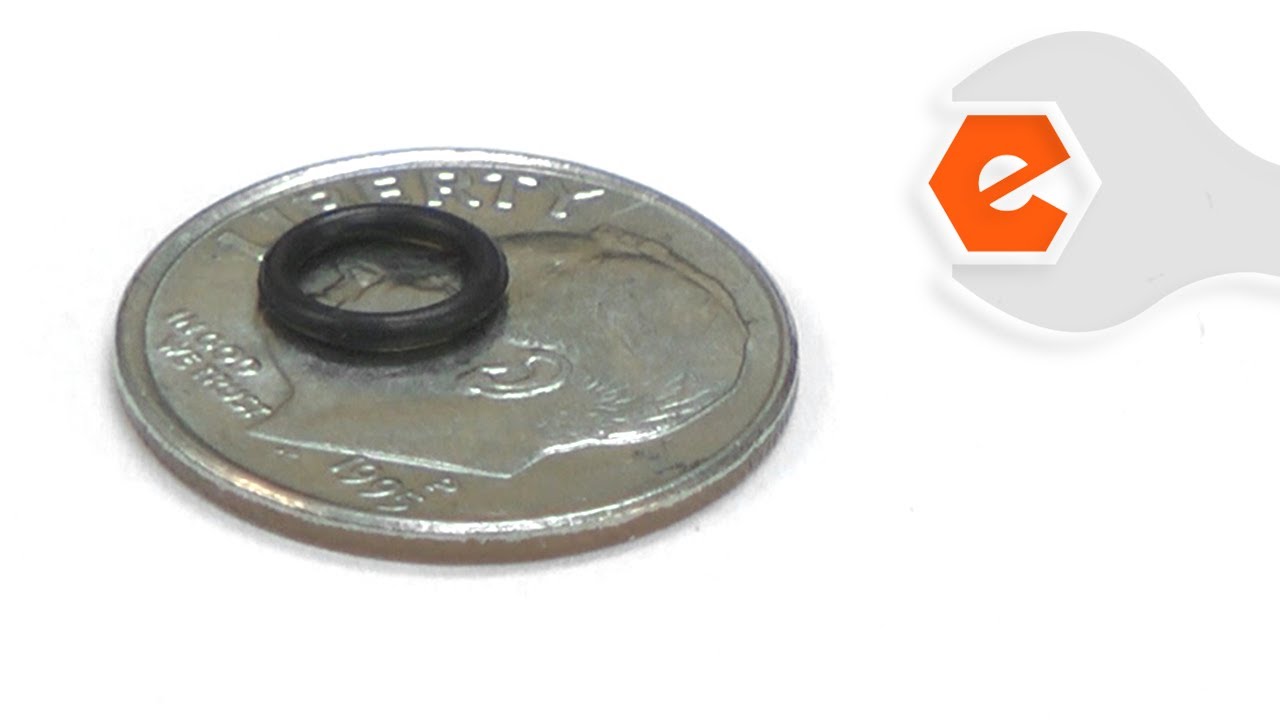

Replacing your Makita Grinder O-ring
( Grid squares measure 1x1 inch )

O-ring 213960-9

Manufactured by:
Makita
ERP Number:
ERP10142022
Part Number:
213960-9
Original Equipment Manufacturer ?
$5.95
In Stock
Delivers in 3-5 Business Days!
Minimum Quantity of 2 required

Easy

Less than 15 mins

(4 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

O-rings are designed to contain thousands of pounds of pressure by creating a seal between two or more parts. O-ring measurements are defined by the inside diameter and the thickness. There are many causes for O-Ring failure, such as pressure, friction, temperature or chemicals. The most common are: • <u>Extrusion and Nibbling</u> • O-ring has ragged, tattered edges. These are commonly caused by pressure spikes which shear off tiny "bites" from the o-ring, or caused by clearance gaps. • <u>Abrasion</u> • One or both sides of the o-ring appear rough and slightly flattened. Commonly caused by a contact surface that is too rough, contains grit or is too smooth to allow lubrication. • <u>Over Compression </u> • O-ring is flattened on both sides and may have a "ring" split along its length. Commonly caused by excessive pressure or heat. • <u>Heat Hardening</u> • O-ring has a pitted or cracked surface, and often is flattened on both sides. Caused by temperature exceeding o-ring capacity. • <u>Weather/Ozone Cracking</u> • O-ring is covered in small surface cracks. Caused by exposure to ozone, UV rays and air pollution. Excessive seal stretching causes similar cracking.

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Grinder
  • Angle Grinder
  • Drill
  • Planer Jointer
Part# 213960-9 replaces these:
213032-0,

Videos For installing this part.

?

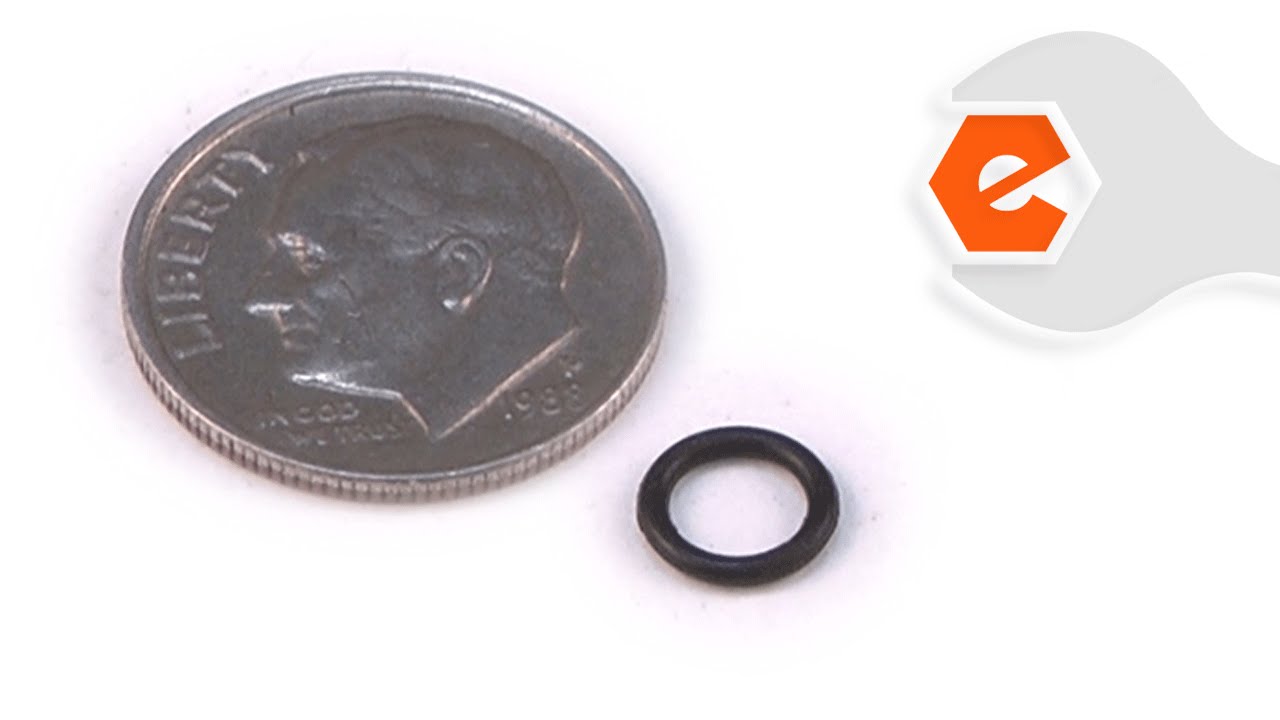

Replacing your O-ring
Replacing your O-ring

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(4 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

the pushpin that locked the wheel chuck broke

Richard from Zimmerman, Minnesota

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
took out the old parts and replaced with new
Did you find this story helpful?
Thank you for voting!

Locking pin broke

steven from Le Sueur, Minnesota

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Followed video on your website. Very helpful
Did you find this story helpful?
Thank you for voting!

Pin cap came off the pin that holds the gear while removing or installing grinding discs. The reason is that the hole Where the pin goes through the housing was warn.

William from Woodland, Washington

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
Parts Used:
417771-6, 256496-5, 213960-9
Removed the guard, then removed the 4 phillips screws from the housing. I Put a little grease on the gears. I Seated the o-ring inside the housing (seat is Inside where the pin goes through the housing) Then I put the pin in the hole (grooved end out) with a small amount of grease on the pin to hold it in place while you replace the housi ng. Once you screw the housing down, then rotate the shaft to be sure the pin is not in the locked position so that it is protruding from the hole as far as it can. Place the spring over the pin, and place the cap on, aligning the hole over the pin, then take the adjustable pliers and clamp down until the cap pops onto the pin. Reattach the guard.
Did you find this story helpful?
Thank you for voting!

DRIVEN GEAR TEETH CHIPPED

JOSH from WEST MILTON, Pennsylvania

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers, Wrench set
REMOVED 4 SCREWS HOLDING ON THE DRIVEN GEAR HOUSING AND REMOVED FROM TOOL.

CLEANED GREASE FROM GEAR.

REMOVED SNAP RING.

REMOVED DAMAGED DRIVEN GEAR AND INSTALLED NEW DRIVEN GEAR.

REINSTALLED SNAP RING.

REMOVED NOSE HOUSING.

CLEANED GREASE FROM INSIDE HOUSING AN D DRIVE GEAR

USED VICE GRIPS TO HOLD GEAR AND 10 MM WRENCH TO REMOVE NUT.

REMOVED OLD DRIVE GEAR AND INSTALLED NEW DRIVE GEAR.

REINSTALLED NUT.

USED SEMI-FLUID GREASE TO LUBE GEARS.

REINSTALLED HOUSINGS.
