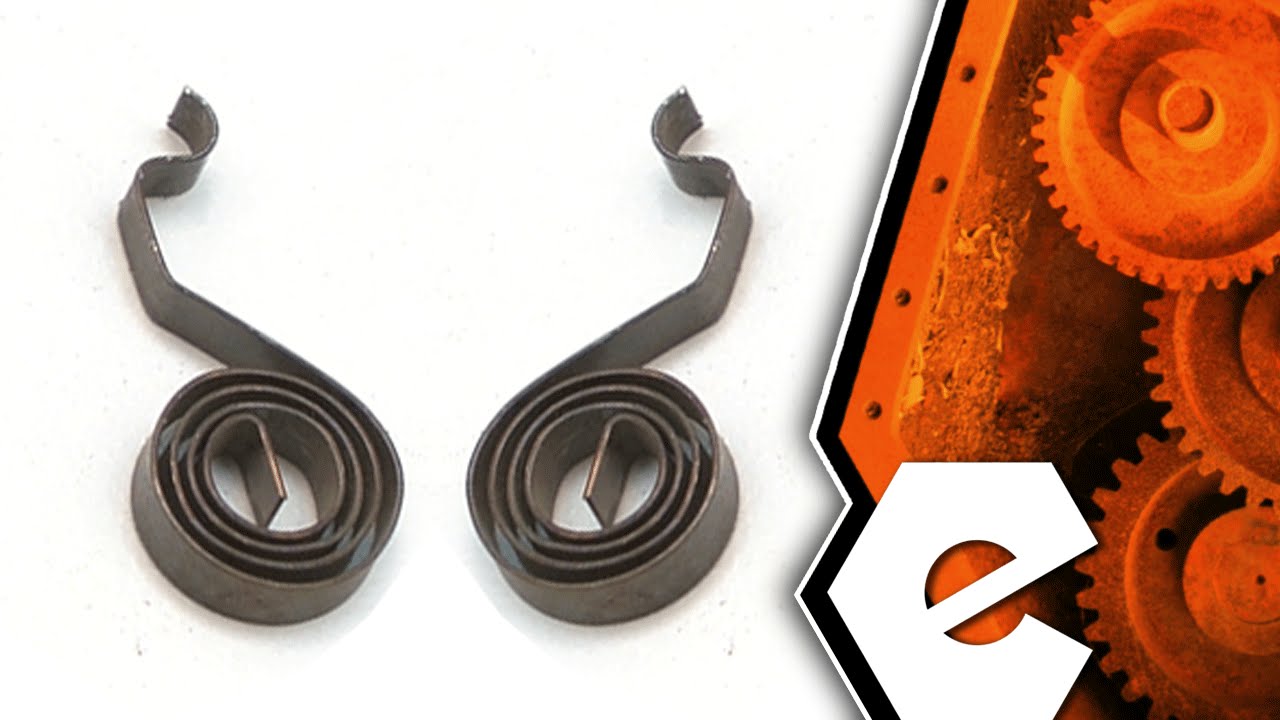

This coil type brush spring is a genuine DeWalt replacement part. This part is sold individually. As the carbon brush gradually wears away, the brush spring decompresses to keep the brush pressed against the armature in spite of the continual erosion of the brush. This ensures lasting tool performance, helping to prevent low motor power, reduced electric braking, and intermittent motor function. While brush springs aren't prone to failure, their small size makes them easy to lose while doing motor maintenance.
Removed the case
Disassembled the armature assembly
Removed and replaced the brush spring, arm and carbon brush
Reassembled the armature
Reassembled the case
Inspected and tested the unit
Remove brush wire, spring and then brush. Reverse order to install. I recommend that people who get the brushes and springs also get the brush holder. Mine still works but will order the holder and replace. The video on ereplacement parts was a great help to avoid taking more apart then I had to.
Unscrewed body and removed brushes with needle nose pliers.
Cleaned out. replaced brushes and holders and new springs.
Then reassembled body.
No special requirements just pay attention to the tear down and reverse procedure.
Note: be careful unplugging wire connections.
