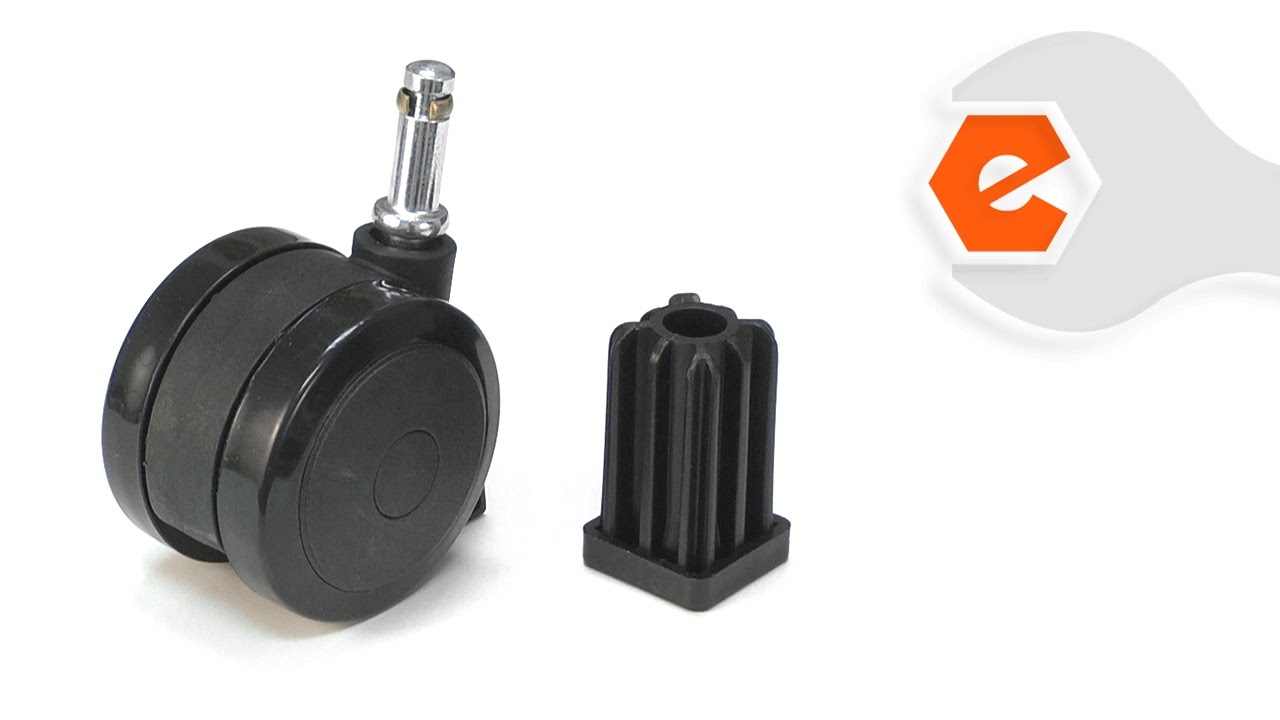

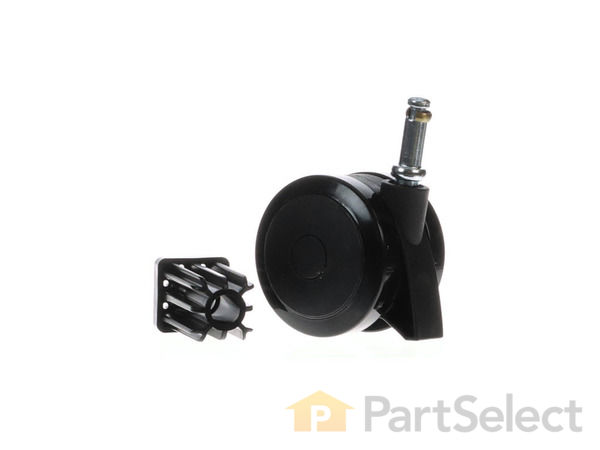

This is a genuine manufacturer sourced locking caster with insert designed for use with Weber grills. This is a plastic part with a metal shaft. This caster wheel helps you keep your unit mobile for easy transportation. Please note, this particular caster does not have a locking mechanism to keep the grill steady. No tools are needed to complete this repair, simply insert the caster in place of the old one.
The instructions say to block up the grill. However being I had everything removed from the grill ( propane tank, grate, tray, etc.) for a thorough cleaning, I just had my wife tilt the grill so that I could have access to the legs so as to replace the casters. With a rubber mallet gently hammered in the plastic inserts and then push
... Read moreed in the casters by hand pressure.
Read less
Did you find this story helpful?
Thank you for voting!
Replacing caster wheels on a outdoor Weber gas grill.
The easiest way is to lay your grill on its back, then you can easily access the caster wheels. First disconnect the propane tank and remove it from the grill. Then remove the grilles, dripping pan, and everything that might fall off when you lay it on its back.
Once it\'s laying down remove the old caster wheels by simply wiggling
... Read moreit while pulling out steady. you don\'t need any tools. They will slowly but surely come off one by one. Then just push the new caster wheels in until they snap in place. And that\'s all :).
Removed old casters and replaced them with the new ones.
First one was most difficult. Once I figured best method for removal( tap screwdriver into collar seam with hammer), the other three went quickly. Installing new ones very easy.
I REMOVED ALL PARTS FROM INSIDE OF GRILL THEN LAID GRILL ON ITS BACK.
USED A SCREW DRIVER TO EJECT THE OLD INSERT HOLDING THE CASTER.
I INSTALLED THE NEW INSERT AND TAPPED IT IN WITH A RUBBER MALLET.
I THEN SLID THE NEW CASTER INTO THE NEW INSERT. JOB DONE!
Did you find this story helpful?
Thank you for voting!
Grill is 10 years old and the rubber on the wheels was shot.
1. Follow the directions!
2. With help, and after removing the inside grills and flavorizers, we laid the grill down on an old blanket.
3. Remove the old wheels by pulling on them. Two of them came out with their plastic insert. If the insert remained, use a medium sized flat head screwdriver to pry it down so I could grab it
... Read morewith my fingers or pliers.
4. Inserted the new inserts and gently used a hammer to seat them.
5. Inserted the new wheels.
6. Lighted the grill and they worked perfectly!
Read less
Did you find this story helpful?
Thank you for voting!
Original castors were 15yrs old and started to crack
Removed the grates, drip pans, and trap. Removed the old flavorizer bars and dials. Removed the two manifold cover screws, removed the cover. Removed the manifold bolt, and pulled the manifold away. Removed the old burner tubes. Cleaned the drip areas, installed new burner tubes, reinstalled manifold, manifold cover, dials, installed new
... Read moreflavorizer bars, reinstalled grates.
Tested burners. Worked like new.
Placed one side of grill on milk crate, pulled old casters, reinstalled new, and repeated process for other side.
Read less
Did you find this story helpful?
Thank you for voting!
