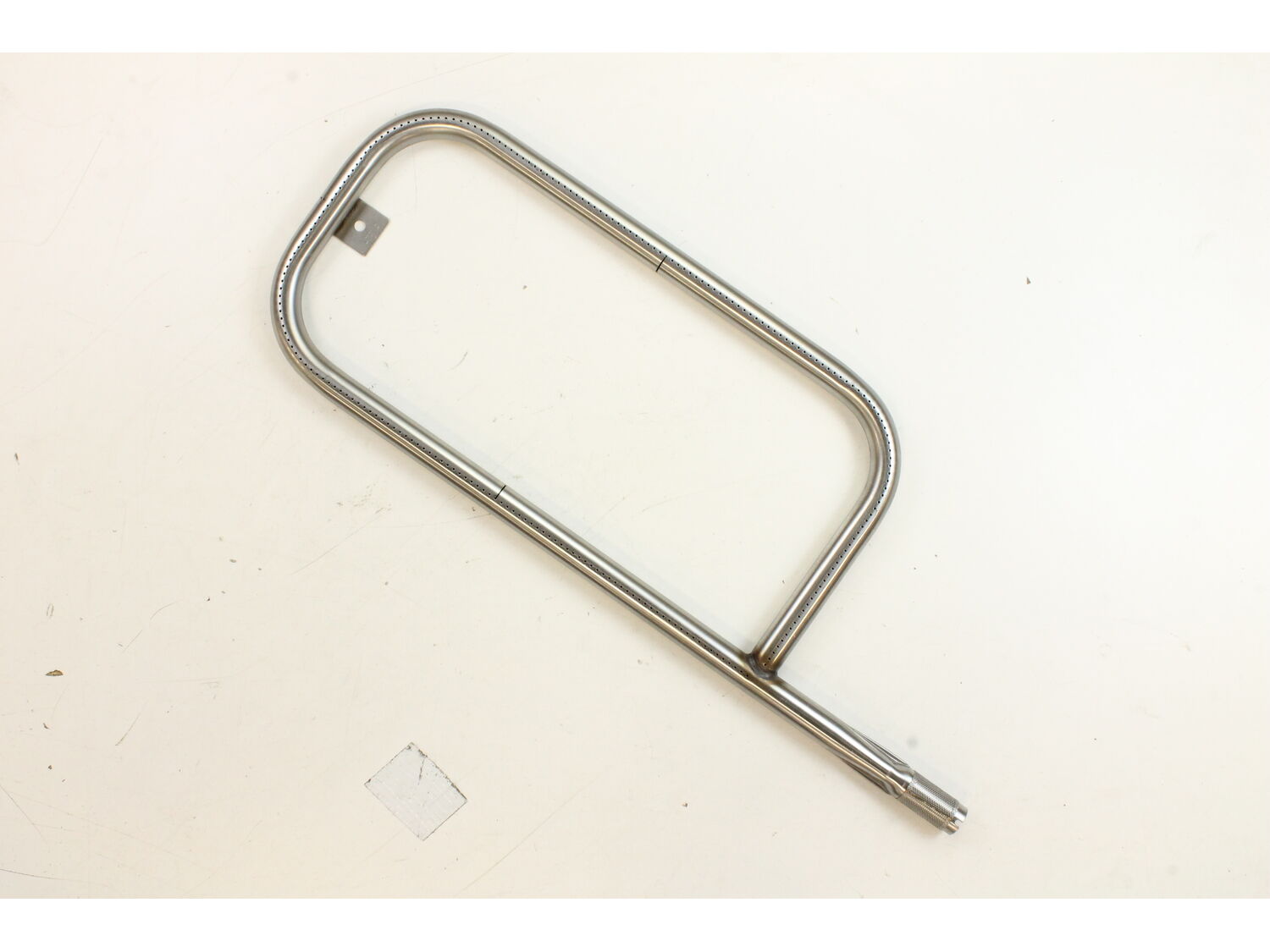

This is a genuine manufacturer sourced replacement burner tube. It is specially produced for use with Weber gas grills. Burners are connected to the control valves and it is where the flames would rise from. This burner is made out of stainless steel and it is sold individually. You would need a wrench to complete this repair • First make sure gas tank is disconnected • Remove screws securing the old burner • Disconnect old burner from control valve • Secure the new burner • Connect the gas tank and test the burners
Troubleshooting
This part works with the following brands:
Weber
This part works with the following products:
Grill
★
Customer Part Reviews
?
4.0
Average Rating (out of 5):
★★★★★
★★★★★
(6 Reviews)
Click to filter by ratings:
5 stars
4
4 stars
0
3 stars
1
2 stars
0
1 star
1
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
fast turnaround
I opened this package and it was in perfect condition. installed it with ease.
James - June 4, 2019
Verified Purchase
★★★★★
★★★★★
Quick ship, easy repair.
Simple replacement, works perfectly
Guest - August 11, 2020
Verified Purchase
★★★★★
★★★★★
Just what I needed
Parts arrived in perfect condition. Completely satisfied
Harold - October 10, 2020
Verified Purchase
★★★★★
★★★★★
Great
Works so well
Guest - March 1, 2025
Verified Purchase
★★★★★
★★★★★
Replacement Weber Burner
This is the second replacement in the last year. I don't know why these don't last longer, but the burner rusts pretty quickly and then doesn't heat very well. Not really an eReplacements issue I guess since the part is from Weber.
Easy to replace fortunately for me.
Guest - October 14, 2019
Verified Purchase
★★★★★
★★★★★
Never received
I ordered two parts. One arrived but not the burner piece. I have tried emailing twice but no response. I called and the answering message says to email.
Guest - May 31, 2020
Verified Purchase
May 31, 2020
Thank you for your review. We apologize for the inconvenience. We have emailed you in regards to this issue. We look forward to hearing from you.
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
The replacement was 2 screws that held the valve and regulator assembly to the grill, a single nut an washer that held the burner tube in place and a brass nut that held the regulator and valve assembly on the plastic housing. Easiest repair ever and this 10 year old grill is like brand new!!
1)Tried using a screwdriver, a crescent wrench, and a 12 point socket on the slotted 3/8 inch bolt securing the burner to the body of the Q220 grill; all of which damaged the bolt. Don\'t do this!
2)Sprayed Liquid wrench on the bolt and let it penetrate overnight.
3)Used a 3/8 inch nutdriver that exactly matched the bolt hexag
... Read moreon and pliers to provide torque on the handle of the nutdriver and got the bolt to move slightly. Be careful because you could shear off the bolt.
4)Applied more liquid wrench and let it penetrate.
5)Using the nutdriver,removed the bolt successfully.
6)Removed and replaced the old burner and installed a new bolt.
Read less
Did you find this story helpful?
Thank you for voting!
Burner was worn. Propane gas holes were rusted and got over sized.
1. Removed one screw that secures burner tube.
2. Rotated burner tube 90 degrees and tapped it off the starter switch with a hammer.
3. Installed the new burner tube.
Opened the screw, pulled out old tube, cleaned the grill base, inserted the new tube, replaced the screw. Took about 1 1/2 minutes.
Opened the tank valve, turned the burner knob to start, pushed the spark button and it started instantly with beautiful flame. Works like a new grill.
Did you find this story helpful?
Thank you for voting!
