11870945-1-M-Powermate-0048677SRV-Bridge Diode
Part Location Diagram of 0048677SRV Powermate Bridge Diode
See part 10B in the diagram

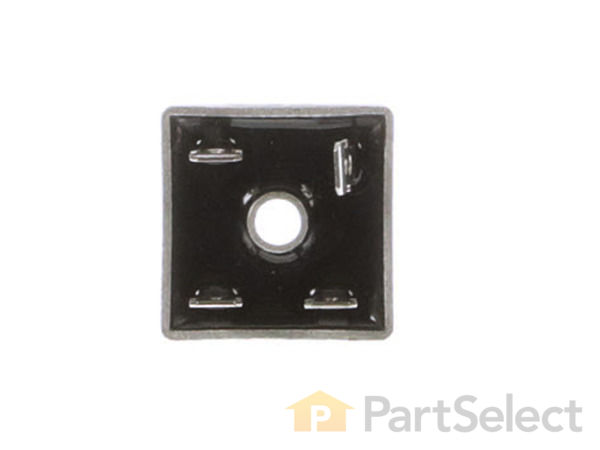

11870945-1-S-Powermate-0048677SRV-Bridge Diode 360 view
( Grid squares measure 1x1 inch )
11870945-1-S-Powermate-0048677SRV-Bridge Diode 11870945-1-S-Powermate-0048677SRV-Bridge Diode 360 view
Part Location Diagram of 0048677SRV Powermate Bridge Diode

Bridge Diode 0048677SRV

Manufactured by:
Powermate
ERP Number:
ERP11870945
Part Number:
0048677SRV
Original Equipment Manufacturer ?
$25.57
★★★★★
★★★★★
1 Review
In Stock
Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(2 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Description Troubleshooting Reviews Repair Instructions Model Cross Reference

Product Description

?

It is a genuine item that is supplied directly from the original equipment manufacturer for use with Powermate generators. This is an identical replacement for a faulty, a damaged or a missing bridge diode that was installed on a new unit. Note, this high-quality component is sold individually. A screwdriver will be needed to perform this repair. Make sure to refer to the owner's manual and the appropriate diagrams for your model to ensure the correct replacement procedure.

Troubleshooting

This part works with the following brands:
  • Powermate
This part works with the following products:
  • Generator
Part# 0048677SRV replaces these:
0048677SRV,
★

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    1
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Coleman Generator, Np Voltage
Got the Bridge Diode in very quick time. Ordering was very quick and easy. You didn't have the capacitor but I ordered the diode. Installed it and generator still had no voltage. I then saw the capacitor had a bulge in it. Since you didn't have the capacitor I ordered one from E-bay and received it in 2 days. Installed it and plugged an electric light into the generator and pulled the rope and Whammo ! I had light. Thank you for providing parts for the consumers. Would I order from you again ? Definitely yes, you are a good company to order from.
Guest - July 6, 2019
Verified Purchase

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(2 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

No voltage output from generator

Roy from SEAL BEACH, California

4 of 4 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
0048677SRV
1. Completely remove generator multi voltage receptacle panel.
2 Remove the four 14 gauge wires from Bridge Diode.
3 Remove Bridge Diode hold down nut and remove old Bridge Diode.
4 Install new Bridge Diode and reverse removal procedure.
5 Check all other wire connection before reinstalling panel.
6 Star t up generator and check voltage output from all receptacles.
7 Test all good.
Read less
Did you find this story helpful?
Thank you for voting!

generator AC output was down to approximately 10 watts.

Dale from GREYBULL, Wyoming

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Socket set, Wrench set
Parts Used:
0050439SRV, 0048677SRV
I removed the old brushes and checked for wear. They were seriously worn down. I could get nothing when checking the bridge diode for voltage resistance when checking matching wires. The rotor tested good output when I tested both copper sides. I replaced the brushes and bridge diode with new components from eReplacementParts.com. Wh en the generator face was replaced, I started it and checked the output. It was operating perfectly. This was on an old Coleman Powermate, model OHM110-222712c 6875/5500 watt generator with an 11 hp Tecumseh engine that I had purchased in about 2003 and has seen a lot of use. It appears as though I will be getting more use out of it in the future.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP11870945
Manufacturer Part Number: 0048677SRV
Brand Model Number Description
Powermate PL0545007 Generator - Generator
Powermate PL0563505 Generator - Generator
Powermate PM0401850 Generator - Generator
Powermate PM0401851 Generator - Generator
Powermate PM0401852 Generator - Generator
Powermate PM0401853 Generator - Generator
Powermate PM0401854 Generator - Generator
Powermate PM0401855 Generator - Generator
Powermate PM0401856 Generator - Generator
Powermate PM0431800 Generator - Generator
Powermate PM043180001 Generator - Generator
Powermate PM0431802 Generator - Generator
Powermate PM043180201 Generator - Generator
Powermate PM046330001 Generator - Generator
Powermate PM0463302 Generator - Generator
Powermate PM0464500 Generator - Generator
Powermate PM0473003 Generator - Generator
Powermate PM0473503 Generator - Generator
Powermate PM050562218 Generator - Generator
Powermate PM052530018 Generator - Generator
Powermate PM052530019 Generator - Generator
Powermate PM052530204 Generator - Generator
Powermate PM052530218 Generator - Generator
Powermate PM052531218 Generator - Generator
Powermate PM0525500 Generator - Generator
Powermate PM052550001 Generator - Generator
Powermate PM0535000 Generator - Generator
Powermate PM053520205 Generator - Generator
Powermate PM054500401 Generator - Generator
Powermate PM054500418 Generator - Generator
