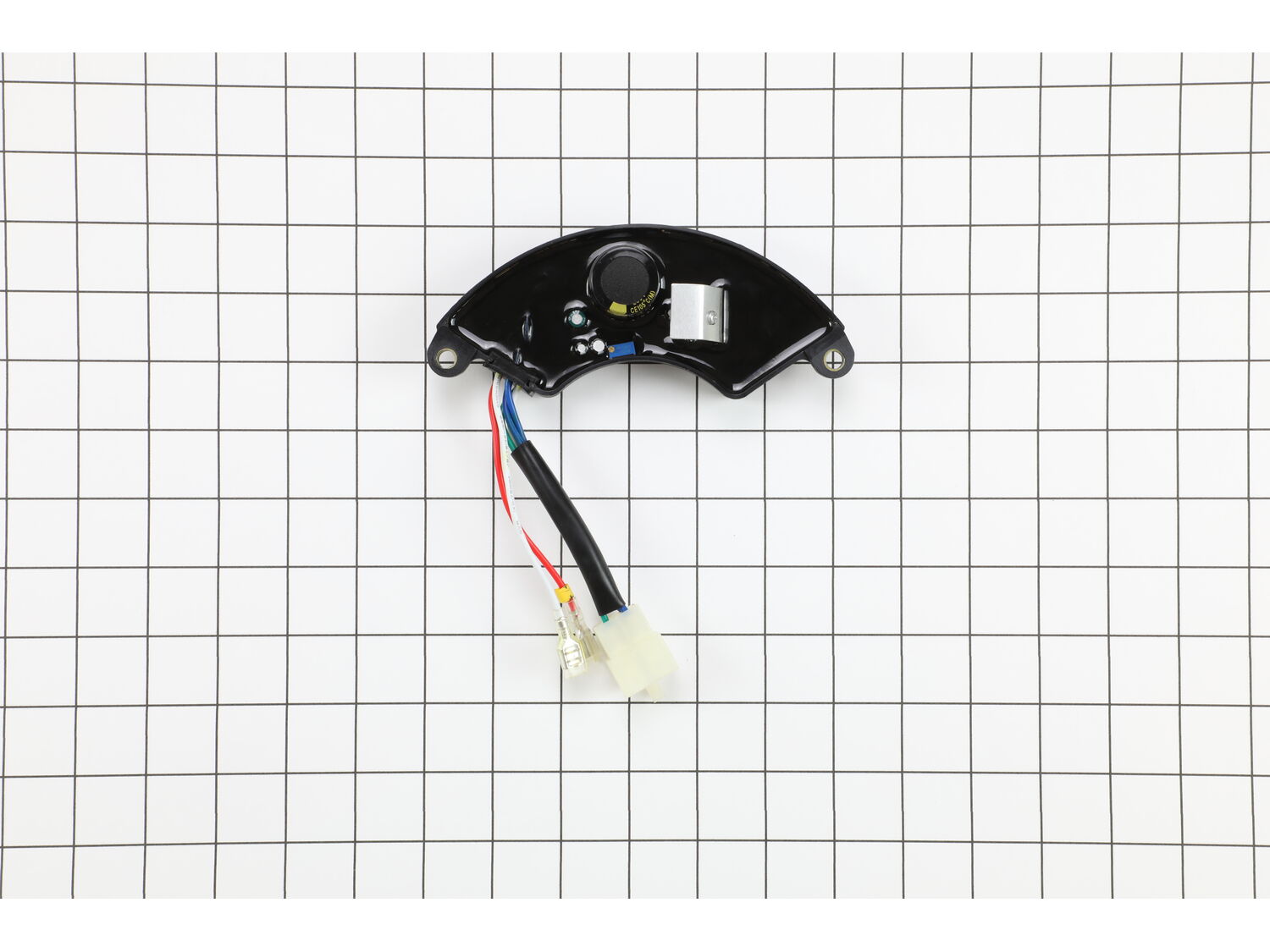

8916337-1-M-Briggs and Stratton-209420GS-Voltage Regulator
( Grid squares measure 1x1 inch )

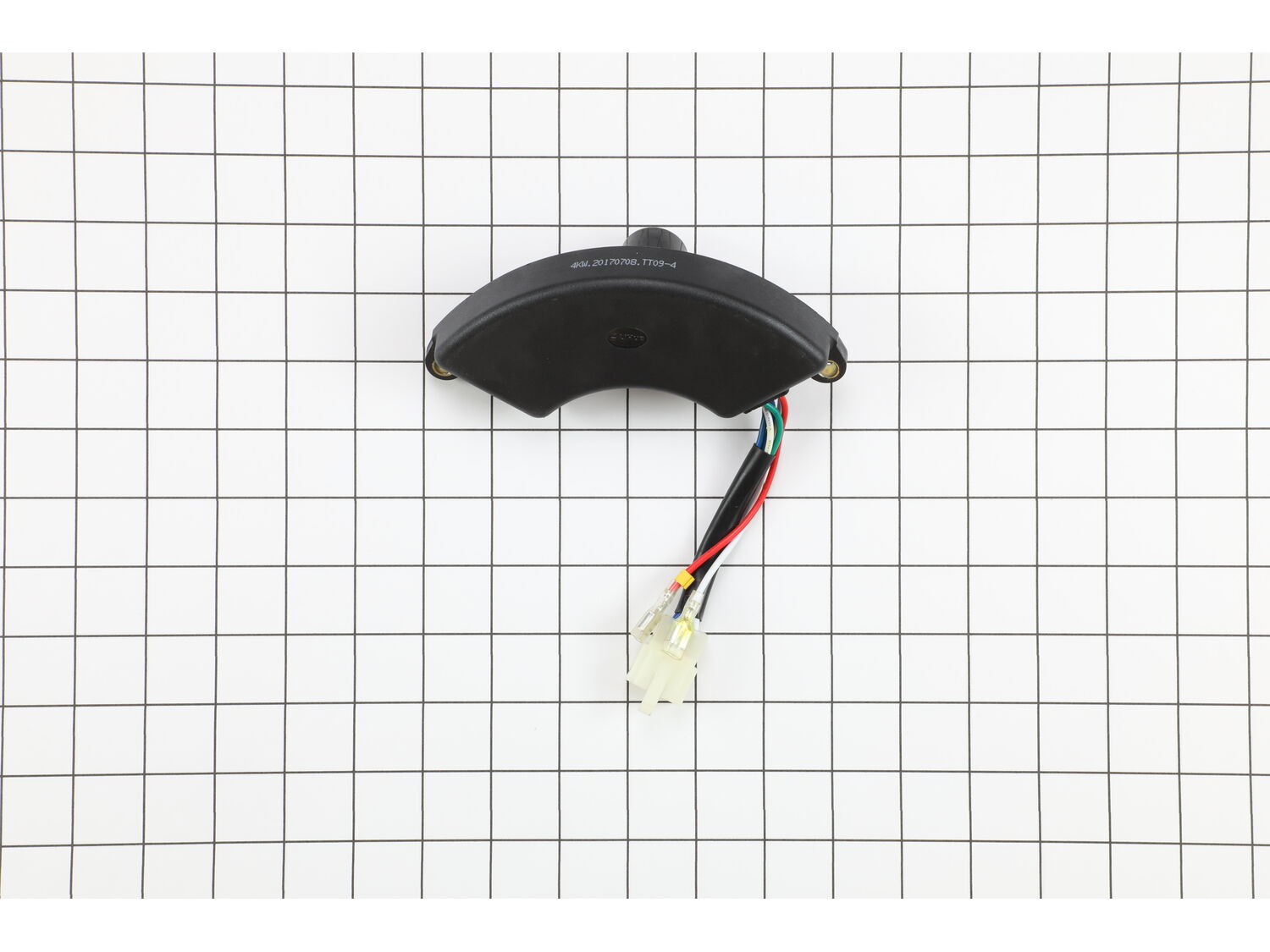

8916337-1-S-Briggs and Stratton-209420GS-Voltage Regulator 8916337-2-S-Briggs and Stratton-209420GS-Voltage Regulator

Voltage Regulator 209420GS

Manufactured by:
Briggs and Stratton
ERP Number:
ERP8916337
Part Number:
209420GS
Original Equipment Manufacturer ?
$73.31
Special Order

Easy

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Briggs and Stratton
This part works with the following products:
  • Generator

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

No electric output

James from Ormond Beach, Florida

3 of 3 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Parts Used:
209420GS
1. Remove end cover. ( 2 bolts )
2. Remove voltage regulator module ( 2 bolts ) and disconnect electrical harness connector attached to regulator.
3. Disconnect two wires that are from regulator module that are attached to motor brushes.
4. Install new voltage regulator module in reverse order.
5. Start generator and check for 120 vac power and now it works.
Very easy repair!
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP8916337
Manufacturer Part Number: 209420GS
Brand Model Number Description
Briggs and Stratton 030430-2 Generator - Briggs & Stratton Generator Model 030430-2 (0304302, 030430 2) Parts
Briggs and Stratton 030438-0 Generator - 030438-0 - 3,750 Watt Husky
Briggs and Stratton 030466-0 Generator - Briggs & Stratton Generator Model 030466-0 (0304660, 030466 0) Parts
Briggs and Stratton 030466-00 Generator - Briggs & Stratton Generator Model 030466-00 (03046600, 030466 00) Parts
Briggs and Stratton 030466-01 Generator - Briggs & Stratton Generator Model 030466-01 (03046601, 030466 01) Parts
Briggs and Stratton 030466-02 Generator - Briggs & Stratton Generator Model 030466-02 (03046602, 030466 02) Parts
Briggs and Stratton 030466-03 Generator - Briggs & Stratton Generator Model 030466-03 (03046603, 030466 03) Parts
Briggs and Stratton 030486-0 Generator - Briggs & Stratton Generator Model 030486-0 (0304860, 030486 0) Parts
Briggs and Stratton 030547-00 Generator - Briggs & Stratton Generator Model 030547-00 (03054700, 030547 00) Parts
Briggs and Stratton 030547-01 Generator - Briggs & Stratton Generator Model 030547-01 (03054701, 030547 01) Parts
Briggs and Stratton 030550-00 Generator - Briggs & Stratton Generator Model 030550-00 (03055000, 030550 00) Parts
Briggs and Stratton 030550-01 Generator - Briggs & Stratton Generator Model 030550-01 (03055001, 030550 01) Parts
Briggs and Stratton 030550-02 Generator - Briggs & Stratton Generator Model 030550-02 (03055002, 030550 02) Parts
Briggs and Stratton 030617-00 Generator - Briggs & Stratton Generator Model 030617-00 (03061700, 030617 00) Parts
Briggs and Stratton 030617-01 Generator - Briggs & Stratton Generator Model 030617-01 (03061701, 030617 01) Parts
Briggs and Stratton 030623-00 Generator - Briggs & Stratton Generator Model 030623-00 (03062300, 030623 00) Parts
Briggs and Stratton 030661-00 Generator - Briggs & Stratton Generator Model 030661-00 (03066100, 030661 00) Parts
Briggs and Stratton 030661-01 Generator - Briggs & Stratton Generator Model 030661-01 (03066101, 030661 01) Parts
Briggs and Stratton 038025-00 Generator - Briggs & Stratton Generator Model 038025-00 (03802500, 038025 00) Parts
Briggs and Stratton 304660 Generator - Portable Generator
Voltage Regulator
$ 73.31
Special Order
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
