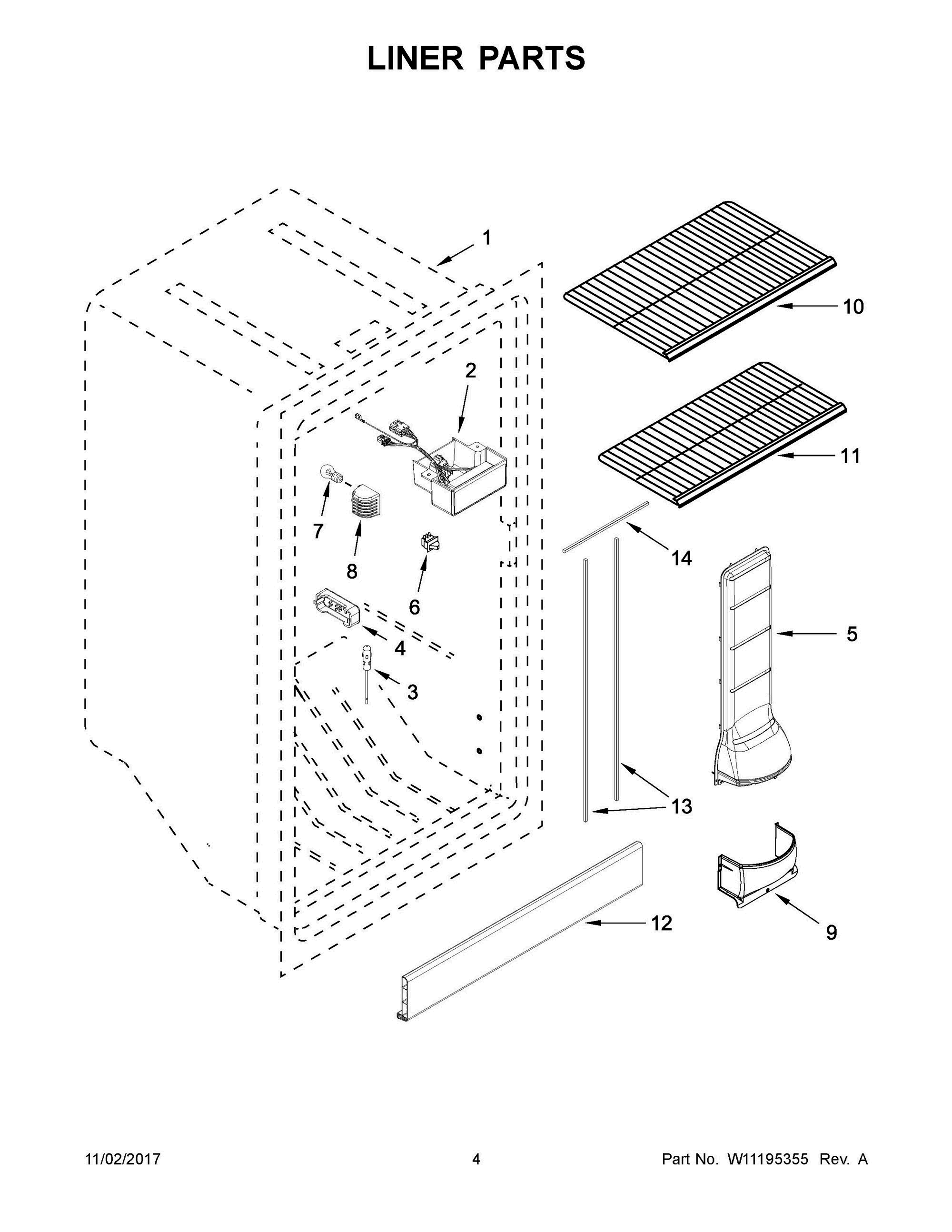

Part Location Diagram of W11496870 Whirlpool CONTRL-BOX
See part 2 in the diagram
( Grid squares measure 1x1 inch )

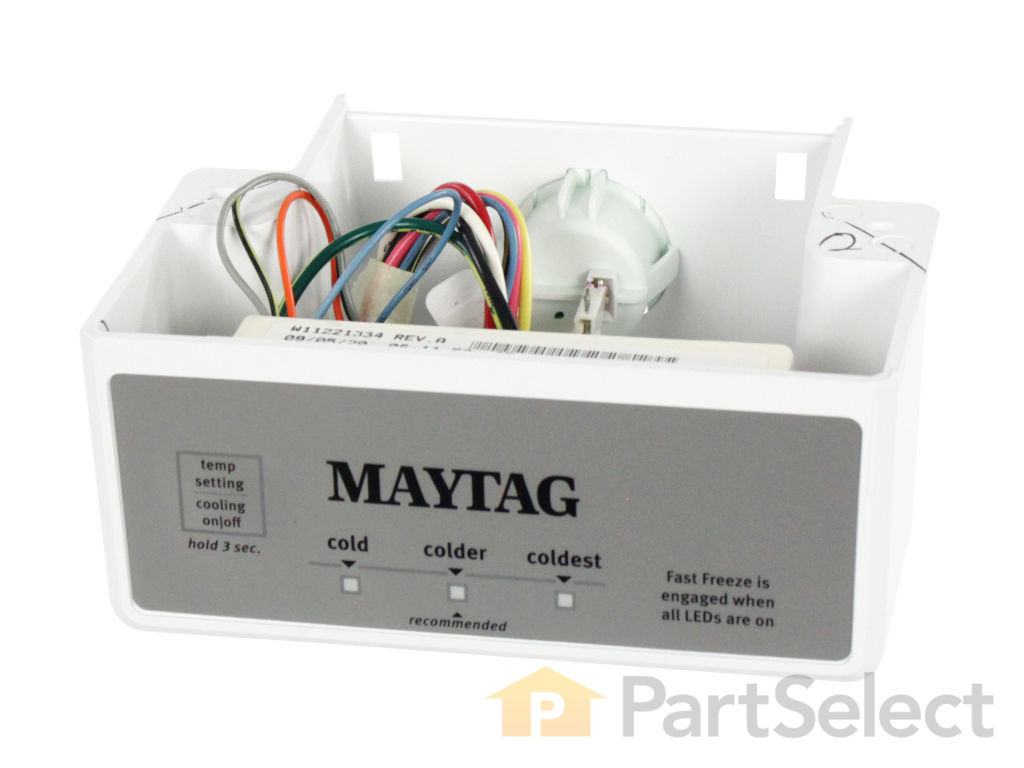

CONTRL-BOX W11496870

Manufactured by:
Whirlpool
ERP Number:
ERP16620025
Part Number:
W11496870
Original Equipment Manufacturer ?
$106.21
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Product Description

?

This control box houses and protects internal electronic components and wiring. Its design supports organized connections while helping safeguard sensitive controls from damage.

Troubleshooting

This part works with the following brands:
  • Whirlpool
  • Maytag
This part works with the following products:
  • Freezer
  • Refrigerator
Part# W11496870 replaces these:
W11130827, W11199714, W11221334, W11253271, W11396157,

Model Cross Reference

This part works with the following models:
ERP Number: ERP16620025
Manufacturer Part Number: W11496870
Brand Model Number Description
Maytag MZF34X16DW04 Freezer
Whirlpool MZF34X16DW06 Refrigerator - Refrigerator
Whirlpool MZF34X18FW02 Freezer
Maytag MZF34X18FW03 Freezer
Whirlpool MZF34X18FW04 Refrigerator - Refrigerator
