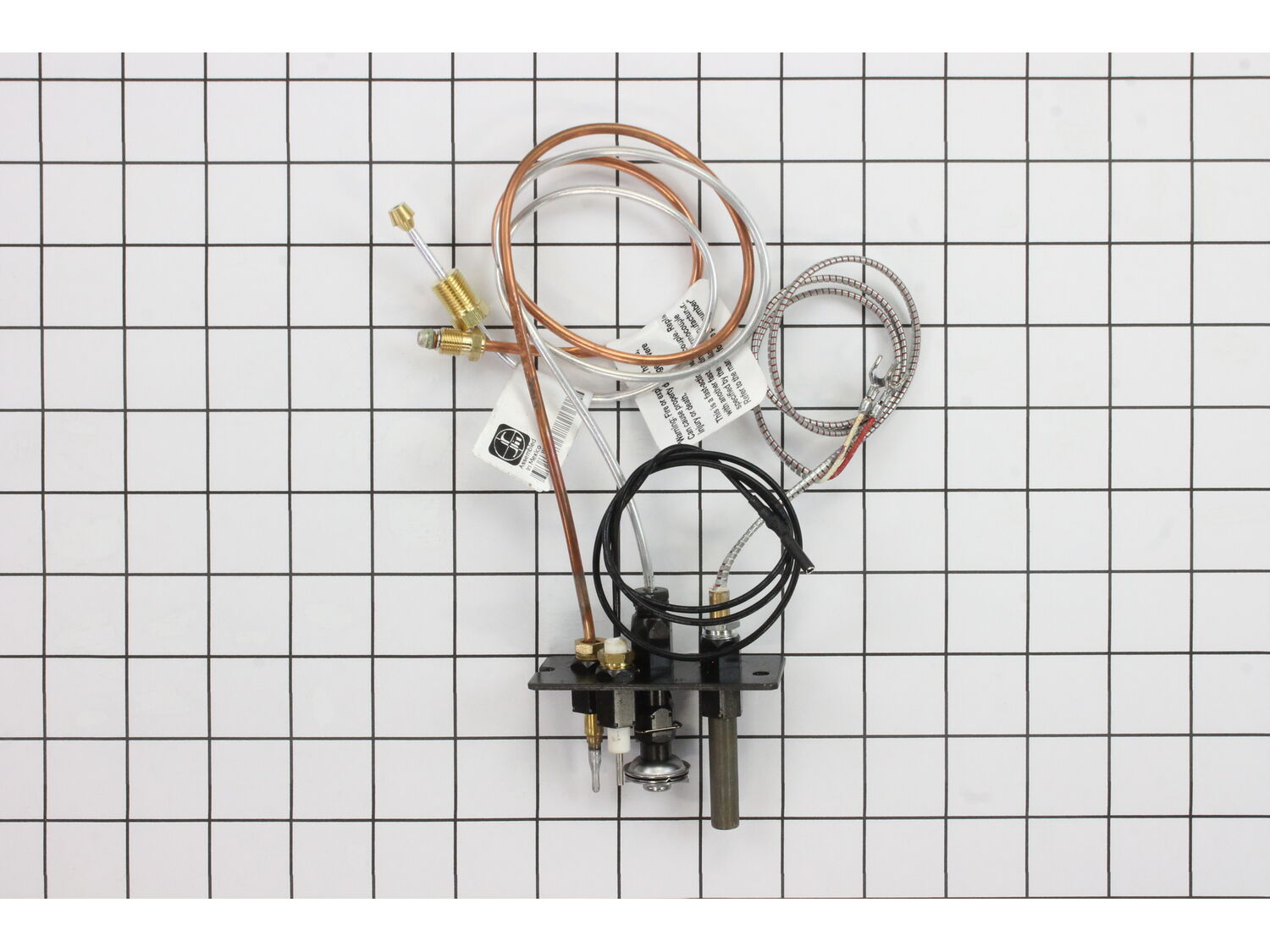

It is an authentic OEM sourced item which is specially produced for use with Majestic and Monessen gas fireplaces. The natural gas pilot assembly may become broken and will need to be replaced. During the installation process, a screwdriver, a set of pliers, a wrench set, and wire cutters might all be needed to replace this part. This is available as an individual replacement part.
Troubleshooting
This part works with the following brands:
Majestic
Monessen
This part works with the following products:
Fireplace & Insert
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(2 Reviews)
Click to filter by ratings:
5 stars
2
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked as expected
The replacement part fit perfectly and worked flawlessly.
Guest - February 6, 2021
Verified Purchase
★★★★★
★★★★★
Great parts, Great prices!! =ƒÿè. Thank you all so very much. Wishing you all a very happy, safe holiday season=ƒÿè=ƒÿè=ƒÿè=ƒÿè=ƒÿè.
Great parts and great prices!! =ƒÿè
Anonymous - November 24, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Cut wires and gas line to old pilot assembly.
2. Remove old pilot.
3. Insert new pilot assembly.
4. Remove ignitor, unplug old wire, plug in new wire.
5. Remove old gas line, install new gas line.
6. Remove old thermocouple connection, install new connection.
7. Remove old thermopile wires, install n
... Read moreew wires paying attention to wire colors.
8. Seal holes in firebox floor with high temperature sealant. Allow 24 hours for sealant to cure.
9. Ignite pilot and adjust flame size.
10. Light fireplace to test system.
Have to remove the glass cover, logs, grate and burner. The pilot assy has RTV silicone on around the whole for the tubes/wires. Make sure you have some high heat red or copper RTV silicon sealant before hand. Get it at a local auto parts store.
Turn off the gas, remove the front control panel...like the louvers....lifts off tan
... Read moregs. NOTE: notice the wire colors n locations...take pic with phone. Disconnect the 2-tubes, 3 wires, 2 screws holding the assy in in the firebox. NOTE: the holes which items feed through into the firebox (pic). Since you are replacing them, just use wire cutters n cut the ends off...easier to pullout. Then you can remove the old RTV sealant. NOTE: Careful bending the tubes...they are fragile....if you crimp them, they are no good. Install the new assy feeding the tubes and wire through the same holes. Screw the assy in place. Now you see why you have the burner removed.....so you can reapply RTV sealant. NOTE: If you have some nitrile disposable gloves they are nice for this....so you do not have sealant all over your hands....hard to get off. Connect everything back together as your pics show. Test the unit before replacing the logs or grate. Then finish reassembly.
1. Turn off gas to unit,
2 Took picture of the wires and orientation of the pilot assembly
3. Remove the front panel, glass, logs, rock wool and lava rock (I put in new rock wool and lava rock).
4. Cut the lines and wires made it easier to remove assembly
5. I wore mechanic gloves and long sleeve shirt when remov
... Read moreing and installing the assembly.
6. Also I used high temp caulk to replace the caulk the I removed, available at the Auto Parts store
(wear nitrite gloves when reapplying) let dry for 24hrs
7. Reinstalled, made all connections, tested gas line with soapy water for leaks.
8. Fired unit up and is working fine.
Note: On my unit their are numerous sheet metal screws with sharp points that will cut you, that is why the gloves and shirt.
Read less
Did you find this story helpful?
Thank you for voting!
Pilot was definitely bad , replaced gas valve because it seemed slow in lighting and did not want to get into again if old did not work properly
Removed pilot and gas valve and basically reversed process to replace. Gas valve had to be put on a vice to get last nut off. It works now. you need patience and correct tools.
