Part Location Diagram of 316046780 Metabo Carbon Brush
See part 0036 in the diagram
( Grid squares measure 1x1 inch )

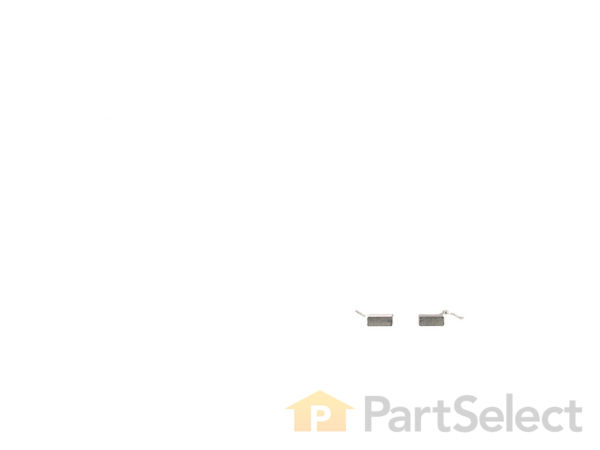

Carbon Brush 316046780

Manufactured by:
Metabo
ERP Number:
ERP10416484
Part Number:
316046780
Original Equipment Manufacturer ?
$23.68
In Stock
Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

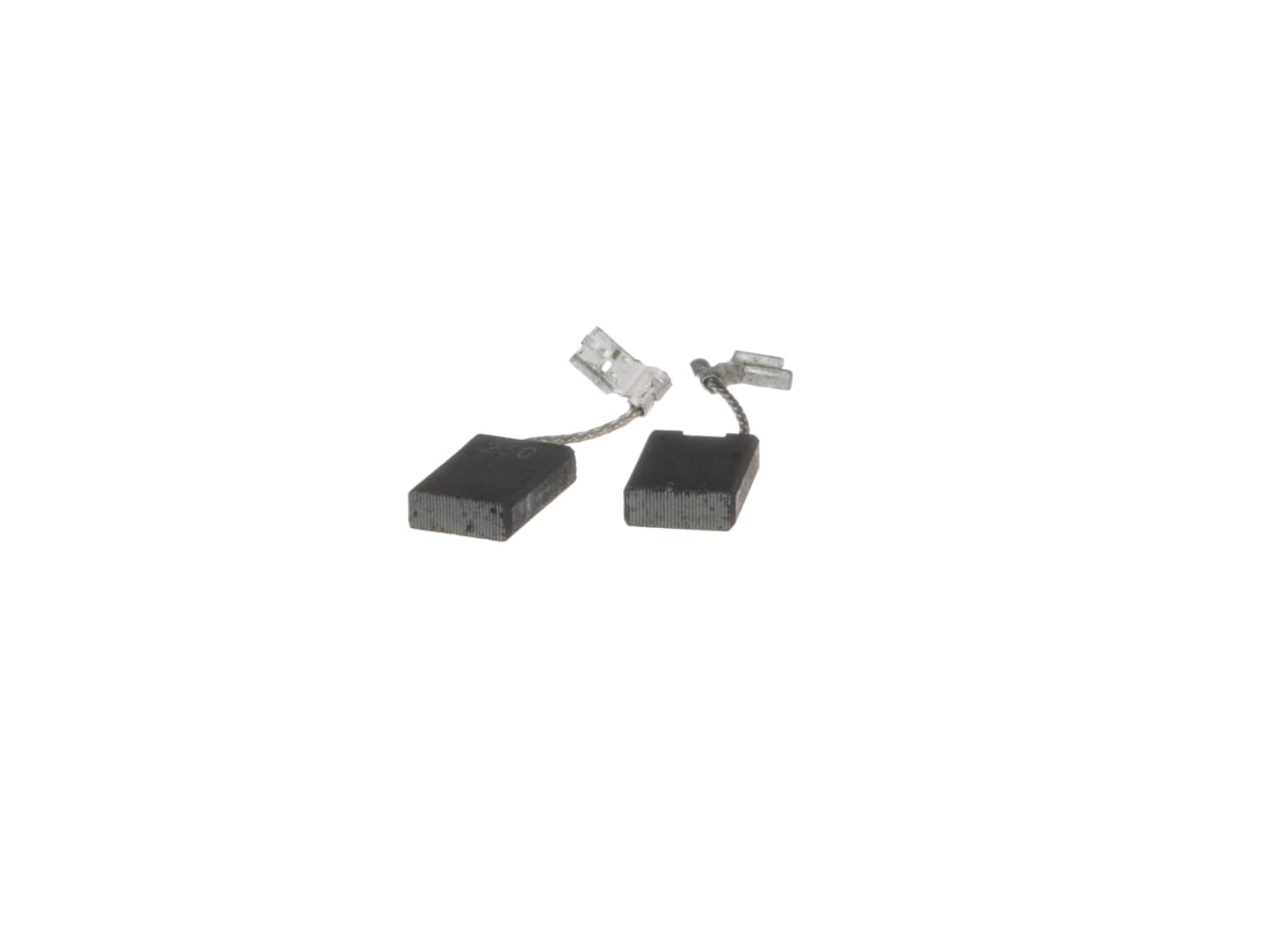

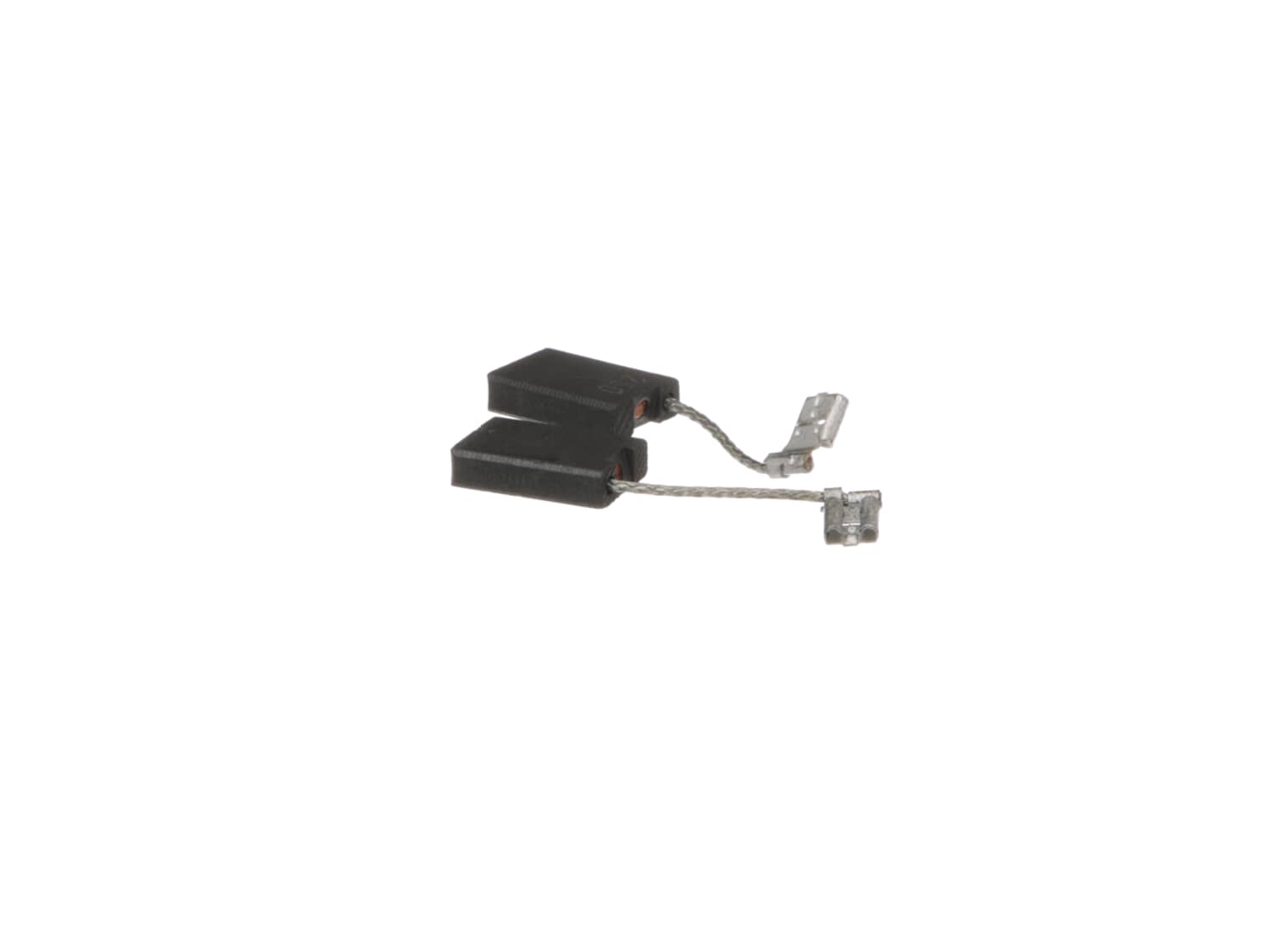

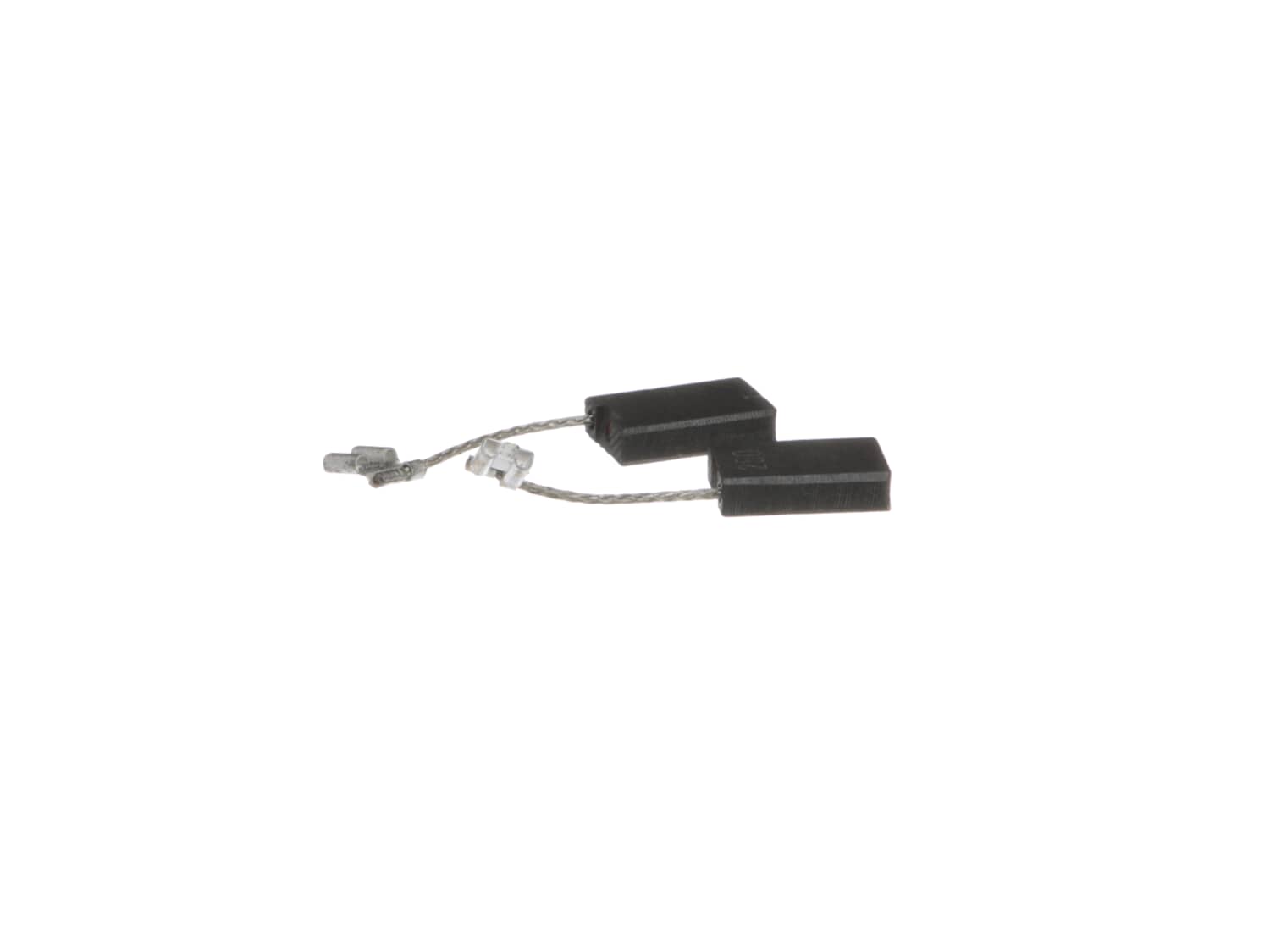

This is a genuine Metabo replacement part used on Specific Angle Grinders. It is sold as a set Two (2). Worn brushes frequently are the cause behind a motor running poorly. Replacing brushes can fix a motor that's operating intermittently. New brushes can restore a motor's electric braking. Carbon brushes are one of the most commonly replaced power tool parts. This is because carbon brushes are wear items, meaning that through friction and use they will gradually wear away until they need replacing. Worn brushes are a common causes of intermittent motor function, reduced electric braking and reduced motor power. A worn-out brush will often be worn down near to the wire lead and can be cracked, pitted, or burned. When replacing carbon brushes, be sure to inspect your armature for burns, cracks, or other damage which can indicate larger motor problems.

Troubleshooting

Part# 316046780 replaces these:
316046780,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Grinder quit working after many hours of use.

Ronald from Batesville, Mississippi

2 of 2 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
316046780
Open door on side of handle retained by 1 small phillips screw. Brushes are visible. Unplug brushes and remove old brushes, insert and plug in new brushes. Very simple to do. Very happy on this easy repair. $13 part 10 minutes work vs $200+ replacement... no brainer!
