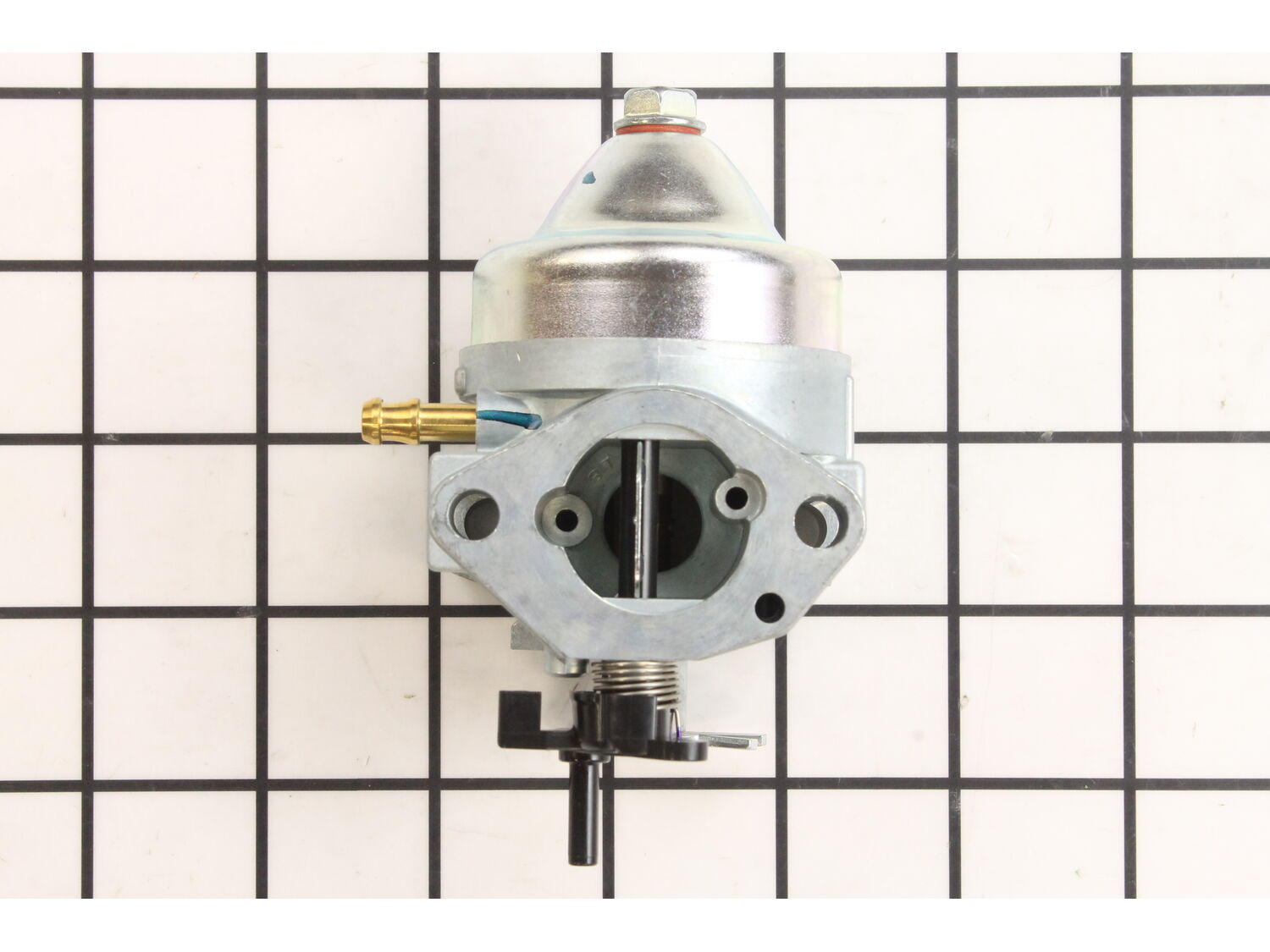

This genuine OEM sourced replacement part designed for use with lawn and garden equipment engines. The purpose of a carburetor is to mix air and gas before the fuel mix goes to the engine. If the engine won\'t start and the tank is full of fresh fuel, test the carburetor by removing the air filter and pouring about a teaspoon of fuel into the carburetor. Pull the starter rope. If the engine starts and then quickly dies, the carburetor is likely the problem. When replacing carburetor it is advised that you also replace carburetor gaskets to ensure proper air tight seal for optimum performance. You will need a screwdriver to perform this repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
good carb. no gaskets included. my mistake.
awaiting gaskets. looks good otherwise
Michael - May 21, 2019
Verified Purchase
★★★★★
★★★★★
Simple and easy to ID part and order!
I have book marked this sight for future needs, simple easy use and ease of finding my part needed! Thanks!
Guest - June 3, 2019
Verified Purchase
★★★★★
★★★★★
Repair worked fine.
The part was damaged in shipping and was replaced without issue.When the replaced part arrived undamaged it installed easy and worked just fine.Thank You.
Guest - June 14, 2019
Verified Purchase
★★★★★
★★★★★
Excellent group of parts
I ordered this carburetor for my 160 GVC lawn mower with the assorted gaskets needed for full replacement. My order arrived within a few days and was complete with no issues. You did not list the exact model number for my engine but this was a general replacement. It was slightly different from my original but still worked as expected with no complications except for re-inserting the main bolts and replacing the parts in correct order, no real problem just nit picking. I watched a video for this motor and had no problems doing the work, just make sure you pay close attention to their original orientation and the correct gasket in the correct order. I also ordered an air filter main body and apparently selected the wrong one, however with a minor modification no problem with it working. Overall very satisfied with my order and response.
Garnett - August 13, 2019
Verified Purchase
★★★★★
★★★★★
Inexpensive Cure for an Annoying Problem
My lawnmower engine started suffering from a surging problem (repetitive speed increasing and decreasing). I viewed some YouTube videos that said the carburetor needed to be cleaned. I attempted this without success. Then I found that eReplacementParts had an entirely new carburetor for only 16 bucks! Now the engine works just fine!
Guest - September 7, 2019
Verified Purchase
★★★★★
★★★★★
Excelkent seevice
It arrived in great condition.
Guest - April 16, 2020
Verified Purchase
★★★★★
★★★★★
grass catcher bag
Great condition and fit perfectly.
Guest - July 17, 2020
Verified Purchase
★★★★★
★★★★★
Easy Replacement
Replaced carburetor on older Honda lawn mower with very little experience, thanks for the video.
Guest - April 15, 2021
Verified Purchase
★★★★★
★★★★★
Surging engin fix
The carburetor was a bolt on fix. So far it is working fine. Don’t forget to buy the gaskets you need
Guest - December 22, 2021
Verified Purchase
★★★★★
★★★★★
Amazing, worked perfectly
My lawnmower is running great again, carburetor was easy to install
Guest - June 21, 2022
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I removed the original carburetor, disassembled it, and cleaned it up. There are no idle nor speed adjustment screws. I put the carburetor back on the engine and may not have reinstalled the gaskets, space, and air baffle in the correct order. I found a new carburetor on the internet and ordered it. When it arrived, I finally had a go
... Read moreod day to install it. I had incorrectly installed the proper sequence of gaskets, spacer, and air baffle. For this particular Honda small engine, the proper sequence of reinstalling gaskets, spacer, air baffle are as follows: gasket on intake port of engine, spacer with the inside chamfer toward intake port, gasket, air baffle, gasket, carburetor with linkage and spring attached, gasket to air cleaner. This is all held in place with two large 10mm bolts into the engine. Put air filter in air cleaner, and gas in the gas tank, and pulled the starter rope. The engine runs fine and cuts the grass. Thanks for such a good price on the new carburetor.

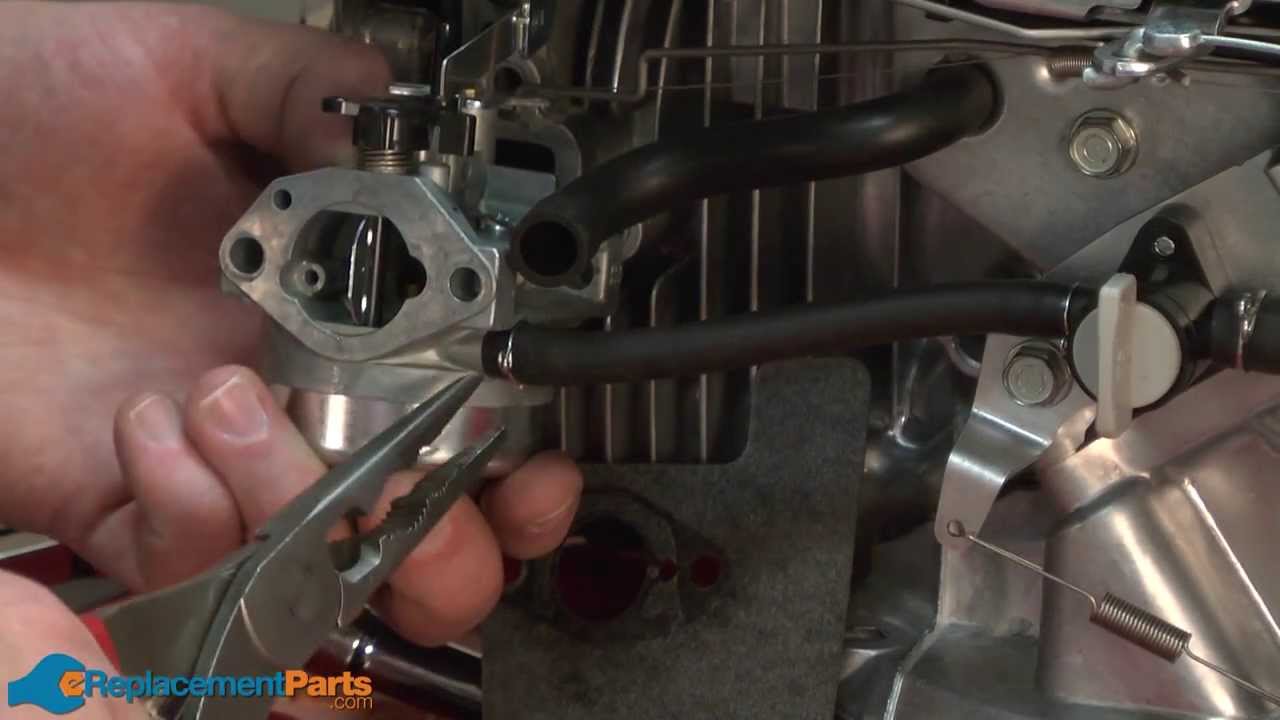

I watched the you tube video on replacing a Honda carburetor. After I watch it, I was able to replace all of the other parts that I had ordered. Here is a copy of the video that was so helpful to me. Enjoy. https://www.youtube.com/watch?v=D32zXNYSxmw
1. Turn off gasolineGÇï stopcock and remove gas line from carburetor.
2. Remove air filter.
3. Remove two bolts behind air cleaner, taking care to keep all 10 or so layers of the carburetor held together with one hand while removing bolts with the other. Note or photograph the orientation of throttle and choke controls on
... Read morethe carburetor as you remove them.
4. Unstack the various layers of carburetor and gaskets, taking video or snap shots along the way to remember order and orientation.
5. Substitute new carburetor with old carburetor and resemble in reverse order as before.
Be careful to reassemble throttle cable if it needed to be removed along the way to disassembly. Watch especially for orientation of choke valve to choke switch as you reassemble.
Read less
Did you find this story helpful?
Thank you for voting!
Carburetor was plugged and cleaning it out didn\'t help.
Removed air filter outer cover and air filter.
Pinched off fuel line from tank.
Drain carburetor and remove fuel line.
Remove 3 mount bolts and wiggle out support rods
Clean gasket surfaces
Install new parts
Reconnect everything
Start unit first pull
I watched the video that was on the web site for this project. The video stayed very small and hard to see but I found the same one on YouTube and it made it all clear and easy to do.
Would have been helpful to know the bolts were metric but not a big deal I guess unless you don\'t have a metric set of sockets. I believe it is a 10m
... Read morem
Really glad I did it myself. It save my a couple of hundred dollars plus it feels good to do it yourself.
First I took a pic so I wouldn\'t get things confused when putting things back together. Then I took off the old carburetor keeping up with all washers, then I followed my pic diagram and put the new carburetor on used starter fluid to get things going and it\'s been running like new!
Engine
- Honda Small Engine Model GCV160LAS3A Parts
✖
