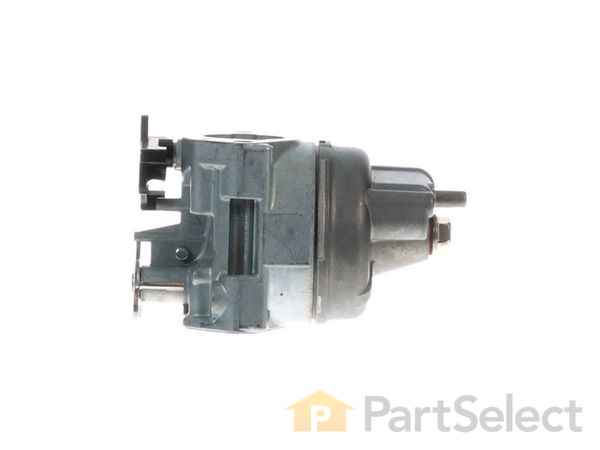

This carburetor is for lawn and garden equipment engines.
Carburetor mixes air and gas before the fuel mix goes to the engine.
Wear work gloves to protect your hands and work in a well-ventilated area during this repair.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
great part
this arrived very fast and in good shape.
Guest - April 30, 2019
Verified Purchase
★★★★★
★★★★★
Great!
Perfect fit, works great, shipping very good!
Colleen - September 4, 2019
Verified Purchase
★★★★★
★★★★★
easy fix
With the help of the companies staff they were able to determine which carburetor was need for my 2002 Honda GC160 pressure washer engine. Installed easily and after about three pulls, it was running like new. Thanks to the staff for the help!
Guest - September 24, 2019
Verified Purchase
★★★★★
★★★★★
easy fix, works good as new.
received my order quickly, and now my rotor tiller works just like new
Guest - April 20, 2020
Verified Purchase
★★★★★
★★★★★
Easy replacement
Part worked great
Guest - May 7, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
My Honda GC160 5hp for my pressure washer was left outside under a deck all winter.
When I went to start it , it took a while, but once stared would only run whit the choke on, as soon as I pushed the choke back in , it would die. Main Carb circuit/jet plugged, or gas problem from sitting all winter. I pulled the fuel bowl, a littl
... Read moree gunk in it , cleaned, flushed, air pressure dried, reassembled. Still same problem ! I did this 4 times, even unscrewing and blowing out the main jet with compressed air from my compressor. Still the same !!! a little better ,It would run until the choke was 1/2 way back in. BUT , still not good enough for pressure washing. So I did a search ,I found others had this problem, they changed the carburetor and problem gone. So I then ordered the carburetor , and gaskets and plastic insulator form ereplacements. Good Price ! Quick Shipping !
Once it arrived I pulled the parts out , well wrapped, No bent gaskets !!! , You will have to remove the fuel tank, drain it into a container, not into the gravel or drive and have it run down the sewer. I then replaced the carburetor on the motor, making sure to replace the gaskets, all it takes is a 10mm socket and a long screwdriver to hold the Plastic Insulator and gaskets in place, as you install the bolts that hold it all together. it took about 20 minutes for me, but like I said I had done it 4 times the week before. After it was installed it started on the 5th pull and has been a 1 or 2 pull motor ever since. Don\'t mess around trying to clean the old carb, the passages are just too small, The price and quality of the new was great.
Hats off to you guys ! Thank You
RJH
After purchasing a new pump for my old Honda Excell pressure washer, I was bummed to find out that my carb had apparently fouled/gummed over the winter. I spent a few hours and bucks on trying to clean the carb, but to no avail. After testing the fuel pump to see if was functioning perfectly I was very pleased to see that for only $28 I c
... Read moreould get the carb, gaskets, and a new air cleaner from here!! Having already taken the old carb on/off a few times I was plenty familiar with the myriad of items that have to be held up and go through two bolts for this engine/carb setup. After 4-5 pulls(cause the fuel bowl was dry), the engine started right up. I was finally able to pressure wash my driveway this past weekend and the engine fired on the first pull and ran for 7 hours without fault. Love the great price for parts, and fast shipping here, and will certainly return if anything else should fail on my small engines!!
Read less
Did you find this story helpful?
Thank you for voting!
Engine submerged under water from hurricane. Water in oil.
Drain water from fuel and oil system. Remove all items to access and remove carburetor. Replace with new carburetor, gaskets, hoses etc.
Flush oil system with mineral spirits or other solvent. Compressed air to flush out fumes . May have to change oil 4x before oil starts to loose \"milky\" appearance.
The carburetor on my 10+ year old tiller finally stopped working correctly. I took the old one off and put the new one on. It wasn\'t as hard as I\'d envisioned. I had my husband check my work when he came home as I\'d never done this before. It took a few pulls and my old tiller works great. Actually, it hasn\'t run that smoothly in
... Read more a good many years.
Even for a total newbie like me there really aren\'t any special instructions. I just took everything off that I needed to while noting their position and how they were in there in the first place. Then replaced the parts and put it back together. The nice thing is that the only socket I needed was a 10mm. There were two short screws and two very long bolts holding it on and that\'s all. Really not a bad repair. I think my time is higher because it was my first ever engine repair. It would probably take a person who knows what they are doing far less time.
This repair was performed on a pressure washer with a Honda motor. This model has no fuel filter so some dirt had gotten in the carb, and the governor spring was damaged. Also the mixture adjustment screw was damaged on the carb. I see a kit is available to install a filter, may do that next. For the price of a complete carb ($20) no reas
... Read moreon to mess with fixing the old one. Remove the gas tank, 3 bolts, then the air filter and carb. two bolts. Hardest part is getting the linkage assembled before re-assembly of the carb/air cleaner. Pretty easy.
Read less
Did you find this story helpful?
Thank you for voting!
XR2625 Pressure washer hasn\'t run for 2 years. Left untreated gas in it. OOPS!
1. Removed air cleaner assembly.
2. Disconnected carburetor linkage.
3. Removed carburetor.
4. Installed new carburetor and gasket.
5. Changed engine oil.
6. Installed new spark plug.
7. Blew out nearly new air cleaner element.
8. Filled gas tank with Stabil treated gasoline.
9. Started e
... Read morengine (took a few pulls) and was very surprised at how strong the engine ran.
I don\'t think this guy has run this well even when new. It now starts on the first pull! I use a 15\" surface cleaner in addition to the wand that didn\'t work very well either, but now it does a great job! So well, in fact, that my wife & I spent 10 hours over the week-end cleaning all of the concrete around our house as well as anything else that got in the way! (Pots, planters, lawn furniture, walls, motorcycle, lawn mower, edger, mailbox, trailer, wheel barrows, trash cans, neighbor\'s wife, etc) What a pleasure to have this 2005 power washer run so well!
1. Removed two 10mm bolts.
2. Removed the air cleaner, the fuel hose, the throttle and the choke linkage as well as the tension spring.
3. Installed the new carburetor and the fuel pump.
4. Installed the linkage, the spring, the fuel hoses and the bolts.
5. Started the engine and made a small adjustment on the air/
... Read morefuel mixture screw.
Read less
Did you find this story helpful?
Thank you for voting!
Xc2600 pressure washer would not start; had sat with gas in it
Tried cleaning original gummed-up carb. Still wouldn\'t start.
Ordered/installed replacement carb and gaskets for the Honda engine.
Started up after a few pulls. Just washed down front bricks. Worked fine!
Tip: printed off copies of the parts diagrams to help with getting all the parts re-installed.
1. I took the 2 long bolts out that held the air filter and Cab to the engine body.
2. Removed the springs attached to the throttle.
3. Removed the choke adjuster.
4. removed the gas line from carb. I had run the gas out of the engine, so it didn\'t leak.
5. Removed old Carb.
6. Removed old gaskets.
7.
... Read more Replaced Gaskets.
8. Replaced Carb.
9. Replaced gas line
10. Replaced throttle spring and Choke adjuster.
11. Replaced Bolts holding carb and air filter.
12. Put gas in the tank.
13. Started engine.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9898057
Manufacturer Part Number: 16100-Z0J-013
Engine
- Honda Small Engine Model GC160LAMHAB Parts
✖
Stock Status
