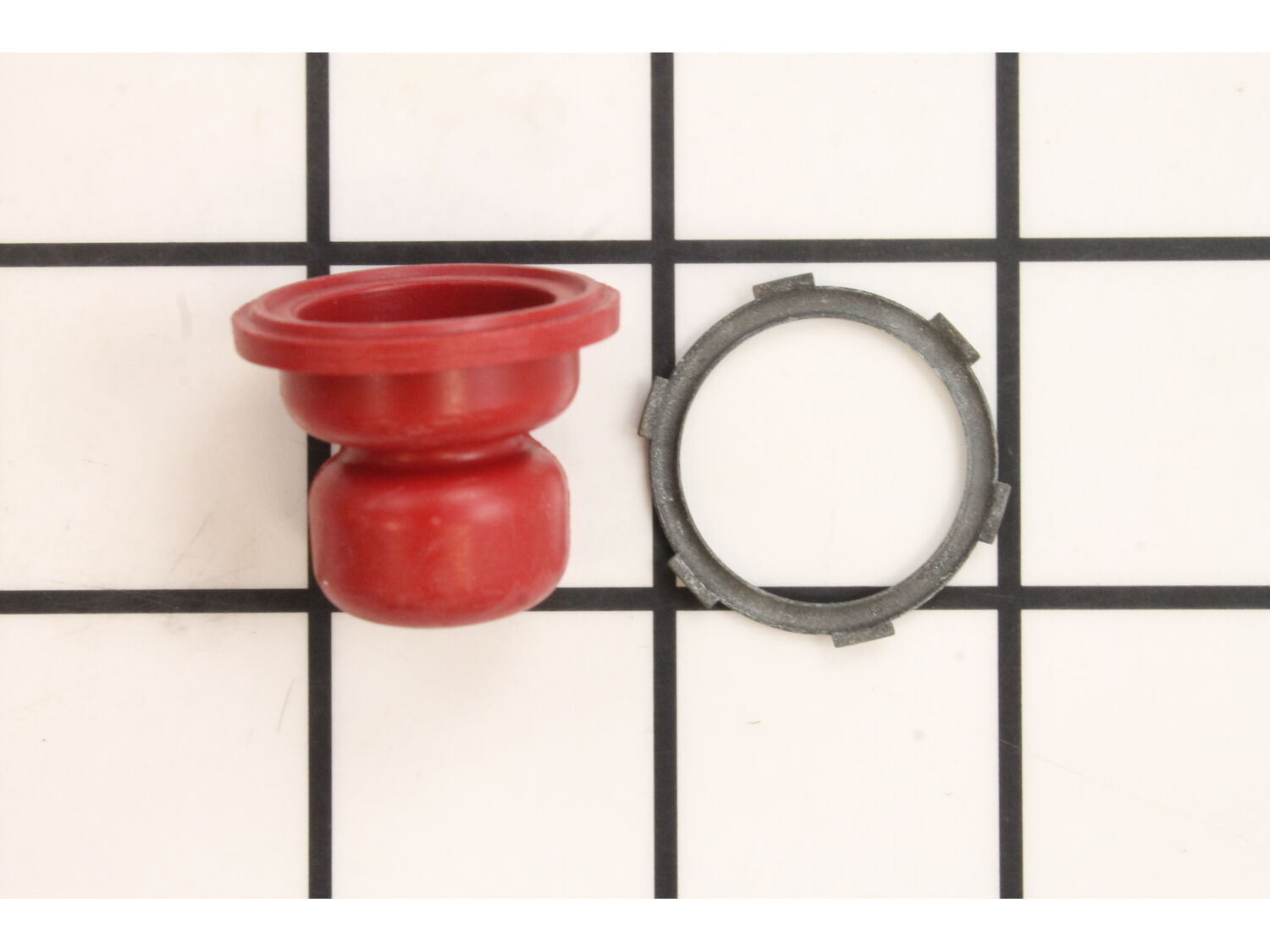

This is a genuine OEM approved replacement part designed for use with Toro lawnmowers with Tecumseh engines. By pressing on the purge bulb, it will force fuel into the fuel line from the fuel tank into the carburetor. Once the carburetor is full of fuel, the excess fuel will be purged back into the tank in the fuel return line. At some time the primer will lose its elasticity or crack and need to be replaced. It is made out of rubber and it is sold individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Great resource
I was able to repair my 18 yr. old lawnmower with the correct replacement parts as well as the instructions to make the repair. Just great!
Guest - June 2, 2020
Verified Purchase
★★★★★
★★★★★
Super easy to install!
It was super easy to install and my lawn mover is working great!
Guest - June 28, 2022
Verified Purchase
★★★★★
★★★★★
tall grass
The parts were correct and worked fine just a little upset with delivery, paid extra to get it here in two days and didnt show up up for seven days. I get the covid thing, so just say no matter how much you spend it will not get here for 7 to 10 business days. Just saying!
Guest - September 8, 2020
Verified Purchase
★★★★★
★★★★★
Lawn mower parts for a Toro
The parts arrived as stated and were just what I ordered. Things went well.!
Guest - May 12, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Pull out old primer bulb and pry out retainer ring with small screwdriver. Put new retainer ring over new primer bulb with ears facing out, put in place and place 19mm socket over bulb and drive retainer ring in place tapping on socket with hammer.
Did you find this story helpful?
Thank you for voting!
Air getting into gas line. I could get it started after priming, but mower wouldn\'t stay running.
Repaired as instructed. Removed retainer ring with screwdriver and used socket and hammer to insert ring and primer bulb. As a 54 y.o. woman, I figured out the problem AND fixed it myself.
Remove the old primer by pulling on it. The remove the the retaining ring. Then press the new primer back in and use a socket the same size of the retaining ring and tap it in, with the tabs facing up.
Did you find this story helpful?
Thank you for voting!
Lost power. Didn\'t run smoothly.
Steve from Austin, TX, Texas
1 personfound this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
Pulled the carburetor off and rebuilt it. The idle jet was completely clogged. You\'ll need a very small diameter wire to clean it. I used a strand of copper wire. Reassembled and runs like new. Check for videos on how to do it. Very simple if you have ever turned a wrench.
Removed old cracked bulb w/screwdriver and pliers
Replaced with new bulb and retainer ring
Tapped into place with socket
Mower started and ran smooth on first try
I ripped the old one out with pliers, pried out old retaining ring. Slipped the new ring over the new bulb and tapped it into place with hammer and 19 MM deep socket. ThatGÇÖs it. =ƒÿÇ
1. Use needle nose plies to remove old bulb.
2. Use small screwdriver to pry out retainer ring.
3. Clean area.
4. Put bulb and retainer ring on 19mm socket.
5. Tap bulb and ring in with rubber mallet.
No instructions for for the up grade for the battery relocation.Took a very long time for delivery( allmost 2months). The parts that were of high quality.
Remvove and replace old battery box.Rotate support bracket to fit new box
Relocate battery box
Install new battery
Repl fuel bowl and casket
Repl primer bulb
Primed and started the lawn mower. Runs ( Ok )
poped off retainer ring, pulled off primer blub...used 19mm socket placed over bulb and retainer ring tapped in with rubber mallet..slight pull on blub to insure proper install.
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9053864
Manufacturer Part Number: 640259
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
