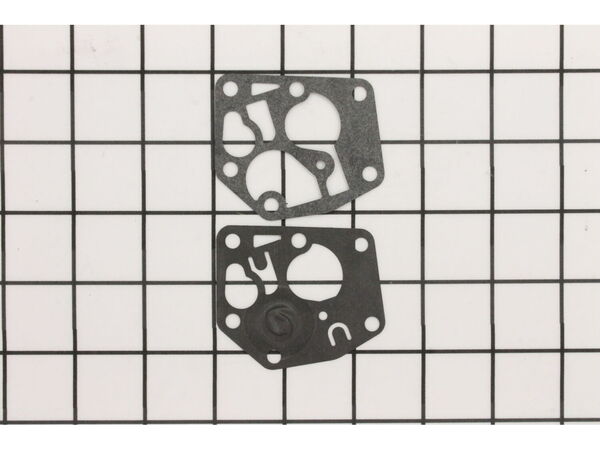

The diaphragm provides a tight seal between carburetor components. Unfortunately, over time the material will wear out and it may begin to crack eventually requiring a replacement. It is an authentic item that is supplied by the original manufacturer for use with Briggs and Stratton engines that are commonly installed on lawn and garden equipment. Keep in mind this high-quality component is made of durable composite material and is sold as in a pack of two. Refer to the appropriate diagrams for your model to ensure the correct repair procedure.
