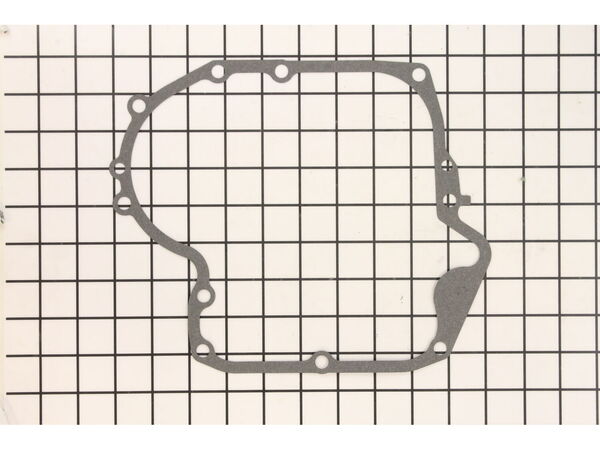

Genuine OEM replacement part used on a variety of Engines. This item is made with Composite Material and it is sold individually. Its purpose is to make an air tight seal so that no air/oil leakage occurs. Over time this gasket will deteriorate and will need to be replaced. The gasket measures .015 Thick.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Gasket
The part arrived in perfect condition. Service reps are extremely helpful and polite. Best on-line experience ever
Guest - May 28, 2019
Verified Purchase
★★★★★
★★★★★
Gasket
Excellent translation. It was the correct part and it came in a timely manner.
Guest - September 22, 2019
Verified Purchase
★★★★★
★★★★★
Replacement parts.
I've bought from this seller a few times now and as always I get great service at wonderful low prices. I recommend this seller to anyone needing replacement parts etc. I will be ordering from them again.
Guest - October 23, 2019
Verified Purchase
★★★★★
★★★★★
Oil pan gasket
The gaskets and seal worked great,,,fast shipping ...I have no complant ,,,Great job Ereplacement
Guest - February 19, 2020
Verified Purchase
★★★★★
★★★★★
Easy repair
Great product.
Guest - December 29, 2020
Verified Purchase
★★★★★
★★★★★
Back in business
Easy to locate, arrive quick, fit as expected
Guest - April 8, 2021
Verified Purchase
★★★★★
★★★★★
very good experience
the gasket worked fine in my engine, at a fair price.
Guest - July 29, 2021
Verified Purchase
★★★★★
★★★★★
Great service
Fast serviced with no issues
Guest - November 14, 2021
Verified Purchase
★★★★★
★★★★★
The replacement gasket
Gasket fit fine, usps slow as usual. Other than that all went well
Guest - July 7, 2022
Verified Purchase
★★★★★
★★★★★
Worked as expected
I thought the wait time was a little long. Was concerned that the gasket was folded in half for shipping from the shipper. All that said the parts were correct, undamaged and fit perfectly.
Guest - July 8, 2020
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove the engine, the engine shroud, and the sump cover. Then, removed the rocker box and the lifters. Push the rods, then, removed the cam. Clean parts, then, reassemble the parts.
Did you find this story helpful?
Thank you for voting!
Lawnmower connecting rod broke due to low oil.
Paul from Conroe, Texas
12 of 12 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Remove and disassemble engine.
Remove broken rod and pieces and check for any other damage.
Refinish Crank journal with emery cloth.
Attach new rod to piston and install in engine.
Reassemble all components and use new gaskets where needed.
Disconnect Battery
Disconnect Starter and Electrical Wire.
Remove Engine shroud.
Remove Intake manifold w/carb. Remove muffler.
Lower mower deck and unbolt mower transmission and blade pulley from crankshaft.
Unbolt and remove Engine from lawn tractor chassis.
Drain Oil.
Unbolt and remove cylinde
... Read morer head & remove push rods.
Unbolt and remove bottom crankcase cover.
Remove cam shaft.
Remove broken Connection Rod (note connection rod orientation on crankshaft, it will only work one way).
Push Piston up and out the cylinder.
Inspect engine case, crankshaft, piston and cylinder for any damage or scoring.
Remove retainer clip from connection rod piston pin and press out pin far enough to remove old connection rod and attach new one. Push connection rod pin back into place and replace retainer pin clip.
Check piston rings for any damage and replace if necessary.
Hone piston cylinder.
Using a piston ring compressor tool, compress piston rings on piston.
Lubricate piston cylinder. (I use Lucas Assembly Lube but regular oil will work) and slide piston back into the cylinder making sure the connection rod is orientate correctly.
Lubricate crankshaft with oil and attached connection rod. Torque to required specs.
Reinstall camshaft making sure to align timing mark on camshaft and crankshaft.
Remove and clean engine block and cover of ALL old gasket material.
Remove oil pump cover on the crankcase cover and remove oil pump gear and drive pin.
Place new crankcase gasket on engine block and replace crankcase cover. Torque to specs.
Align oil pump drive shaft with camshaft slot, replace gear and replace oil pump cover.
Remove and clean cylinder and cylinder head of ALL old head gasket material.
Place new cylinder head gasket on engine block, replace cylinder head and Torque to specs.
Remove OHV cover.
Loosen rocker arms until you are able to replace push rods.
Rotate engine until engine timing is at TDC. Adjust rocker arms to correct gap setting between rocker arm and valve.
Replace engine to lawn tractor (reverse of removal procedure).
ADD NEW OIL.
When you start using tractor again, do NOT run under full load for the first 5 to 10 hours. Change oil and filter (if equipped) after 10 hours.
Remove the oil pan is all and then remove the oil seal from the oil pan and clean the old gasket and replace the new one, and replace the oil pan, everything worked good.
Removed the head and cleaned the surface. Removed the pan gasket and cleaned the surface. Torqued head and reset the push rods to specs. Replaced shear key and reset the magneto gap.
We removed the engine from tractor. Removed pan from engine to inspect cam shaft. The compression was ok reinstall. Remove and replace oil seal Remove old pan gasket and replace pan gasket and reinstalled. Taking care to install oil seal on shaft. Remove valve cover and remove and replace both push rods. Reassemble and install back on tr
... Read moreactor. Start and check for leaks and operation. Have 28years in small engine repair
Read less
Did you find this story helpful?
Thank you for voting!
The balance weight connecting rods broke in a 20 HP>single cyl engine from lack of oil.
Earl from Elkton, Maryland
3 of 3 peoplefound this instruction helpful.
Difficulty Level:
Very Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
This repair is for expert or advanced mechanics, as it requires a complete engine disassembly.
I don\'t know if a lot of people will expend the effort to make this repair.The crankshaft must be removed, and cleaned, to install the lower rod, along with the timing gear and connecting rod.
I found that some aluminum fro
... Read morem the balance weight rods had transferred to the crankshaft journals, preventing the new ones from slipping into place. The crank lobes needed to be polished to accept the new ones..
It was much less expensive than buying a short block,( by several hundred dollars) and I\'m glad the parts were available. They arrived on time and in good shape, making the job relatively easy.lol.
Read less
Did you find this story helpful?
Thank you for voting!
Hard to start
Randall from Paragould, Arkansas
3 of 3 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Engine would kick back when trying to start. Like the engine had too much compression or was out of time. I took the engine apart and checked the timing; I had also taken the head off and checked the cylinder and valves. Put the engine back together using the new gaskets, adjusted the valves and installed a new keyway pin in flywheel. Put
... Read more on a new ignition coil and replaced the drive belt. Now the lawn mower cranks over and starts.
Read less
Did you find this story helpful?
Thank you for voting!
Engine smoking
Ronald from Hazleton, Pennsylvania
2 of 2 peoplefound this instruction helpful.
Difficulty Level:
Very Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
Removed engine, removed head, valves, opened case to check rings. Rings OK, replaced piston and side case gasket. Removed valves, lapped valve seats, replaced valve stem seal. Replaced head with new gasket. Job complete.
I jumped the gun initially and pulled the engine from the tractor, thinking the connecting rod had broken. I should have checked the valve push rods first. That would have saved me the time of removing the engine from the tractor and replacing the pan gasket and crankshaft oil seal.
It was pretty simple after I determined that my p
... Read moreroblem was the push rods. I removed the bent rod installed the new one I purchased from eReplacementParts.com. Adjusted the valves(You can find several youtube videos to guide you through this procedure). The engine started right up and I mowed about two hours with it this weekend.
I wish I could tell you why the push rod bent, but I can\'t. If anyone has an explnation I would love to here it.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP9076878
Manufacturer Part Number: 697110
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
