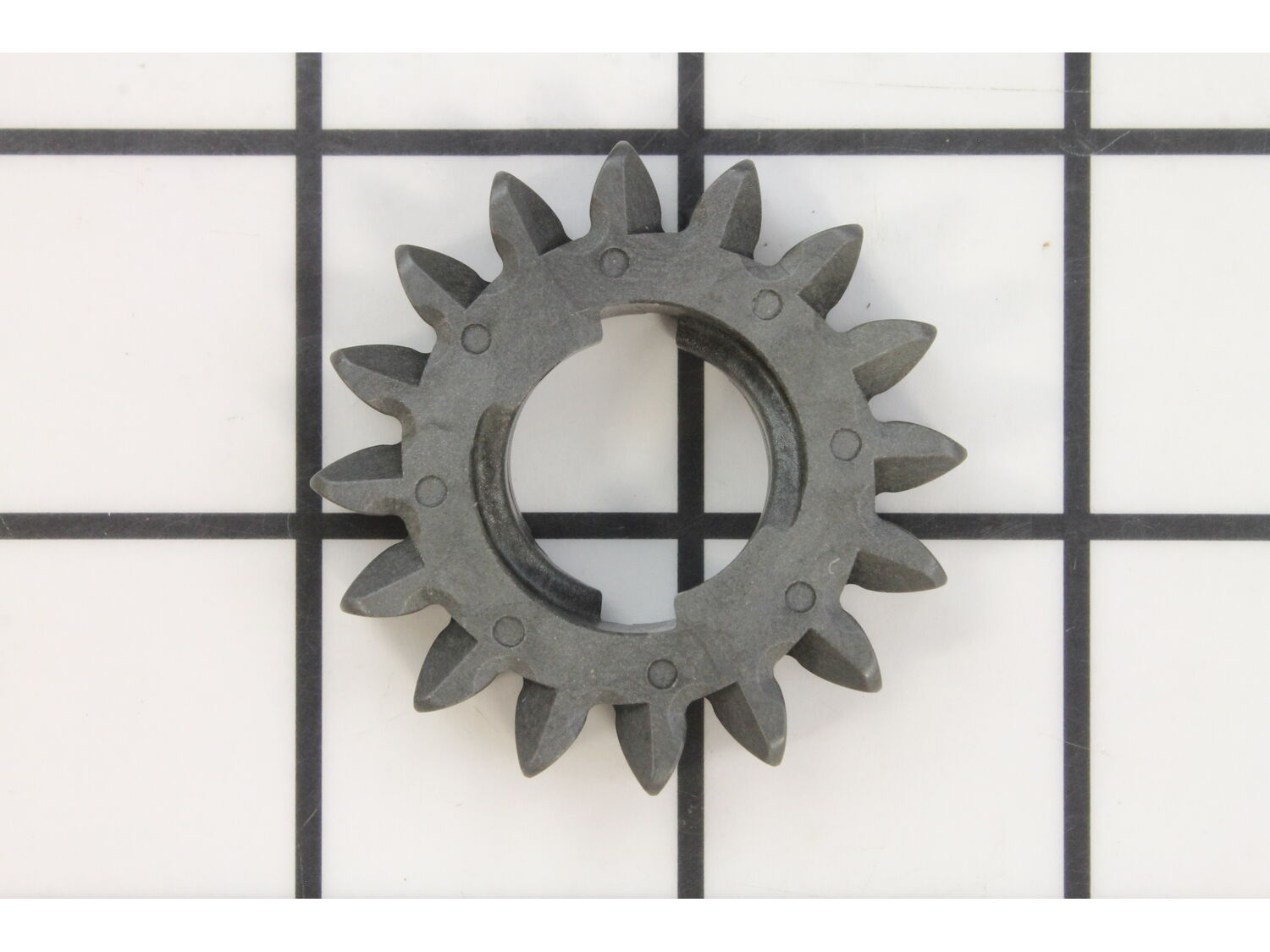

This is a manufacturer approved starter pinion gear designed for use with lawn and garden equipment engines. This Starter pinion gear is attach to the starter clutch drive and engages the flywheel to start the engine. It is made out of Plastic and Aluminum and it is Sold Individually.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Great Part
Sorry I have not installed the pert yet but it looks perfect. If I have any problem, I will call. Thanks
Gary
Guest - April 9, 2020
Verified Purchase
★★★★★
★★★★★
Easy Ordering
Found the part I needed easily and received it in a reasonable amount of time
Guest - May 4, 2020
Verified Purchase
★★★★★
★★★★★
It worked as expected.
It was a perfect fit, and back mowing again
Guest - June 12, 2020
Verified Purchase
★★★★★
★★★★★
Genuine Factory Part
The starter pinion gear arrived on time and in good condition. The E-Replacement Parts website made ordering easy and I was assured I had the correct for my mower.
Kevin - July 5, 2021
Verified Purchase
★★★★★
★★★★★
Exactly what I needed!
Needed this part form my riding lawn mower. Arrived in a speedy time so my lawn didn’t become too overgrown waiting for this part. Thank you for the easy purchase and fast shipping.
Guest - July 7, 2021
Verified Purchase
★★★★★
★★★★★
Satisfied Customer
I ordered a starter gear for an old JCPenny riding lawnmower and it was a great experience. The part was easy to find on the website, inexpensive, and arrived in just a few days. The lawnmower is up and running again! Thank you Steve
Steve - October 5, 2021
Verified Purchase
★★★★★
★★★★★
1983 briggs part
I was happy you had the part for my old engine. Worked great and quick delivery. We will do business again!
Clifford - October 20, 2021
Verified Purchase
★★★★★
★★★★★
Old lawn mower back in service!
I have used eReplacement several times in the past for my personal repair jobs. I live in a remote area with limited access to hardware without driving long distances. I have always had great success with eReplacement and will continue to use them for my future repair projects.
Guest - November 9, 2022
Verified Purchase
★★★★★
★★★★★
Part worked great
The part was exactly what I expected and after I got it installed, my mower was up and running again.
Roger - May 9, 2023
Verified Purchase
★★★★★
★★★★★
Quick delivery
I haven't had time to install the part yet, but it looks like it will do the job.
Guest - June 13, 2023
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed the ground cable from the battery and removed the starter cable from the starter.
2. Removed the shrouding.
3. Removed the flywheel using an appropriate puller.
4. Removed the starter
5. Removed the roll pin holding the gear retainer and the removed the gear.
6. Installed the new gear and replaced
... Read morethe retainer and roll pin.
7. Installed the starter, flywheel and shrouding.
8. Connected the starter cable and reattached the ground cable.
Remove the starter from the engine ... 4 bolts. You will see the gear. Remove the lock pin and slide the spring, washer and the old gear off. Install the new gear by reversing the process. Very easy to do for anyone who is mechanically inclined.
Removed the starter from the engine block. Cleaned the outside of the starter. Punched out the roll pin holding the pinion gear in place. Installed the new pinion gear and installed the roll pin. Bolted the starter back on the engine block and I was ready to go. Works great.
Removed motor shroud.
Disconnected battery cable and removed starter motor.
Removed clip holding gear assembly to motor shaft.
Replaced broken gear on starter motor shaft.
Reassembled.
1. Remove flywheel nut
2. Use flywheel puller to remove flywheel
3. Drill out rivets holding gear to flywheel and remove gear
4. Install new gear with provided bolts and nuts
5. Install flywheel back on motor with square key lined up
6. Install flywheel nut and torque to spec
