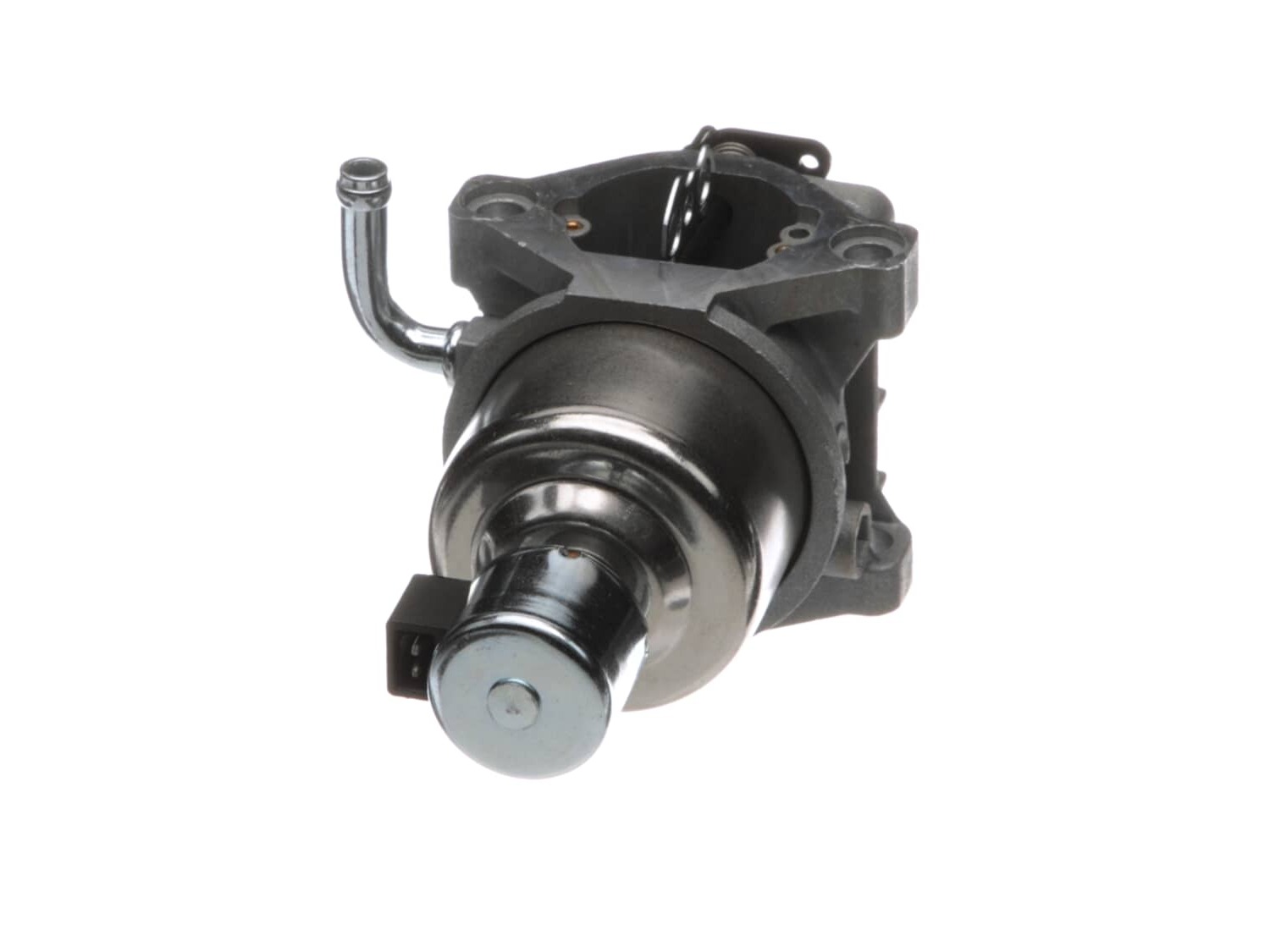

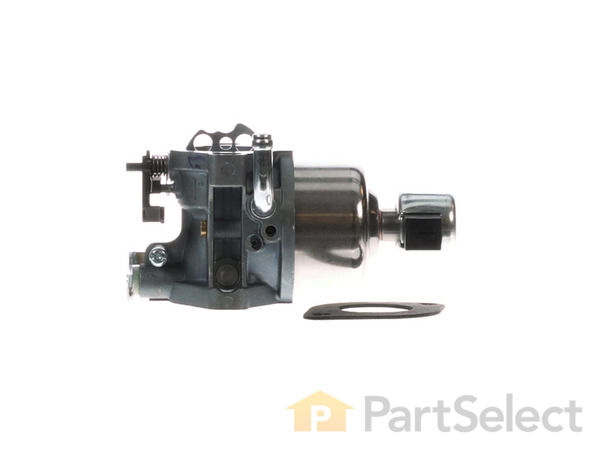

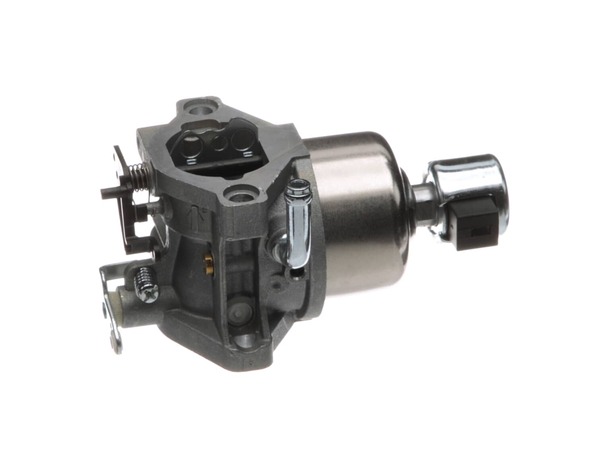

This genuine OEM replacement carburetor is designed for use with lawn and garden equipment. It mixes air and gas before the fuel mix goes to the engine. This kit includes a metal body carburetor and gasket
If the engine won\'t start and the tank is full of fresh fuel, test the carburetor by removing the air filter and pouring about a teaspoon of fuel into the carburetor. Pull the starter rope. If the engine starts and then quickly dies, the carburetor is likely the problem.
To complete this repair you would need a screwdriver.
• Remove the air filter cover
• Remove the air filter base
• Turn off the fuel
• Remove the fuel line
• Remove the throttle linkage
• Remove the carburetor
• Replace the throttle linkage
• Connect the fuel line to the carburetor
• Replace any damaged/old gaskets
• Reassemble the carburetor and air filter base
• Mount the carburetor and air filter base
• Reinstall the air filter
• Replace the air filter cover
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Carb Toro 3000 lawn Tractor
Carb arrived in just a few days in great condition. Installed on my Toro lawn tractor in about 1 hr and am back in business. Happy customer.
Guest - October 21, 2019
Verified Purchase
★★★★★
★★★★★
Literally took less then 5 minutes to replace
I was a little worried because they have a lot of disclaimers saying parts my be delayed due to the Covid-19. I was pleasantly surprised that it shipped that same day and I received it on time. It was in great condition and got my mower back up and running in minutes
Guest - June 22, 2020
Verified Purchase
★★★★★
★★★★★
It worked as expected
Runs like it was new.
Russell - February 8, 2022
Verified Purchase
★★★★★
★★★★★
Shipping time was great.
Got every thing I ordered and had my repairs done . Thank you for the convenience.
Craig - August 24, 2022
Verified Purchase
★★★★★
★★★★★
Easy repair great part
The carburetor had a broken part but fixed with part from old one and worked great. Lawn mower is running great again.
William - May 24, 2019
Verified Purchase
★★★★★
★★★★★
Arrived on time ood condition quick change out.i still need to reset float. Letting mower flood out to the point of drowning out plug resaultig in none fire
Guest - June 2, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove the air cleaner cover, then the air cleaner, then remove the top cover. Remove the filter base plate and remove the breather tube from the base plate. Release the clamp holding the fuel line to the carburetor. To stop the flow of fuel you can use clamp pliers or you can put something in the line to stop the fuel. Remove the choke l
... Read moreever assembly. Take the bolts off that are holding the carburetor to the engine. Remove the throttle control from the carburetor. Remove the old o-ring from the intake tube. Install the new o-ring and gasket included with the carburetor. Then assemble all of the parts in reverse order. Done
Read less
Did you find this story helpful?
Thank you for voting!
Carburetor was flooding needle seat would not seal.
Remove engine cover then remove the bolts from the carburetor. Carefully disconnect the choke rods without bending them. Unplug the lead from the bottom of the carburetor. Reverse to reinstall.
Did you find this story helpful?
Thank you for voting!
Old fuel in the carburetor fouled the passageways and solonoid.
1. Removed the shroud.
2. Removed the old fuel lines.
3. Disconnected the cables and spring.
4. Removed the hardware.
5. Pulled off the carburetor.
6. Installed new carburetor.
7. Reinstalled the other parts in reverse order.
8. Added new fuel hose, shutoff valve and filter.
9. Cleaned the f
... Read moreuel tank and filled with fresh fuel.
10. Started right up and ran real well. The carb was probably flow tested at the manufacturer and was ready for my engine specifically. I got the numbers for this application from the valve cover on the engine.
Read less
Did you find this story helpful?
Thank you for voting!
Carburetor worn out , broken parts
Tommy from EATONTON, Georgia
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Socket set, Wrench (Adjustable), Wrench set
Removed cover over engine and air filter piece. Removed air intake and set aside. Take pictures of linkage setup. Remove studs that hold carburetor in place and electrical connection off bottom of bowl . Disconnect linkage. Connect up in reverse order. Adjust carburetor if necessary.
1. Remove air filter.
2. Remove engine cover.
3. Remove all debris from around engine.
4. Remove air intake port.
5. Disconnect fuel line from carburetor.
6. Disconnect vacuum line from carburetor.
7. Remove carburetor.
8. Detach choke linkage and throttle linkage from carburetor.
9.
... Read more Attach new carburetor.
10. Follow steps 2 through 7 above in reverse order.
11. Put in new air filter.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP11829368
Manufacturer Part Number: 594593
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
