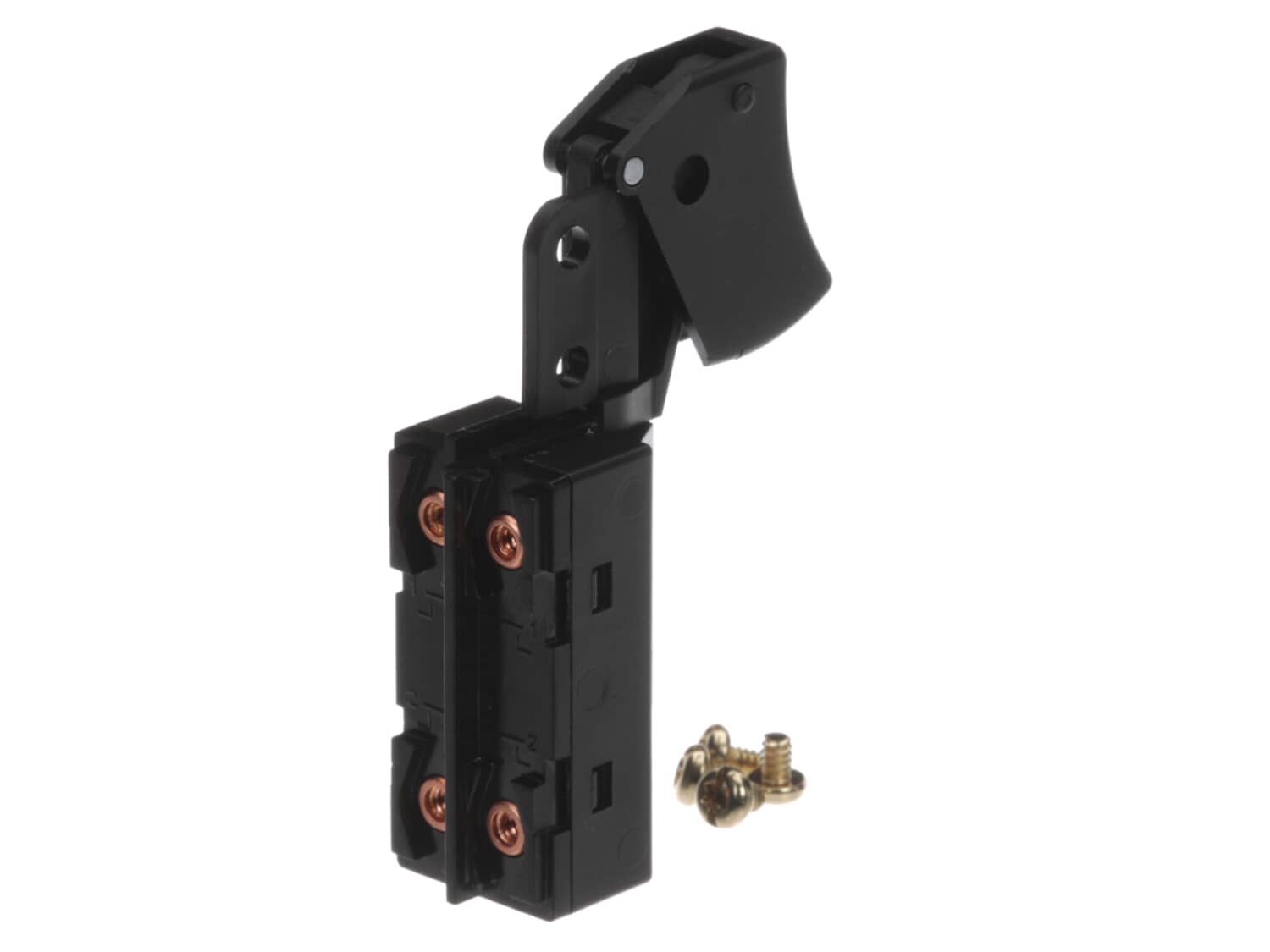

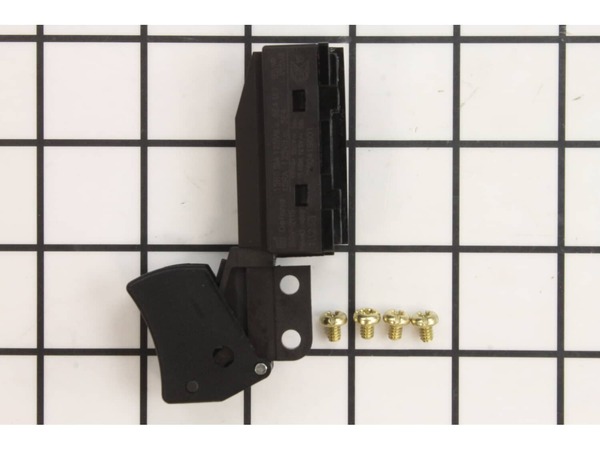

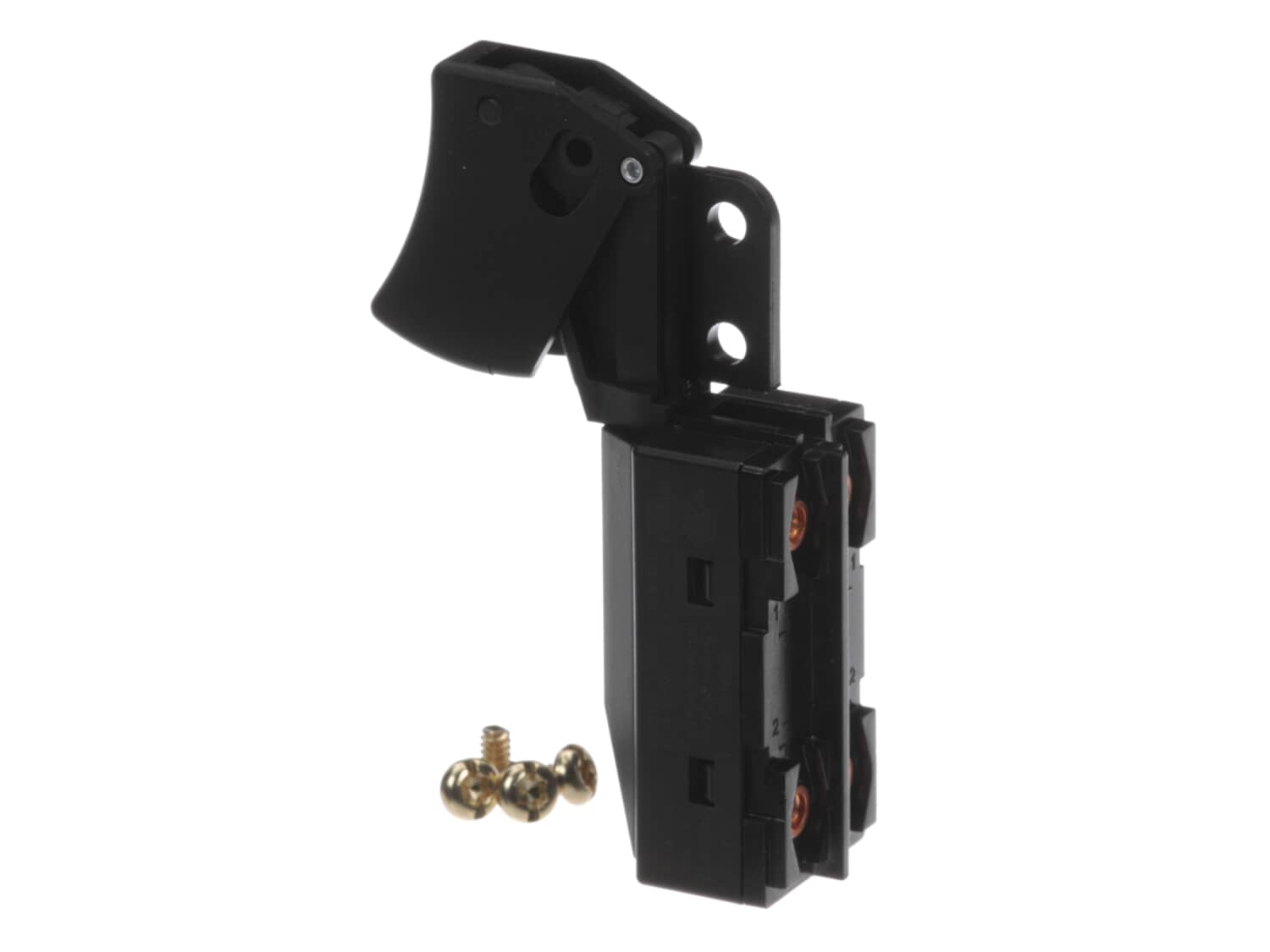

This Trigger switch has 4 internal terminals. This authentic Milwaukee replacement part is sold individually. rnrnSwitches are commonly replaced parts in power tools. A switch handles all on/off and variable speed functions. They also have a role in electric breaking; they can momentarily reverse electrical polarity. Because switches use mechanical internals, they tend to degrade and wear out over time, eventually requiring replacement. Some common signs of a broken or failing switch are:rn • The tool will not start when you use the switch, or it requires multiple tries to turn on, until eventually it refuses to start at all.rn • The variable speed function and electric braking aren't working properly.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Switch works great!!
replacement switch fit into Milwaukee mounting holes perfectly,
be advised the terminals are not the same electrical layout.
line1---old switch-----load1
line2---old switch-----load2
line1----new switch---line2
load1----new switch---load2
I had to make 2ea wires 1.5" longer, one for each side
Not a big deal, but you need to have new splices and terminals to finish the job.
Saw works like new.!!
Guest - May 28, 2019
Verified Purchase
★★★★★
★★★★★
Works as good as new
Fast delivery makes the old skill saw work like new. The saw was my Dads he bought it in the Late 70’s early 80’s and it still works and cuts like when it was new.
Guest - June 22, 2019
Verified Purchase
★★★★★
★★★★★
Works great
Guys, mL1, nL2,L3,L4...... Please , Please include a wiring schematic. Not everyone know how to use a meter
Mj
Guest - July 6, 2019
Verified Purchase
★★★★★
★★★★★
Updated switch wiring
Bought this switch to replace the original. Old switch was discontinued and this was the replacement. When received, I noticed new switch has screw connections vs old push/friction connections. After researching I found a wiring connection diagram for the new switch. I had to lengthen two of the four leads
My only issue was the switch didn’t come with the revised wiring schematic. Otherwise price was right and delivery fast
Guest - September 16, 2019
Verified Purchase
★★★★★
★★★★★
Switch for Milwaukee Hole Hog !!
Quick delivery - Part worked perfect. Price point was good.
Guest - November 18, 2019
Verified Purchase
★★★★★
★★★★★
Great part
Fast delivery, thx you. Will buy from you again.
Guest - May 28, 2020
Verified Purchase
★★★★★
★★★★★
Easy repair
Arrived quicker than expected.
Guest - April 7, 2021
Verified Purchase
★★★★★
★★★★★
Easy repair
The part came quickly and the repair went smoothly. Great company.
Guest - April 11, 2021
Verified Purchase
★★★★★
★★★★★
Fits perfect
Great part
Guest - August 30, 2021
Verified Purchase
★★★★★
★★★★★
Just what I needed
On backorder for awhile but kept me up on availability and finally got it. Thanks
Guest - September 7, 2022
Verified Purchase
< Prev
1
2
3
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Took off the handle around the switch and removed bad switch. Connected new wires, put new switch back in place and replaced handle. This would have been a lot simpler if the new switch had some instructions included explaining that the replacement switch did not wire exactly like the old one. I went back to ereplacementparts website to s
... Read moreee that other folks had the same problem. After that it was much easier.
1. Took old switch out.
2. Took meter to switch to confirm setup of new switch. (Orientation is different than old switch)
3. Cut two pieces of wire to extend the leads to work with new switch.
4. Screwed in the leads to the switch and put back in saw.
5. Tested the switch before closing up the handle to confirm
... Read moreswitch was properly wired.
6. Screw back handle onto saw.
Very straight t forward, Remove the switch handle half, then just remove the old switch and rewire the new to the same terminals as the old wires. Set switch into the housing and screw in the screws.
The terminals on the replacement switch were a different configuration than those of the original. A quick multimeter test confirmed the correct configuration. One wire needed to be extended and new terminal ends installed. Otherwise a direct fit in my Milwaukee circular saw.
1. Removed the defective switch.
2. With an ohm tested the replacement switch for continuity
2. Because the replacement switch did not wire the same as the old switch,
1. Opened cover
2. Used manufacturers wiring diagram to determine proper wiring (New switch contacts not exactly like old switch, may need to check continuity with a meter)
3. Connected wires
4. Closed cover.
5. Tested.
This switch is slightly different than the original. The input & output terminals are in a different arrangement. That made this harder than it should be.
Searched online for instructions, found service bulletin 58-01-0753 from Milwaukee Tool describing installation. It can be obtained directly from Milwaukee Tool:
http
... Read mores:///documents.milwaukeetool.com/58-01-0753.pdf
Took apart the case
Be careful not to mix up wire connections obviously
There was an extra wire that went to the directional switch,so i just hooked it to a hot wire
I used round terminals to finish the connections because those screws were tiny.
Overall it was an easy repair.
MAKE CERTAIN you put the screws
... Read more in and snug them as soon as you open the package .
it is a contact switch and there are small copper part that are loose inside the switch they fell out when I took the switch apart.
Turns out you don\'t have to take the switch apart but that is how the old switch went together
hope that helps someone
1. Remove the cover.
2. Remove the switch.
3. Disconnect the wires.
4. Add the wire connectors to the wires (new switch has screw connections).
5. Check wiring on the manufacturer\'s site (New switch wired differently than old, didn\'t expect this so do check).
6. Replace the switch.
7. Replace the cove
... Read morer.
