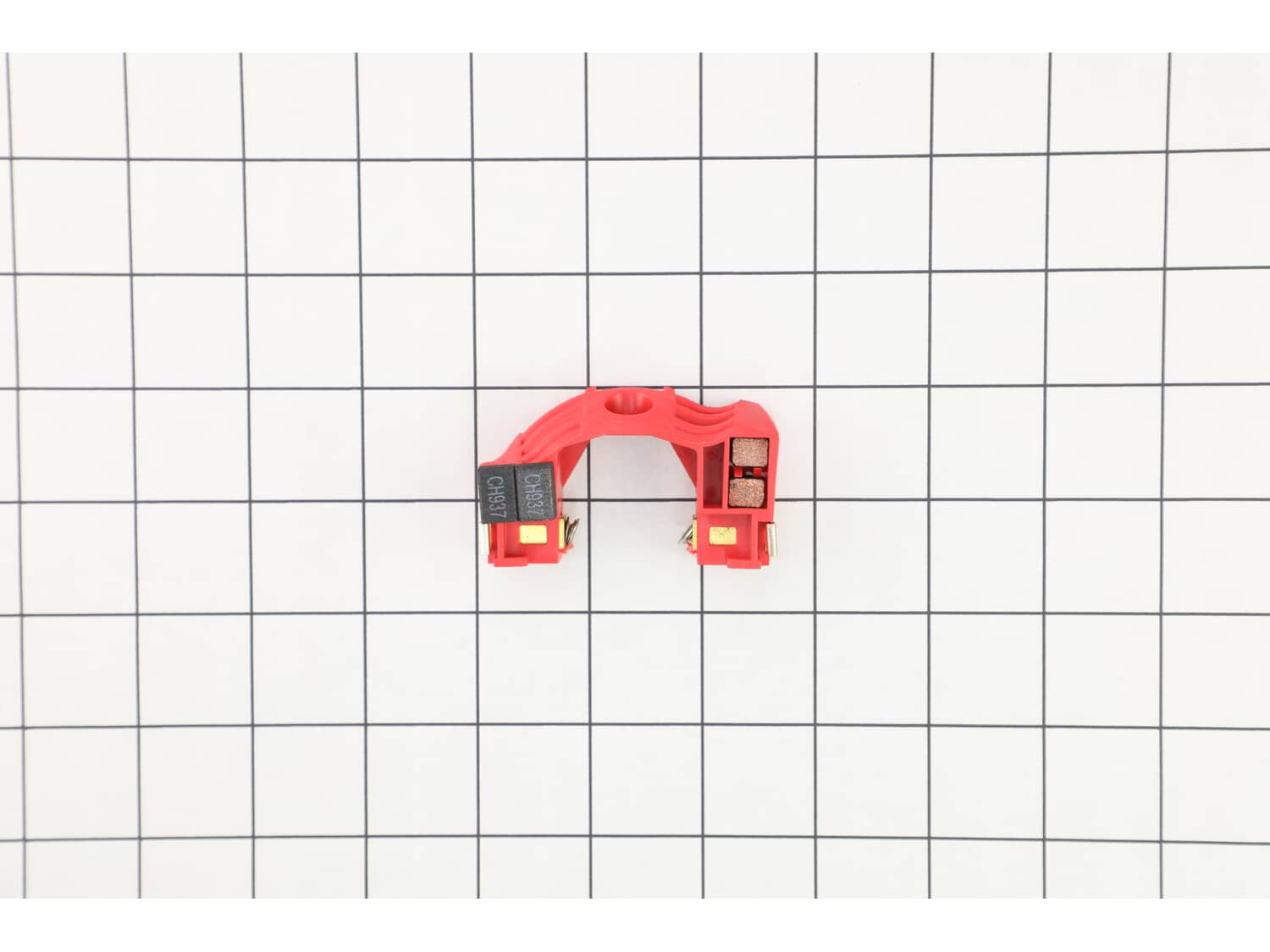

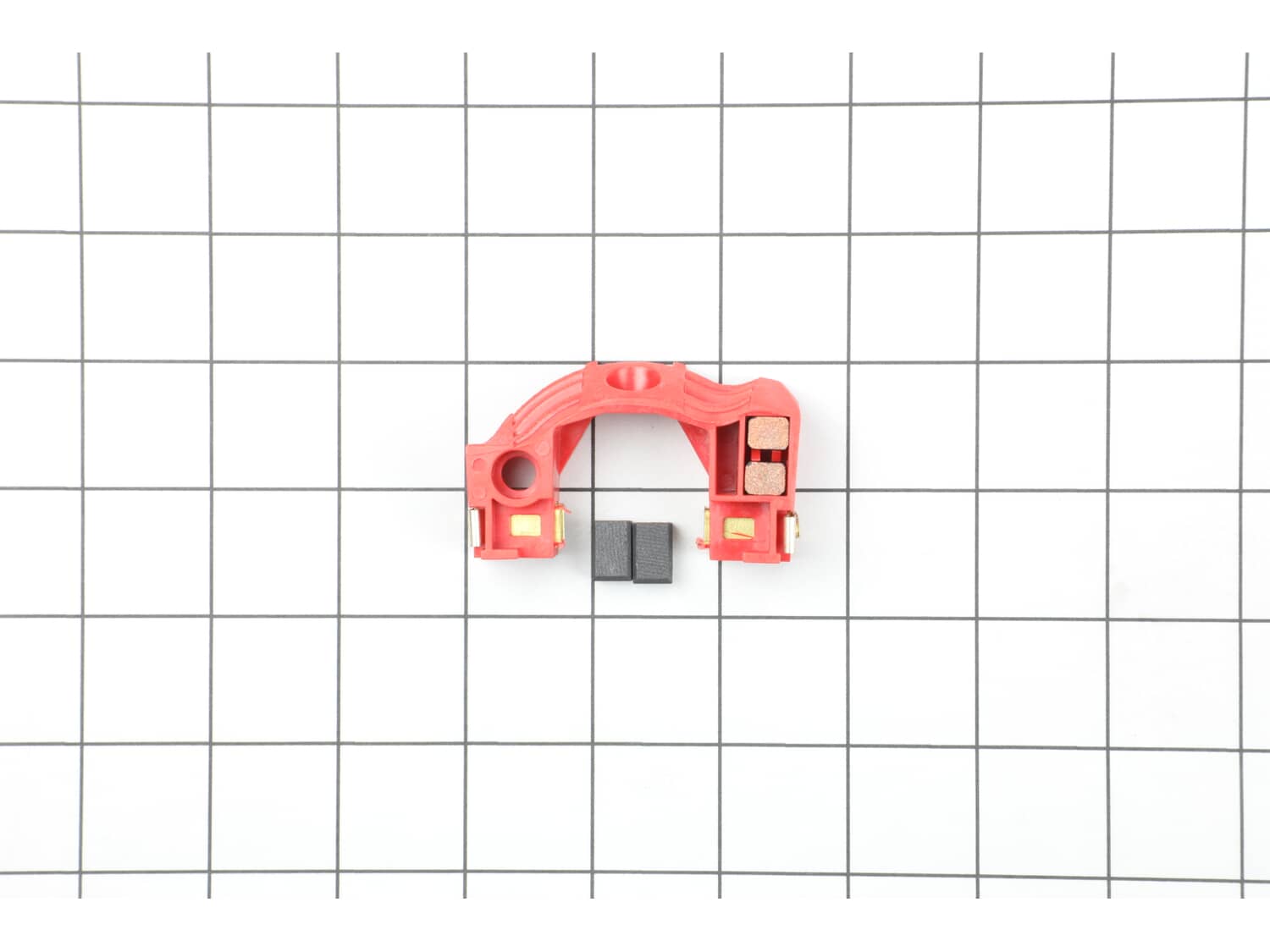

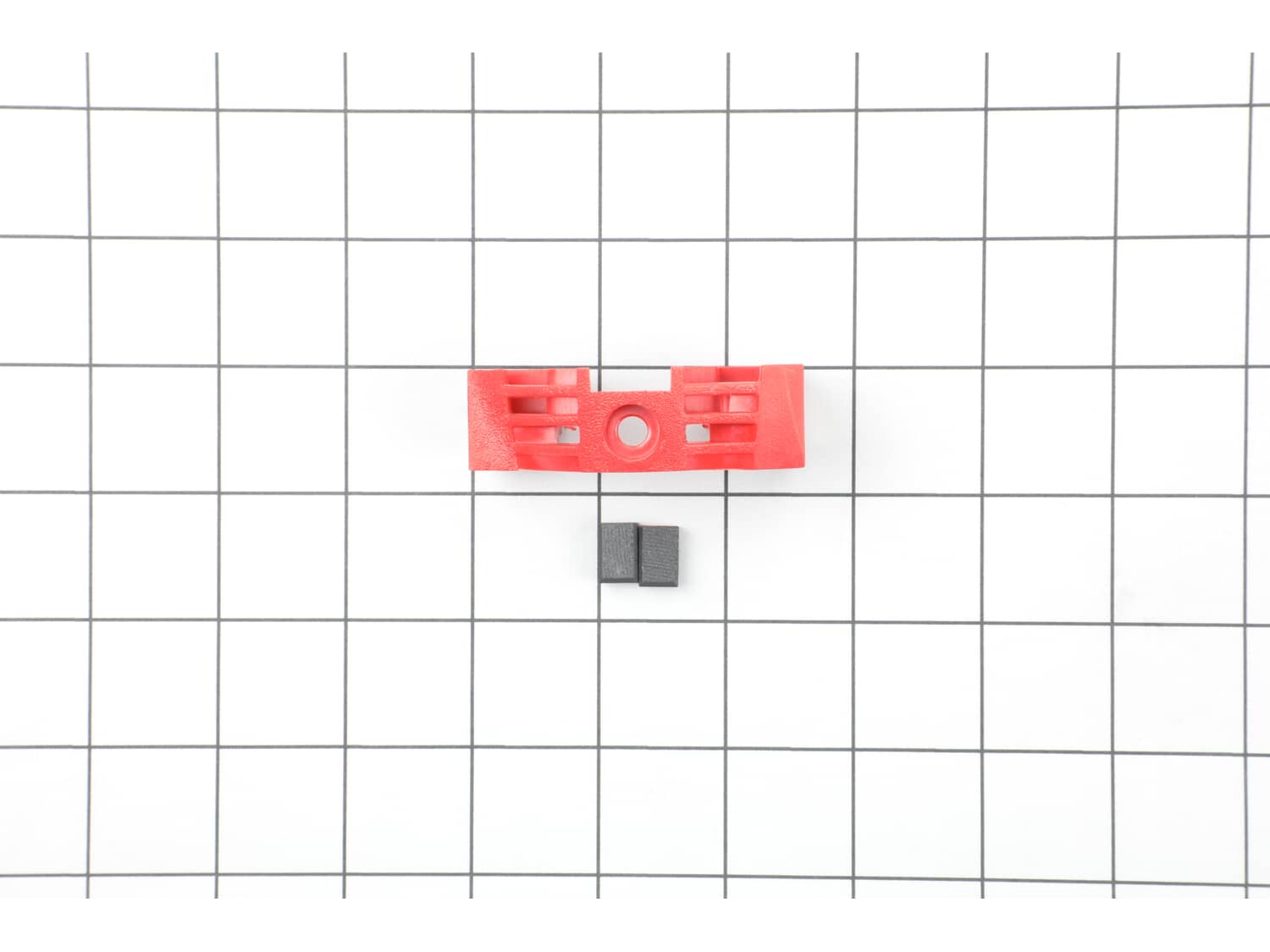

This is an authentic OEM component from the Milwaukee manufacturer. The brush holder assembly is compatible with the 0234-6 (532D) 1/2" Magnum Hole-Shooter. The plastic, metal and carbon brush component is fitted onto the motor housing and field, assisting with the electrical current conduction. This part is sold individually. A screwdriver is needed to make the proper removal and replacement.
Troubleshooting
This part works with the following brands:
Milwaukee
This part works with the following products:
Electric Drill
Customer Repair Instructions
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Easy
Less than 15 mins
(2 rated repairs)?
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
I first removed screw holding assembly in place.
I removed the brush holder assembly containing bad spring.
Installed brushes into the new holder (included with holder).
Inserted brush holder assembly into drill.
Replaced screw.
I removed the old brush holder assembly and replaced the brushes. I had to use the old brush holder because the new one was not an exact match. I could have modified it to work but figured it would take more time.The mounting screw hole was too small. The job was easy enough and the drill worked fine again.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10122372
Manufacturer Part Number: 22-22-0352
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
