Part Location Diagram of 22-18-0702 Milwaukee Carbon Brush
See part 55 in the diagram

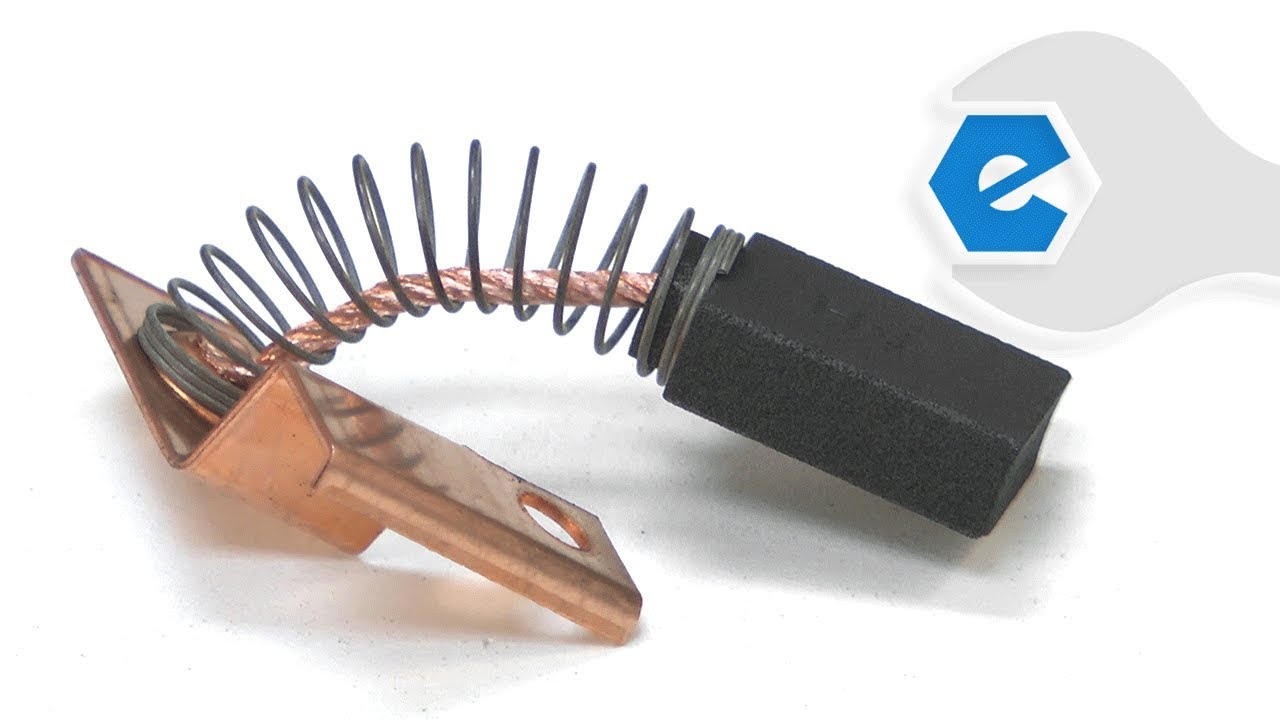

Replacing your Milwaukee Electric Drill Carbon Brush
( Grid squares measure 1x1 inch )

Carbon Brush 22-18-0702

Manufactured by:
Milwaukee
ERP Number:
ERP10122196
Part Number:
22-18-0702
Original Equipment Manufacturer ?
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(5 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

Original Milwaukee replacement part. This Brush is sold individually, most repair jobs will require Two (2) of this item. As pictured, this brush is ready to install and includes carbon brush, wire lead, and spring. Over time, brushes will wear down and eventually require replacement. Carbon motor brushes are one of the most commonly replaced power tool components. Because carbon brushes are wear items, meaning that through friction and use they will gradually wear away, they will eventually require replacement. Worn brushes are common causes of intermittent motor function, reduced electric braking, and reduced motor power. A worn out brush will often be worn down near the wire lead and may be cracked, pitted, or burned. When replacing carbon brushes, be sure to also inspect your armature for burns, cracks, or other damage which indicates a larger motor problem.

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Milwaukee
This part works with the following products:
  • Electric Drill
  • Drill

Videos For installing this part.

?
Replacing your Carbon Brush

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(2 Reviews)
Click to filter by ratings:
  • 5 stars
    2
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(5 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Worn brushes

Bruce from Golden, Colorado

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
Parts Used:
22-20-0680, 22-18-0702
Removed brush and brush tube, then replaced both. Perfect fit, easy repair.
Did you find this story helpful?
Thank you for voting!

Armature in short circuit

Mario from Miami, Florida

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Wrench set
Parts Used:
22-18-0702, 16-70-0320
Replace the armature and de carbon brushes and the equipment works great
Did you find this story helpful?
Thank you for voting!

BAD ARMATURE ,BRUSHES AND BEARINGS

Tom from DURHAM, California

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
22-18-0702
DISASSEBLE DRILL. TURN AND UNDERCUT ARMTURE REPLACE BEARING AND BRUSHES
Did you find this story helpful?
Thank you for voting!

Brushes were shooting a lot of fire

Jimmy from Durham, North Carolina

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
22-18-0702
Remove the brush covers
Remove the old brushes
Install the new brushes
Install the brush covers
Did you find this story helpful?
Thank you for voting!

Brushes were wornout

Randy from Grand Jct., Colorado

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
22-18-0702
Removed the old brushes and installed the new ones. The tool works like new now!
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP10122196
Manufacturer Part Number: 22-18-0702
Brand Model Number Description
Milwaukee 4004 Electric Drill - Dymodrill
Milwaukee 4004-20 Drill - Milwaukee 4004-20-(841b) Parts
Milwaukee 4004-20LC Drill - Milwaukee 4004-20lc-(G70a) Parts
Milwaukee 4004-55 Electric Drill - Dymodrill
Milwaukee 4005 Electric Drill - Dymodrill
Milwaukee 4005-55 Electric Drill - Dymodrill
Milwaukee 4014 Electric Drill - Dymodrill
Milwaukee 4015 Cordless Drill - Cordless Drill / Driver
Milwaukee 4079 Electric Drill - Electric Drill
Milwaukee 4090 Electric Drill - Electric Drill
Milwaukee 4092-20 Electric Drill - Electric Drill
Milwaukee 4093 Electric Drill - Electric Drill
Milwaukee 4094 Electric Drill - Electric Drill
Milwaukee 4095 Electric Drill - Electric Drill
Milwaukee 4096 Electric Drill - Electric Drill
Milwaukee 4096-55 Electric Drill - Electric Drill
Milwaukee 4097-20 Electric Drill - Electric Drill
Milwaukee 4099 Electric Drill - Electric Drill
