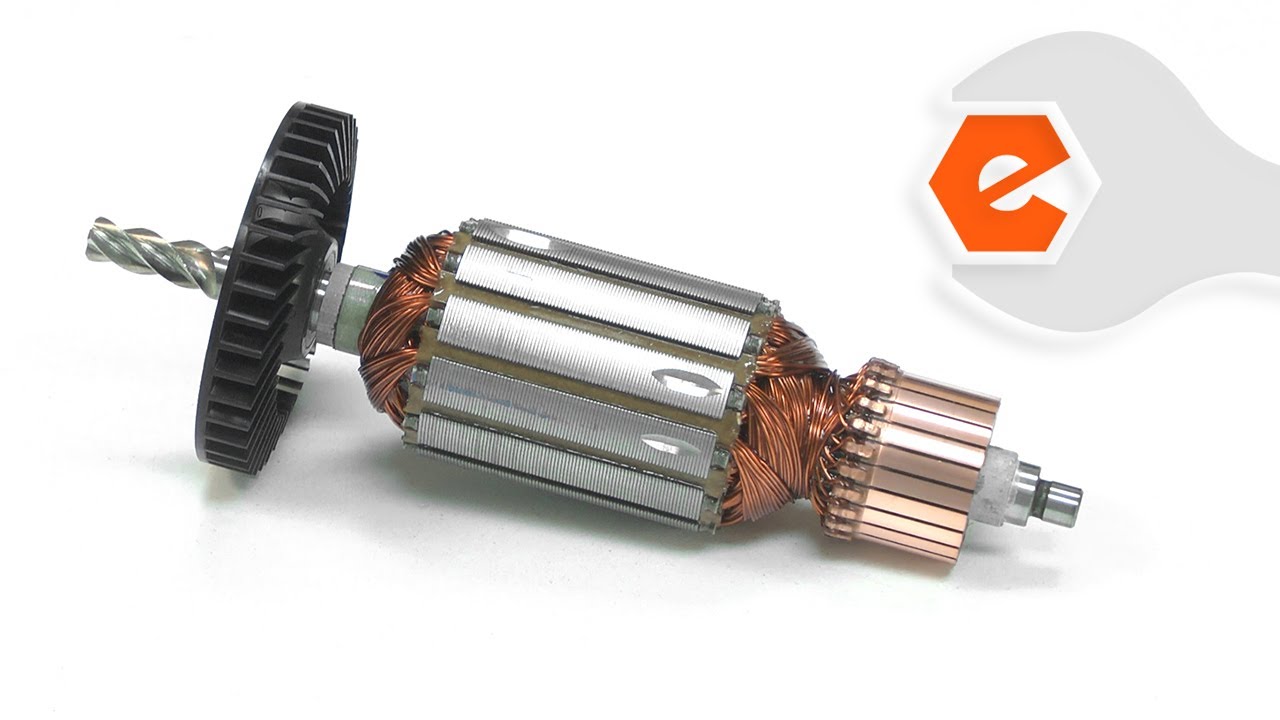

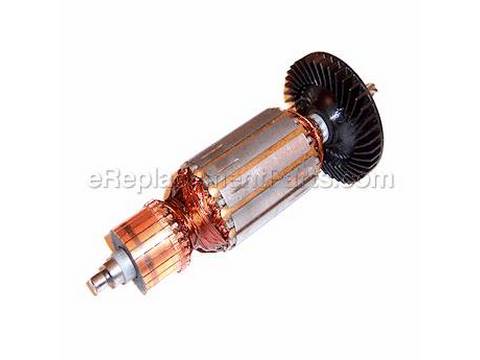

Replacing your Milwaukee Electric Drill Armature Service

Armature Service 16-10-2210

Manufactured by:: Milwaukee
ERP Number:: ERP10121415
Part Number:: 16-10-2210

$77.38

Easy

15 - 30 mins

(2 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Description Troubleshooting Repair Videos Questions & Answers Repair Instructions Model Cross Reference

Product Description

This item is available as an individual replacement part and is made of metal. The armature service goes between the ball bearing and the fan assembly. A screwdriver and a bearing puller might be necessary during the installation of this part. Over time this item may break and will need to be replaced. This is a genuine replacement part sourced from the original manufacturer for use with drills and shears made by Milwaukee.

Troubleshooting

This part works with the following brands:

Milwaukee

This part works with the following products:

Electric Drill

Videos For installing this part.

Questions & Answers

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(2 rated repairs) ?

< Prev
1
Next >

Sort by:

Smoke and no power.

Kenneth from RESERVE, Louisiana

1 person found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 30 - 60 mins
Tools:: Screw drivers
Parts Used:: 16-10-2210

Removed rear handle.
Pulled brushes to the side and secured
Removed front housing/armature assm.
Removed armature from housing
Removed rear bearing form armature.
Reverse of the disassembly,
Make sure brushes are still pulled out before inserting armature.

Did you find this story helpful?

the Armature tip was ground down and not making contact with the sprocket

Michael from ELLENSBURG, Washington

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 16-10-2210

1. used a torxe screwdriver to remove the screws
2. separated the covers form the drill
3. took off the brushes
4. pulled off the Armature from the drill
5. installed new Armature in drill
6. put brushed back on
7. greased the sprockets and installed the Gearcase
8. put all covers back on and tigh ... Read more

Read less

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP10121415
Manufacturer Part Number: 16-10-2210

Brand	Model Number	Description
Milwaukee	0299-20	Electric Drill - Electric Drill / Driver
Milwaukee	0300-20	Electric Drill - Electric Drill / Driver
Milwaukee	0301-20	Electric Drill - Electric Drill / Driver
Milwaukee	0302-20	Electric Drill - Electric Drill / Driver
Milwaukee	0302-55	Electric Drill - Electric Drill / Driver
Milwaukee	6852-20	Nibbler & Shears - 18 Gauge Shear
Milwaukee	6853	Electric Drill - Electric Drill
