Part Location Diagram of 513536-5 Makita Armature Assembly 115v
See part 20 in the diagram

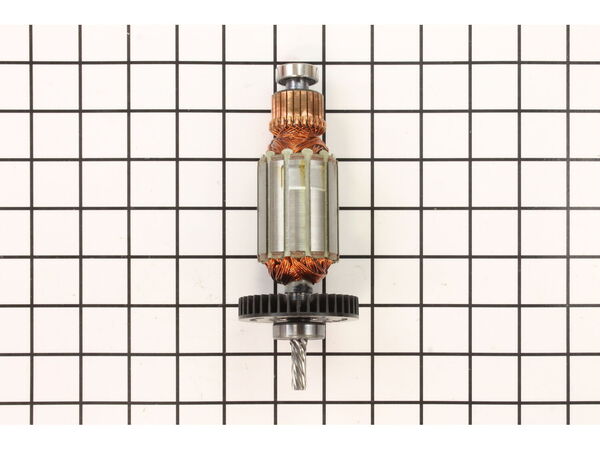

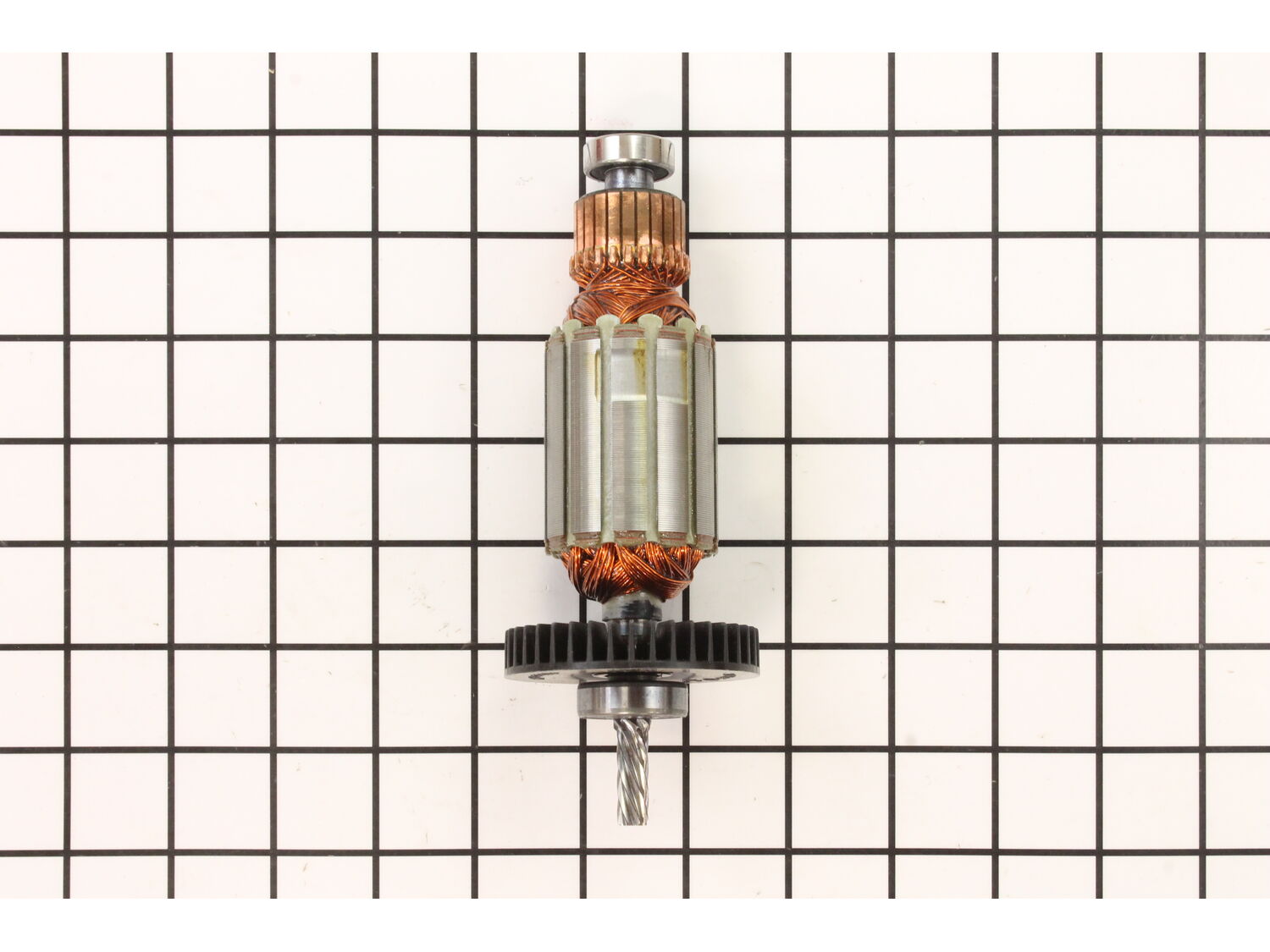

( Grid squares measure 1x1 inch )

Armature Assembly 115v 513536-5

Manufactured by:
Makita
ERP Number:
ERP10152171
Part Number:
513536-5
Original Equipment Manufacturer ?
$145.67
Special Order

Does this part fit my model?

Need help finding your model number?

Product Description

?

Includes bearings, washer and fan

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Electric Drill

Model Cross Reference

This part works with the following models:
ERP Number: ERP10152171
Manufacturer Part Number: 513536-5
Brand Model Number Description
Makita DS4000 Electric Drill - Spade Handle Drill
