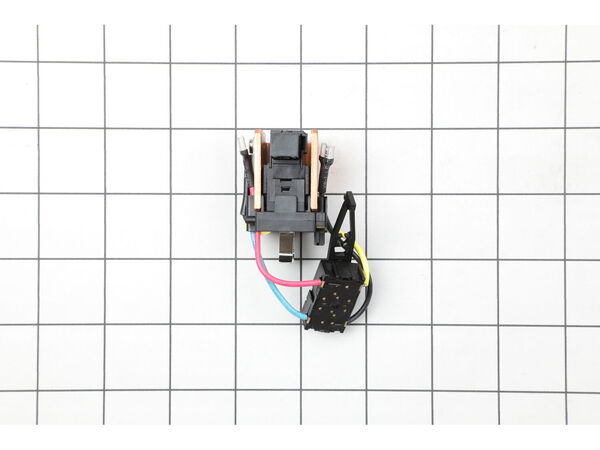

This Push-Button VSR switch has 4 leads connecting to a forward/reverse lever. It also has a heat sink and a battery connector. This authentic DeWalt replacement part is sold individually.
Switches are commonly replaced parts in power tools, handling all on/off and variable speed operations. They also have a role in electric breaking; they can momentarily reverse electrical polarity. Because switches use mechanical internals, they will degrade and wear out over time, eventually requiring replacement. Some common signs of a broken or failing switch are:
• The tool will not start when you use the switch, or it requires multiple tries to turn on, until eventually it refuses to start at all.
• The variable speed function and electric braking aren't working properly.
Troubleshooting
This part works with the following brands:
DeWALT
This part works with the following products:
Electric Drill
Cordless Drill
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
5 stars
1
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Part worked
I ordered a part maybe July 2nd or 3rd 2020 so it was a few days late .USPS. the replacement was easy I am satisfied with the quality .
Guest - July 15, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Took apart the clamshell with Torx screws.
Removed the switch from the Dewalt Angle Drill and ordered a new part.
It came in a few days...very quickly.
Took needle nose to disconnect the clips from the motor.
Placement of new switch was not that easy...but it had to be placed exactly like it should... a learning
... Read more curve.
Worked like a charm.
Was fun to do but expensive...did not anticipate the cost.
Love that drill as it is very handy.
Remove one half of the housing
Took a picture of where the internal part were located
Made a wiring diagram
Disconnected the old switch and removed it
Connected the new switch, made sure all of the parts were in the correct spot
Replaced the handle half
