Part Location Diagram of 7023226YP Murray V-belt, Edger Drive
See part C-17 in the diagram

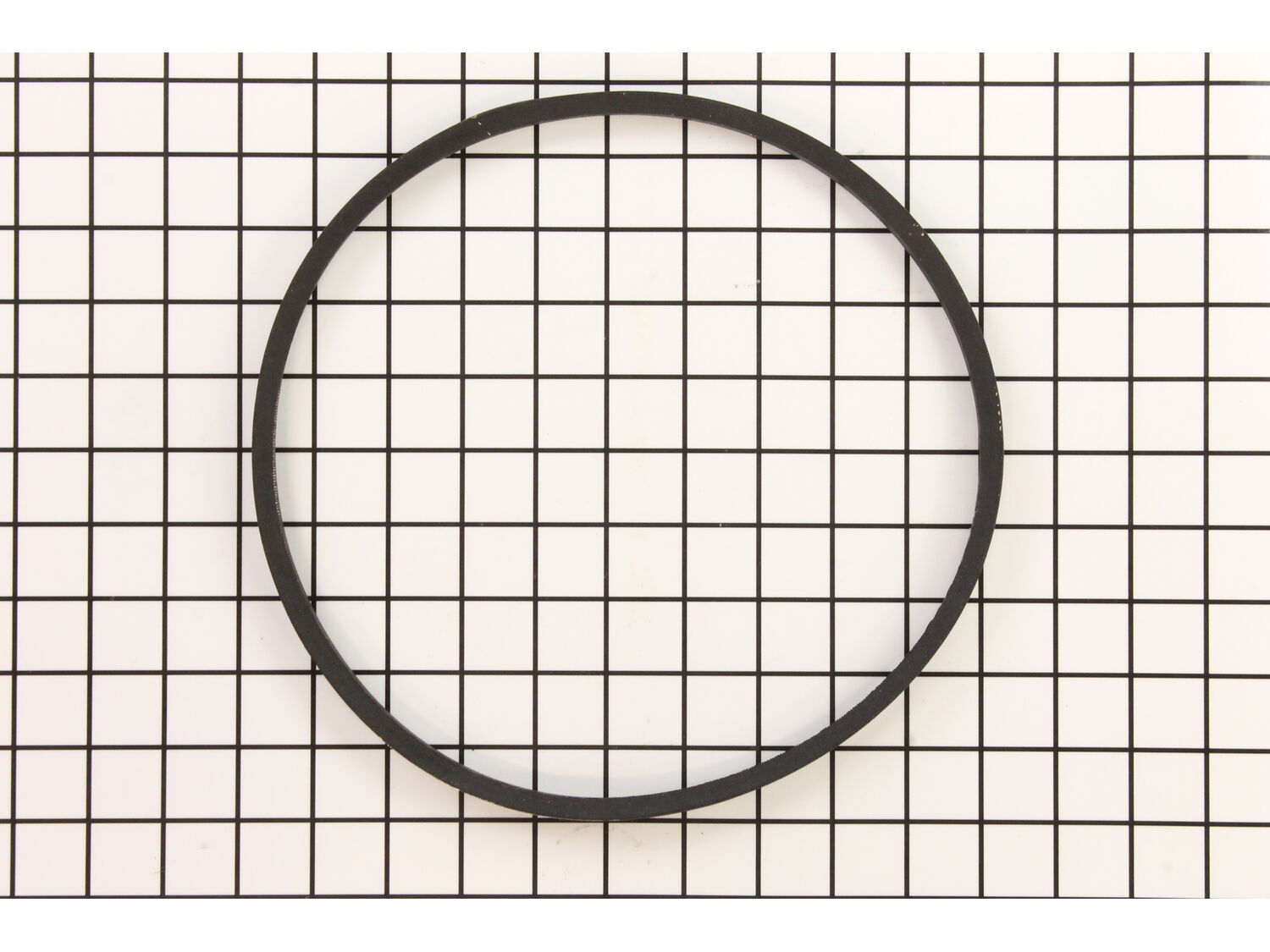

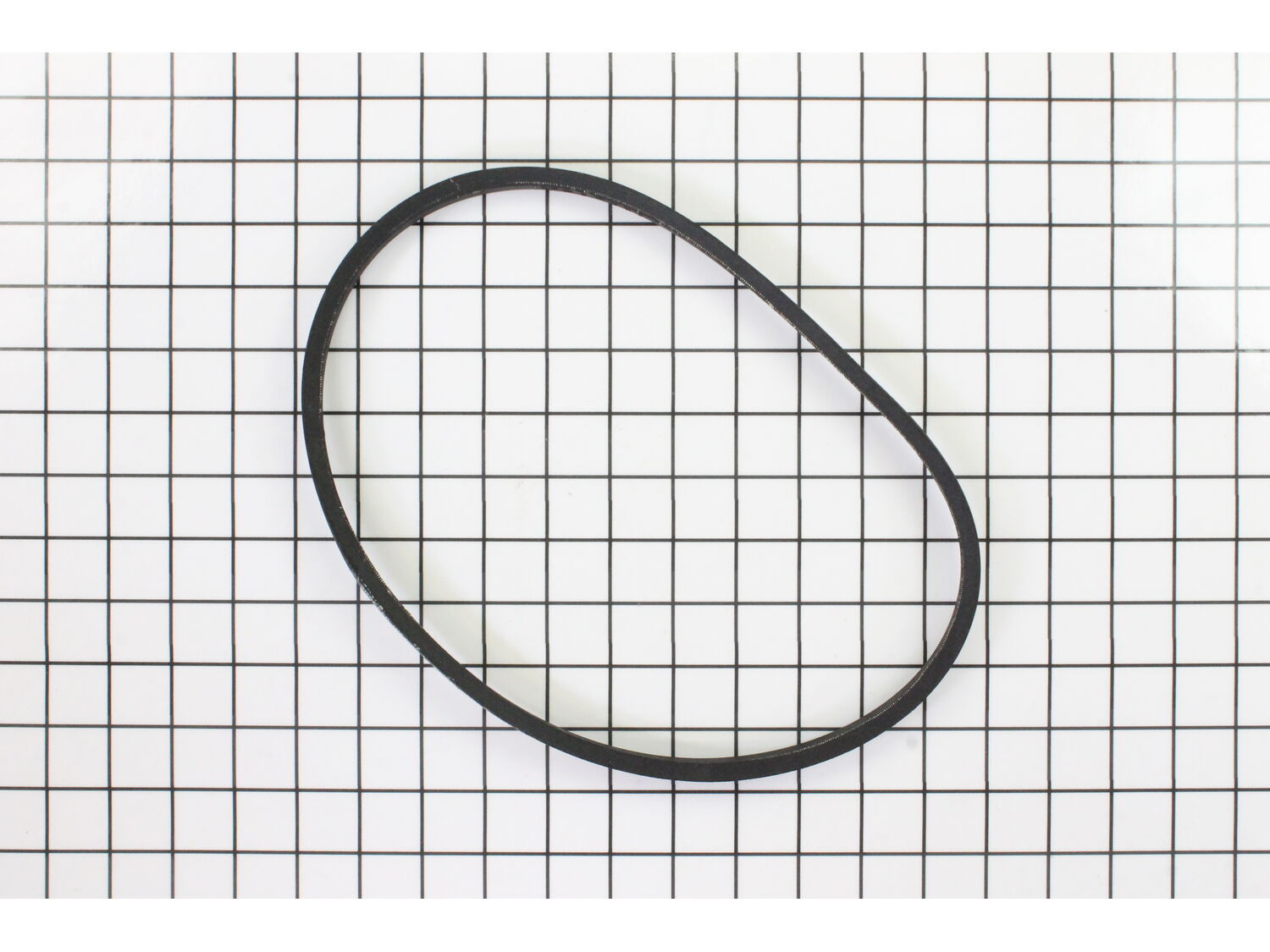

( Grid squares measure 1x1 inch )

V-belt, Edger Drive 7023226YP

Manufactured by:
Murray
ERP Number:
ERP11832055
Part Number:
7023226YP
Original Equipment Manufacturer ?
$28.78
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

V-belt edger drive

Troubleshooting

This part works with the following brands:
  • Snapper
This part works with the following products:
  • Edger
Part# 7023226YP replaces these:
7023226YP,

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Bearings needed replacement

Kyle from Bristol, Connecticut

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Socket set, Wrench set
Parts Used:
7015919YP, 7023226YP, 7010756YP
I had to remove blade guard and blade itself spindle and all washers wipe off excess grease to expose bearings then put a long metal punch in the housing and start tapping with a rubber mallet on the bearings to remove them from the housing they are slightly pressed in so tap in different areas to get them to back out slowly once they st art backing out its not long before you get them outof the housing its always a good idea to take a picture of everything before removing so replacement is correct now put your new bearings and all housing parts in slowly according to how you remove them make sure to apply new grease into grease fitting before use
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP11832055
Manufacturer Part Number: 7023226YP
Brand Model Number Description
Snapper 7080095 Edger - Snapper Edger Model 7080095 Parts
Snapper 7080096 Edger - Snapper Edger Model 7080096 Parts
Snapper 7080097 Edger - Snapper Edger Model 7080097 Parts
Snapper 7088320 Edger - Snapper Edger Model 7088320 Parts
Snapper 7088328 Edger - Snapper Edger Model 7088328 Parts
Snapper 7088338 Edger - Snapper Edger Model 7088338 Parts
Snapper 7088340 Edger - Snapper Edger Model 7088340 Parts
Snapper 7088348 Edger - Snapper Edger Model 7088348 Parts
Snapper 7088350 Edger - Snapper Edger Model 7088350 Parts
Snapper 7088358 Edger - Snapper Edger Model 7088358 Parts
Snapper ET200 Edger - 2 Hp Edger Trimmer Series 0
Snapper ET200B Edger - 2 Hp Edger Trimmer Series 0
Snapper ET201B Edger - 3 Hp Edger Trimmer Series 1
Snapper ET250-2 Edger - 2.5 Hp 2 Cycle Edger Trimmer Series 0
Snapper ET300 Edger - 3 Hp Edger Trimmer Series 0
Snapper ET300B Edger - 3 Hp Edger Trimmer Series 0
Snapper ET300C Edger - 3 Hp Commercial Edger Trimmer Series 0
Snapper ET301B Edger - 3 Hp Commercial Edger Trimmer Series 1
Snapper ETC300B Edger - 3 Hp Commercial Edger Trimmer Series 0
Snapper ETC301B Edger - 3 Hp Commercial Edger Trimmer Series 1
