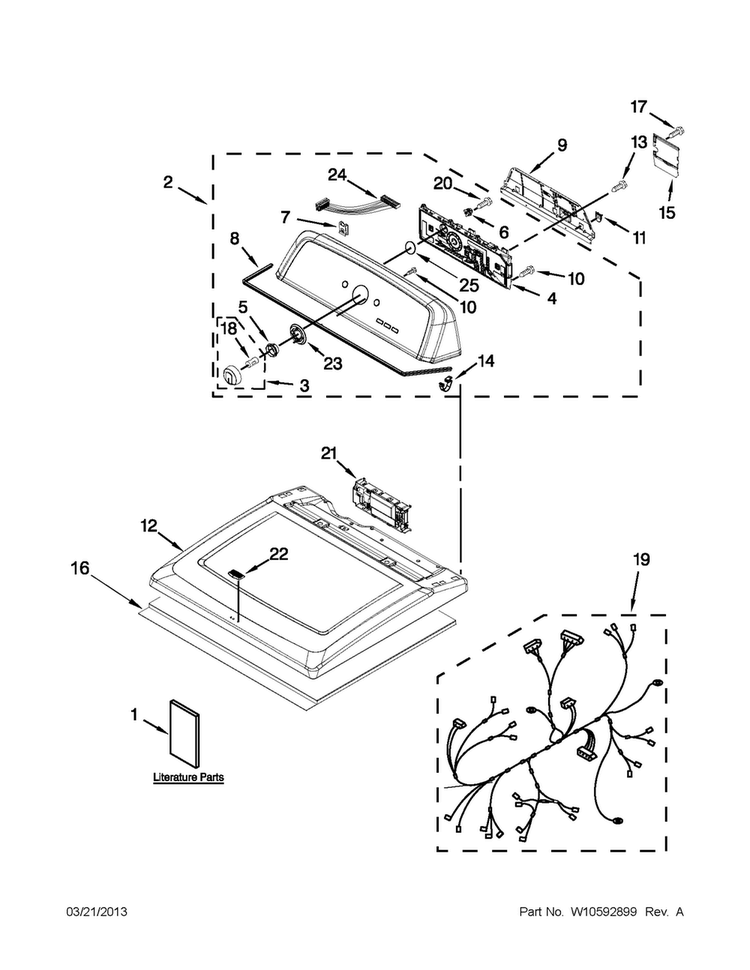

Part Location Diagram of WPW10214009 Whirlpool Electronic Control Board
See part 21 in the diagram

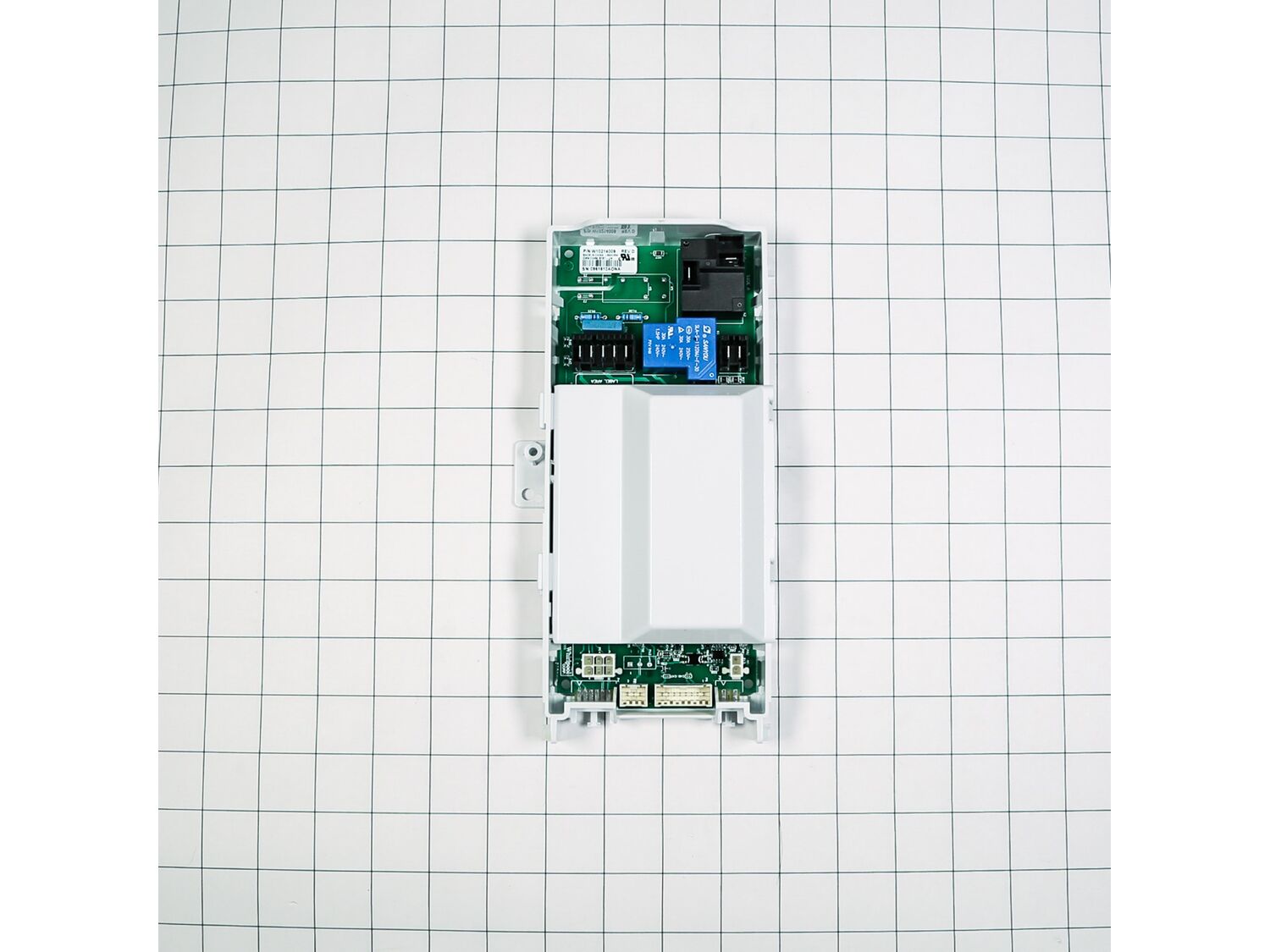

( Grid squares measure 1x1 inch )

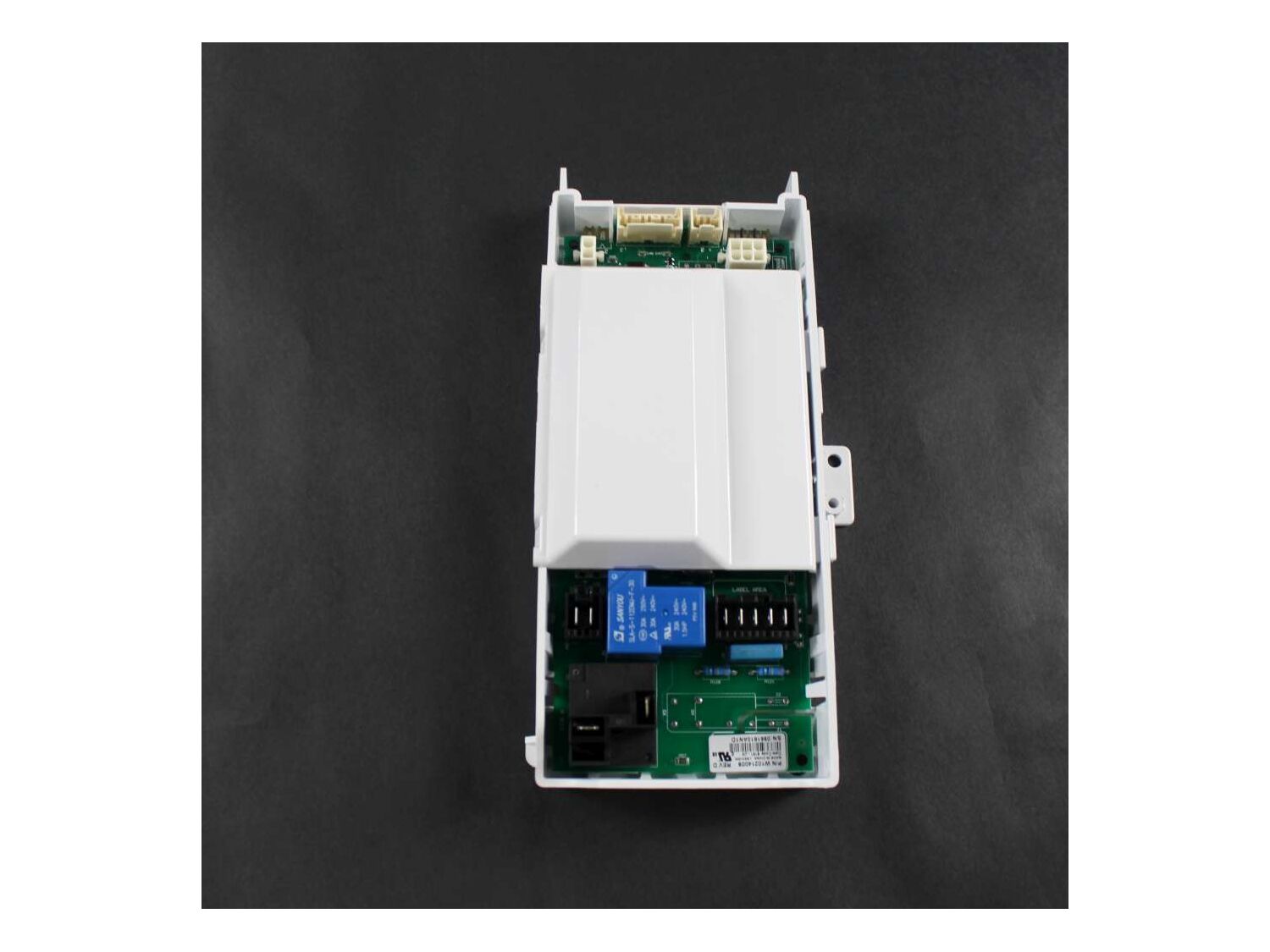

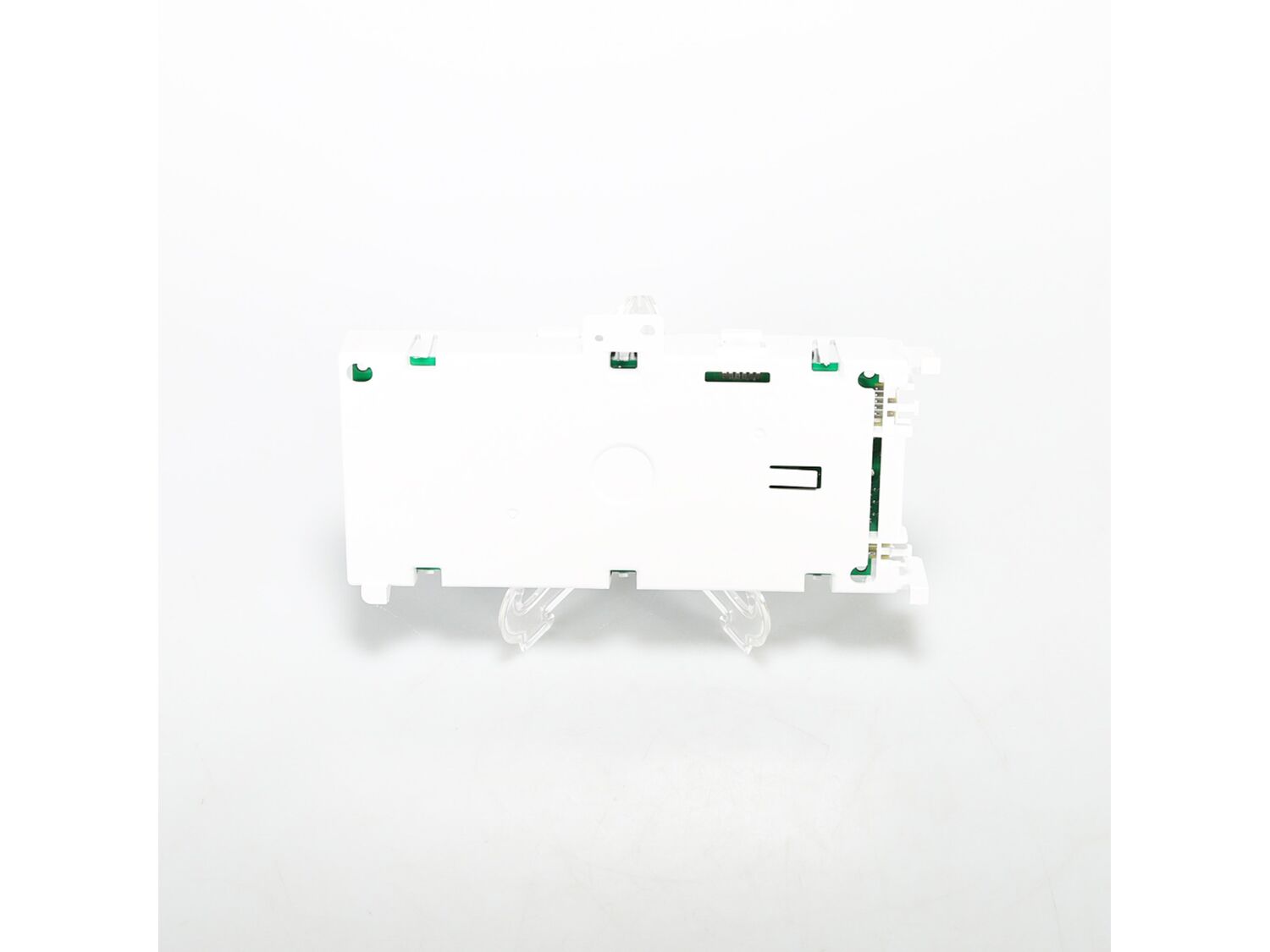

Electronic Control Board WPW10214009

Manufactured by:
Whirlpool
ERP Number:
ERP11750490
Part Number:
WPW10214009
Original Equipment Manufacturer ?
$223.52
Special Order

Does this part fit my model?

Need help finding your model number?

Product Description

?

This dryer electronic control board manages key functions such as cycle timing, temperature settings, and overall operation. It is often replaced when the dryer won’t start, takes too long to dry, or fails to dry clothes properly. Installing the new board is straightforward—unplug the dryer, remove the control panel to access the old board, transfer the wiring to the new one, and secure it in place before reassembling the panel.

Troubleshooting

This part works with the following brands:
  • Maytag
  • Whirlpool
This part works with the following products:
  • Dryer
Part# WPW10214009 replaces these:
W10214009, W10296532,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11750490
Manufacturer Part Number: WPW10214009
Brand Model Number Description
Maytag 7MMGDX700BG0 Dryer - 27" GAS DRYER
Maytag 7MMGDX700YL0 Dryer - 27" GAS DRYER
Maytag 7MMGDX700YL1 Dryer - 27" GAS DRYER
Maytag MEDX700AG0 Dryer - ELECTRIC DRYER
Maytag MEDX700AG1 Dryer - ELECTRIC DRYER
Maytag MEDX700XL0 Dryer - DRYER
Maytag MEDX700XL1 Dryer - ELECTRIC DRYER
Maytag MEDX700XW0 Dryer - DRYER
Maytag MEDX700XW1 Dryer - ELECTRIC DRYER
Maytag MGDX700AG0 Dryer - 27" GAS DRYER
Maytag MGDX700AG1 Dryer - 27" GAS DRYER
Maytag MGDX700XL0 Dryer - DRYER
Maytag MGDX700XL1 Dryer - 27" GAS DRYER
Maytag MGDX700XL2 Dryer - 27" GAS DRYER
Maytag MGDX700XW0 Dryer - DRYER
Maytag MGDX700XW1 Dryer - 27" GAS DRYER
Maytag MGDX700XW2 Dryer - 27" GAS DRYER
Whirlpool YMEDX700AG0 Dryer
Whirlpool YMEDX700AG1 Dryer
Maytag YMEDX700XL0 Dryer
Whirlpool YMEDX700XW0 Dryer
Whirlpool YMEDX700XW1 Dryer
