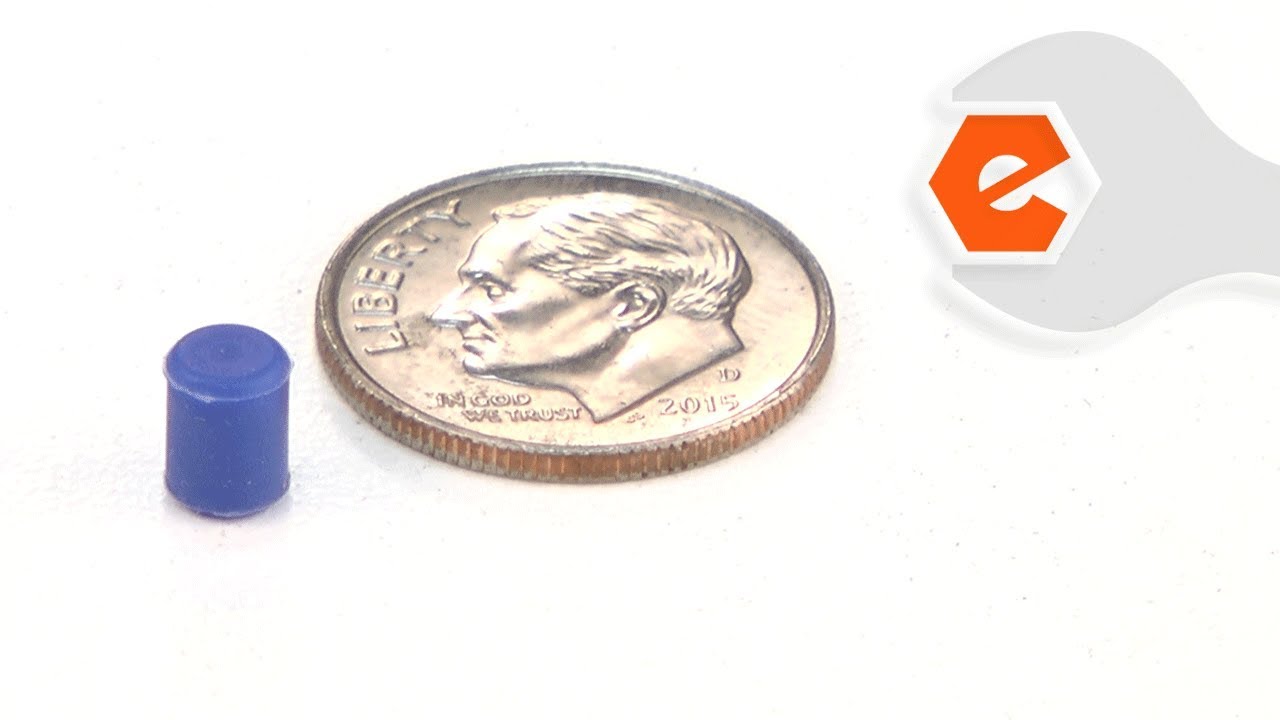

This item is a genuine Makita replacement part that has been OEM sourced to ensure quality. The rubber pin is intended to be used with impact drills/drivers, shears, and drywall screwdrivers. The rubber pin is used to provide spacing between the brush card and the housing assembly. This item is sold as a single part.
Troubleshooting
This part works with the following brands:
Makita
This part works with the following products:
Drill
Screwdriver
Cordless Drill
Impact Driver
Nibbler & Shears
Hammer Drill
Videos For installing this part.
?
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed all screws holding casing and power head, separated case removed motor replaced armature, removed brush holder and 2 screws from trigger, installed new brush holder wires on trigger make sure which ones are red and black, re assembled in reverse order total time was maybe 20 minutes, make sure notch on motor lines in with the not
... Read morech in the case.
1. Disassembled impact driver. (remove screws from end cap, body halves)
2. Removed damaged brushes, springs, and electrical clips.
3. Disconnected brush-holder electrical feed wires from electrical source. (screws)
4. Removed damaged brush-holder.
5. Installed new brush-holder.
6. Connected brush-holder ele
... Read morectrical feed wires to electrical source. (screws)
7. Installed new brushes, springs, and electrical clips.
8. Assembled impact driver. (installed screws in body halves, end cap)
Read less
Did you find this story helpful?
Thank you for voting!
Older makita drill overheated and melted the brush holder and armature
1. Remove two screws on rear of drill and remove cap taking care not to lose small plugs (smaller than pencil eraser).
2. Remove screw side half of drill housing observing damage and parts orientation. Note there is one screw inside the back cap to unscrew as well.
3. Remove damaged parts and add replacement parts in same ori
... Read moreentation. I checked a newer drill for reference, but should have taken a photo before I started.
4. Reassembled taking care on the trigger lock and speed shifter since they try to get out of alignment. There is also a small \"T\" shaped piece of curved steel that aligns in a groove forward of the chuck. It fell out loose on mine.
5. Check drill operation.
Unscrewed screws and took case apart.
Replaced anvil
Replaced brushes
Added rubber pin in case back end (i lost it)
Replaced case with new parts, added label
I now have a brand new impact driver
I also used a video available on ereplacementparts, was a great asset and explained and showed the rep
... Read moreair.
Read less
Did you find this story helpful?
Thank you for voting!
over heated & burned fan blades on armature & melted those to brush holder
1) Removed battery
2) Removed screws from case and set aside one half of the case
3) Removed old brush holder from case and disconnected wiring from the trigger
4) Moved magnet coil retention bracket out of the way
5) Removed armature screws from front of drill around chuck
6) Twisted plastic armature retaine
... Read morer and pulled armature assembly out of drill body, taking care not to damage the planetary gears
7) Transferred plastic armature retainer to new armature
8) Transferred magnet coil to new armature and installed the assembly
9) Installed new brushes in new brush holder
10) Installed new brush holder assembly in drill body and connected to the trigger
11) Transferred speed selector switch to new armature.
12) Installed new Rubber Pins into back of drill case
13) Reinstalled magnet coil retention bracket
14) Reassembled drill case and tested
Read less
Did you find this story helpful?
Thank you for voting!
