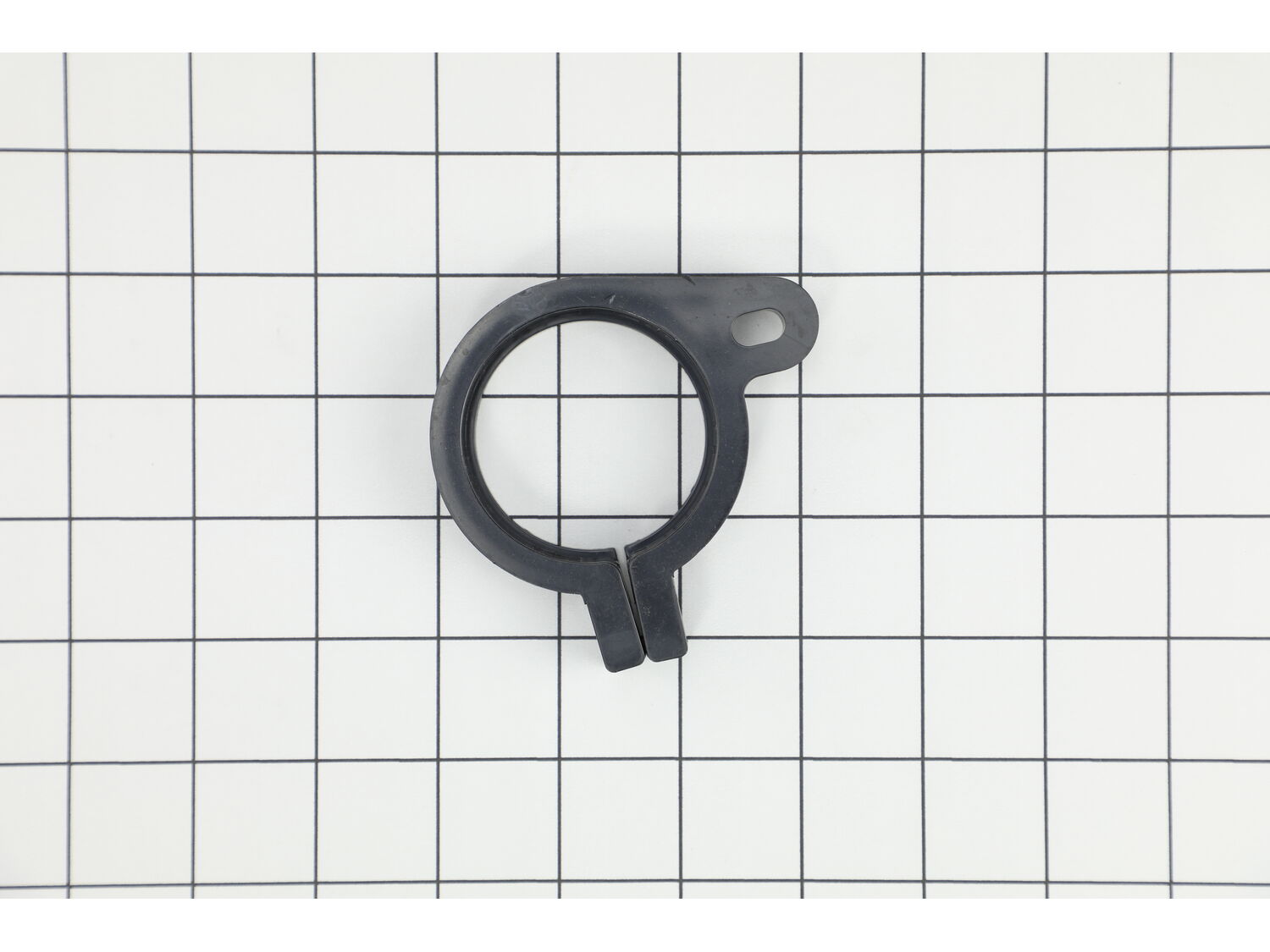

( Grid squares measure 1x1 inch )

Depth Adjustment 089140314072

Manufactured by:
Ryobi
ERP Number:
ERP16237372
Part Number:
089140314072
Original Equipment Manufacturer ?
  Works with your model  DP103L!
$6.26
On Order

Easy

Less than 15 mins

(2 rated repairs) ?
  Works with your model   DP103L!

Troubleshooting

This part works with the following brands:
  • Ryobi
This part works with the following products:
  • Drill Press

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(2 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Plastic depth collar broke

Bill from Broomall, Pennsylvania

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver, Screw drivers
Parts Used:
089140314072
1. Slide collar over metal ring
2. Align hole with depth gauge
3. Insert depth stop and tighten
4. Insert allen screw in back and tighten
Did you find this story helpful?
Thank you for voting!

Broken at tighting screw

Jeffrey from Durham, North Carolina

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
089140314072
1. Removed the broken part
2. Attached the replacement part
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP16237372
Manufacturer Part Number: 089140314072
Brand Model Number Description
Ryobi DP103L Drill Press - 10-Inch Drill Press W/Laser
