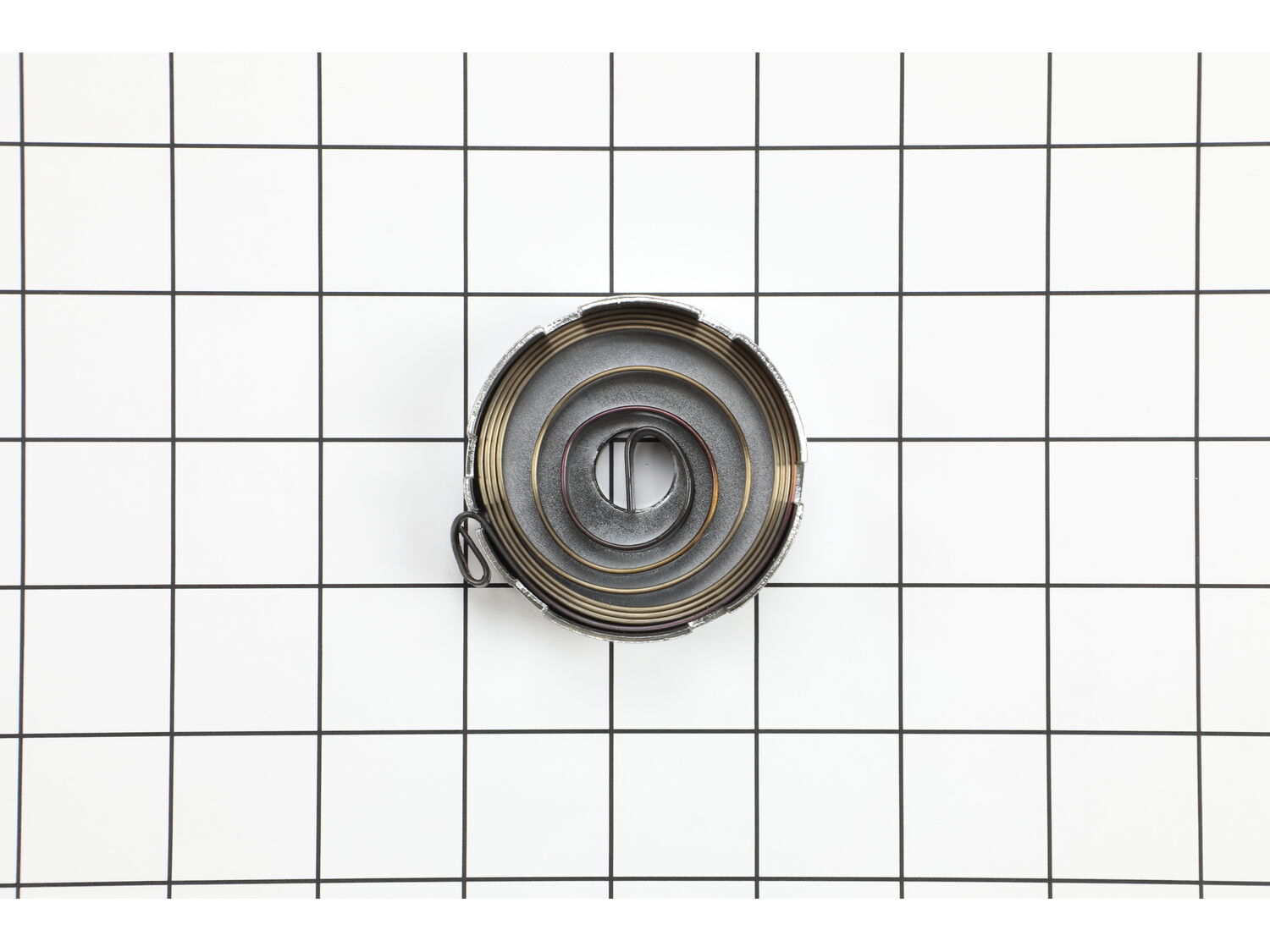

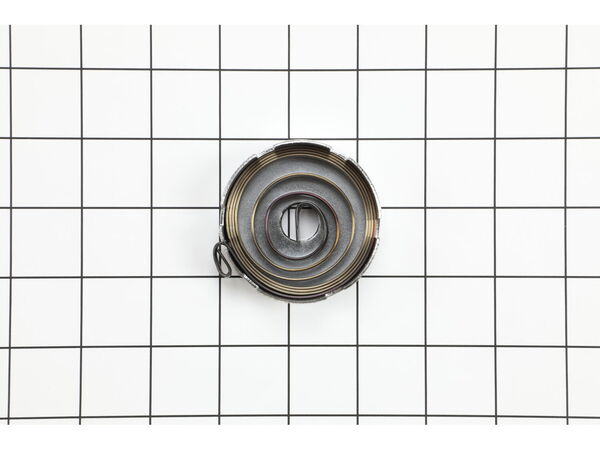

Genuine Delta replacement part, this part with 2 part. The Delta 1310082 Spring With Housing is the part of the drill presses listed below that returns the drill chuck back to its original position after using the drill press. This part contains the spring and the spring housing.
Troubleshooting
This part works with the following brands:
Delta
Milwaukee
This part works with the following products:
Drill Press
★
Customer Part Reviews
?
4.8
Average Rating (out of 5):
★★★★★
★★★★★
(10 Reviews)
Click to filter by ratings:
5 stars
8
4 stars
2
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
have not installed yet, part of a community workshop that reopens after labor day
The part was for a vintage Delta drill press and the part was back ordered. Liked the straight forward way the your company handled the delay. Status notices, offer to cancel, and finally delivery. Have not installed the but looks like the broken part. Thanks
Guest - August 23, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair.
Arrived very quickly. Only place I could find this part for my 20+ year old Delta Drill Press. Great site for parts.....
Guest - August 27, 2019
Verified Purchase
★★★★★
★★★★★
Great part - just what was needed to fix the problem!
The part contains the spring that controls the handle movement in an up and down direction...retracts upward after pressure is released on the handle. What we had was broken, but now the drill press is working just like brand new!
Guest - September 24, 2019
Verified Purchase
★★★★★
★★★★★
Exact
Part was exactly as ordered. Always good service and good products.
Howard - November 26, 2019
Verified Purchase
★★★★★
★★★★★
Perfect match
The part I ordered was for an older delta drill press and it was a perfect match it arrived in a timely manner only down side was I’m in canada and the exchange rate was high so it was costly but the drill press works again.thanks chris
Iglobal - March 17, 2023
Verified Purchase
★★★★★
★★★★★
Worked great
As described
Guest - July 24, 2023
Verified Purchase
★★★★★
★★★★★
Easily installed the spring and housing
The spring assembly fit perfectly and with a little tension adjustment, my drill press was back in action.
Guest - April 28, 2024
Verified Purchase
★★★★★
★★★★★
Quick repair
After receiving the replacement part it was installed with only minor alterations. Surprising for an old machine!
Guest - March 20, 2025
Verified Purchase
★★★★★
★★★★★
It was an easy fix.
The worst part was the part was not available in a timely manner. Really wasn't your fault but is was bad timing. otherwise it was nice to be kept updated.
Guest - August 22, 2019
Verified Purchase
★★★★★
★★★★★
Drill Press return spring
This return spring is stock; looks great, like the original and is ready to work. I was quite happy to find this and easily. The woman E Replacements, who helped was professional, went right to the part, ordered it and shipped it. Thank you for having this part!
Guest - May 17, 2023
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
No special instructions.Take apart old spring using 2 nuts. Insert the new spring, set the spring, moving the outer holder until drill bit returns well. Tighten the 2 nuts but not too much. Hold the lnner nut with a wrench and tight the outer nut. Done
1. Removed the two retaining nuts, then removed spring housing unit.
2. Cleaned and re-lubricated shaft mechanism.
3. Installed the spring housing unit, and the two retaining nuts.
4. Adjusted retaining nuts to eliminate end play in shaft, tightened nuts.
5. Easy. A 5 year old could do it......an engineer - not so
... Read moremuch.
Read less
Did you find this story helpful?
Thank you for voting!
Quill would not return to home position - coil return spring broken.
Use 3/4\" open end wrenches (2) to remove the return spring assembly.
Install the replacement return spring assembly.
Adjust the tension on the return shaft so the force required to move the quill is comfortable and the quill returns home completely.
There is a plate with 3 tabs on it that goes between the spring and the body of the press. These tabs fit into the spring housing. On my press this \"old\" plate does not fit the new housing. Therefore I had to slightly grind the edges of two of the tabs to make it fit.
Other than that throw a few turns on the spring and housing and
... Read more good as new.
Remove the 2 outer nuts
Slide off chrome cover
Slide off old spring
Slide on new spring
Slide on new cover
Adjust tension on spring by turning chrome cover
Tighten nuts
Complete
Removed the broken spring by breaking the jam nut contact with two wrenches. Removed the nuts and slid the cover and spring off the feed bolt. Replaced the broken spring and cover with the new parts, then put the nuts back in place loosely so that the spring and cover could be \"wound-up\" to provide the return tension. Increased the sp
... Read morering tension by turning the spring and cover, held the position and tightened the first nut and then tightened the jam nut against the first nut.
1. Remove double nuts on returning rod,
2. Remove Spring housing,
3. Set new spring, making sure the inside tab is set in the notch in the rod,
4. I found it easier to put the housing and partially thread back on at least one of the nuts to keep the whole assembly in place while I tensioned it;
5. With the spindle
... Read moreentirely retracted, rotate the spring housing to give it tension;
6. Further tighten (but not completely) the nut so the housing can\'t snap back - WATCH YOUR FINGERS!! - and test the return tension by bringing the spindle down completely and seeing how it returns back to its return position;
7. I fiddled with it some to get the right amount of tensioning - for me, it was enough to bring the spindle most of the way up without being violent about its return.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
2
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10315885
Manufacturer Part Number: 1310082
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
