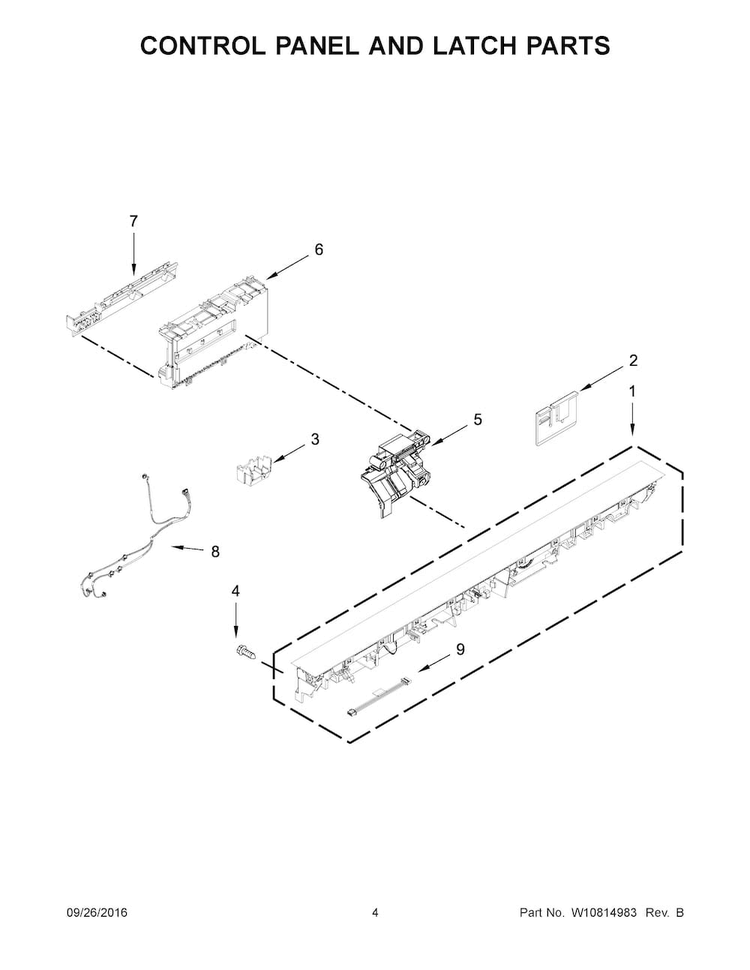

Part Location Diagram of W10866124 Whirlpool Electric Control Board
See part 6 in the diagram

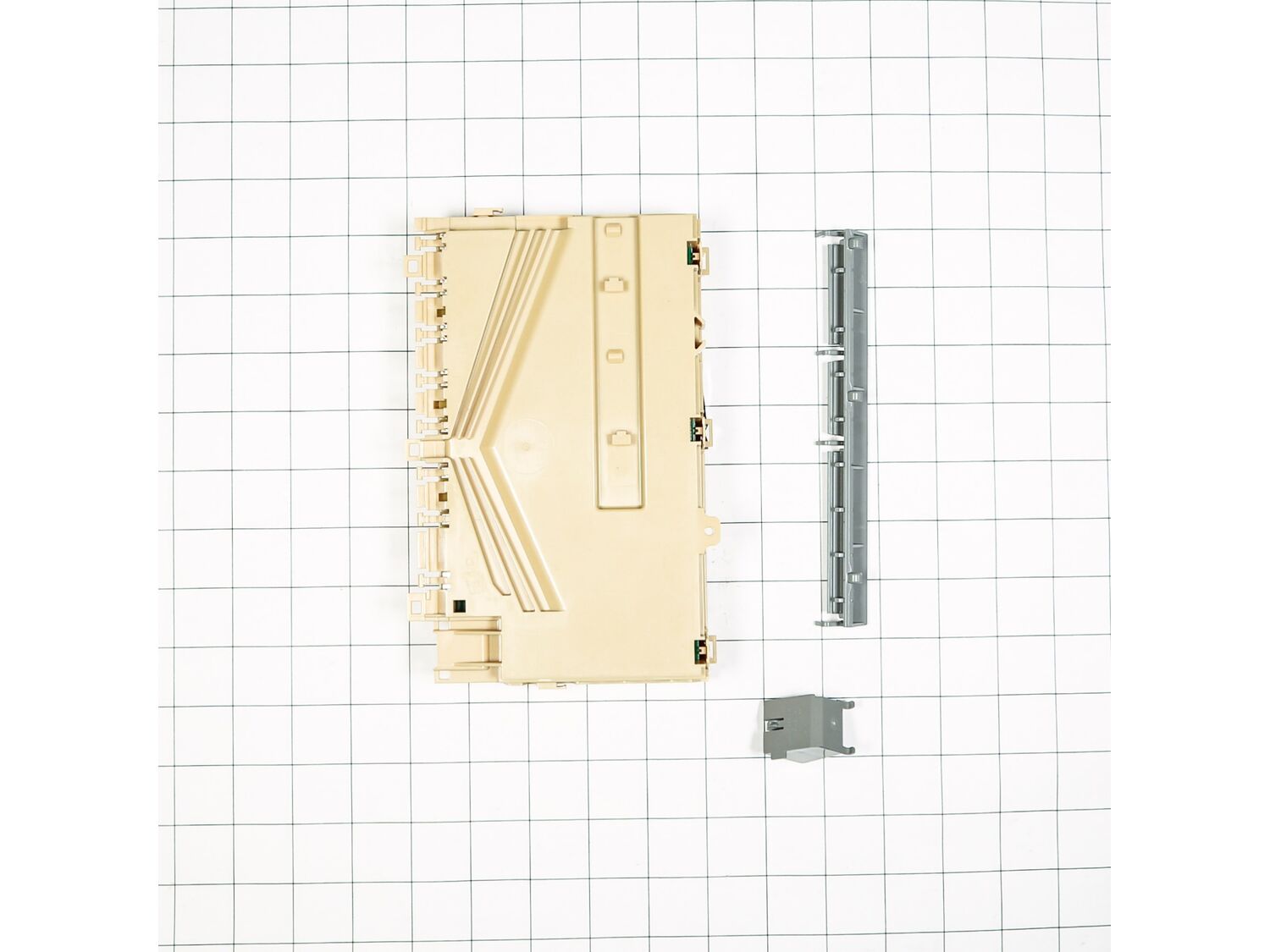

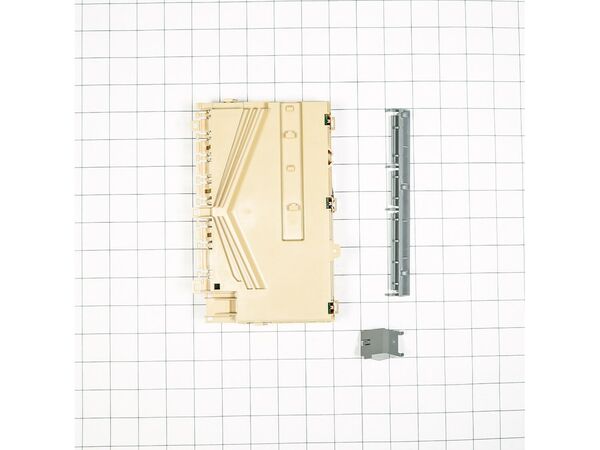

( Grid squares measure 1x1 inch )

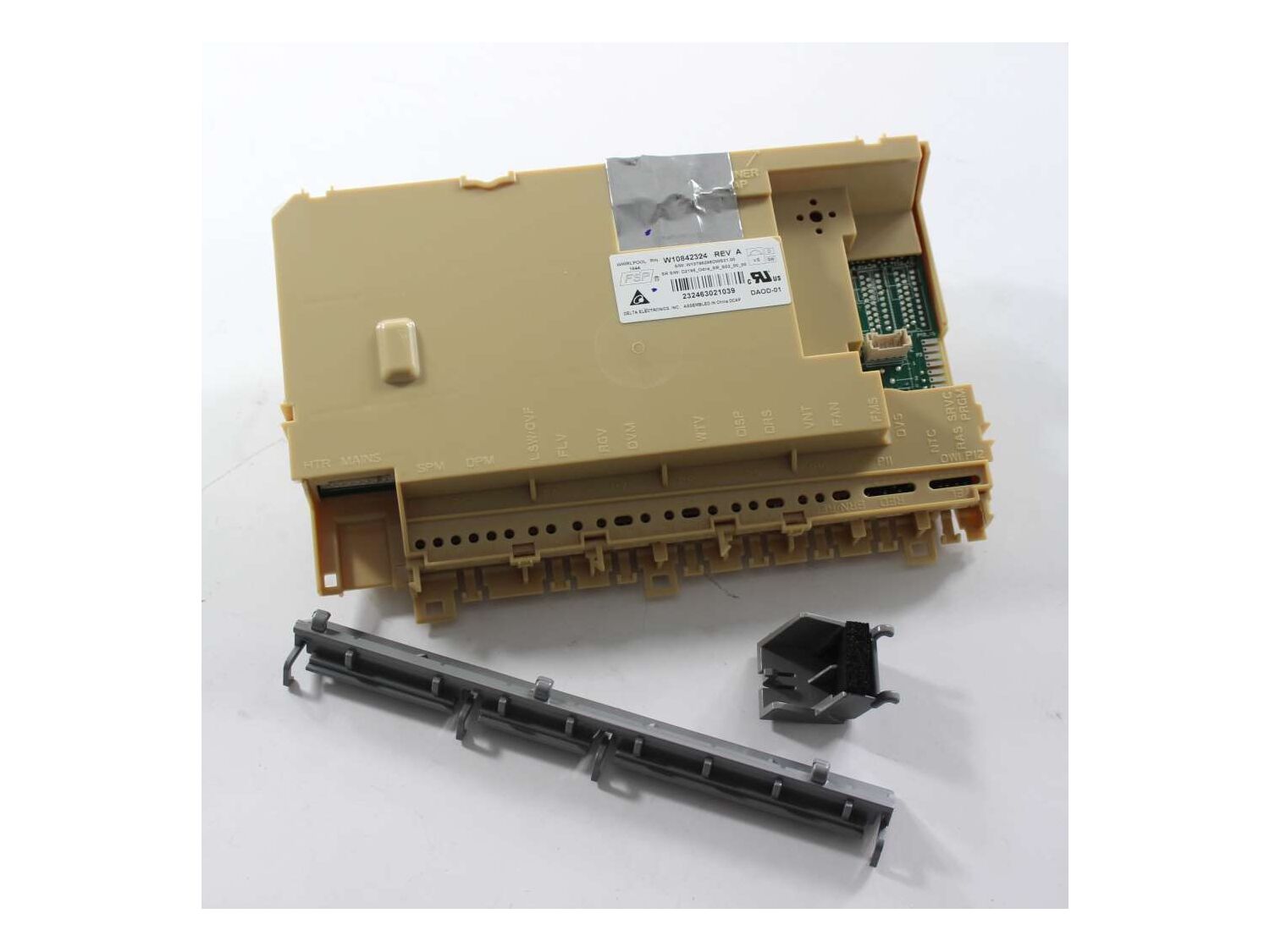

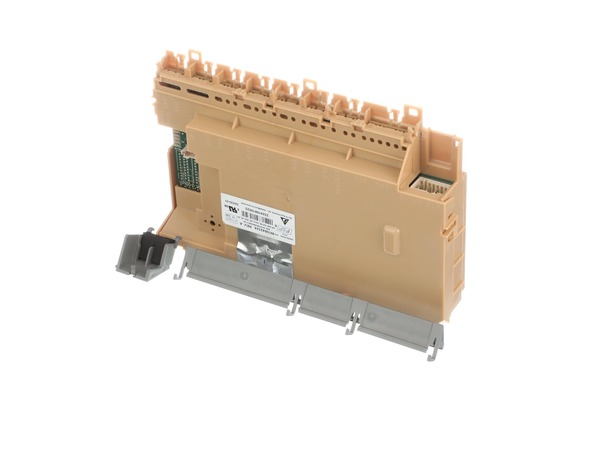

Electric Control Board W10866124

Manufactured by:
Whirlpool
ERP Number:
ERP11759624
Part Number:
W10866124
Original Equipment Manufacturer ?
$190.17
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • KitchenAid
This part works with the following products:
  • Dishwasher
Part# W10866124 replaces these:
W10707999, W10731490, W10796287, W10813318, W10842324,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11759624
Manufacturer Part Number: W10866124
Brand Model Number Description
KitchenAid KDTE254EBL0 Dishwasher - DISHWASHER
KitchenAid KDTE254EBL1 Dishwasher - DISHWASHER
KitchenAid KDTE254EBL2 Dishwasher - DISHWASHER
KitchenAid KDTE254ESS0 Dishwasher - DISHWASHER
KitchenAid KDTE254ESS1 Dishwasher - DISHWASHER
KitchenAid KDTE254ESS2 Dishwasher - DISHWASHER
KitchenAid KDTE254EWH0 Dishwasher - DISHWASHER
KitchenAid KDTE254EWH1 Dishwasher - DISHWASHER
KitchenAid KDTE254EWH2 Dishwasher - DISHWASHER
