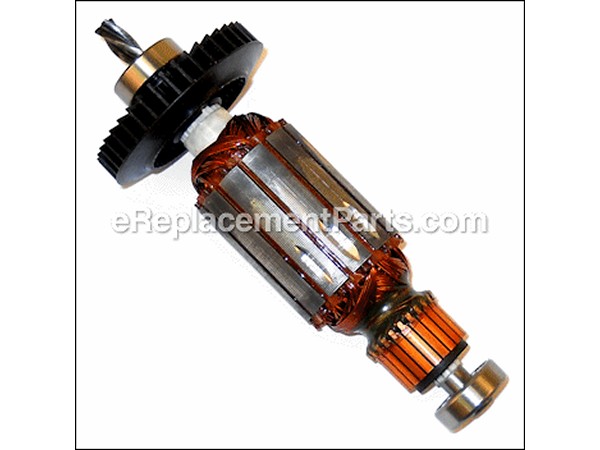

ARMATURE 2609120234

Manufactured by:: Bosch Tool
ERP Number:: ERP19510021
Part Number:: 2609120234

$62.59

A Bit Difficult

30 - 60 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Bosch

This part works with the following products:

Demolition Hammer
Hammer Drill
Impact Driver

Part# 2609120234 replaces these:

2609120234,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Bearing on brush assembly wore out

Joseph from Hugo, Minnesota

0 of 1 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 30 - 60 mins
Tools:: Screw drivers
Parts Used:: 2609120234

1. Took apart the hammer drill by unscrewing the screws that held both halves of the drill together.
2. Removed and replaced the part.
3. Reassembled the drill and tested the repair.
4. Did my happy dance.

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP19510021
Manufacturer Part Number: 2609120234

Brand	Model Number	Description
Bosch	1191VSR	Hammer Drill - Hammer Drill
Bosch	1191VSRK	Demolition Hammer - 1/2 in. Corded Hammer Drill
