Part Location Diagram of 1619P01709 Bosch Tool ARMATURE
See part 803 in the diagram

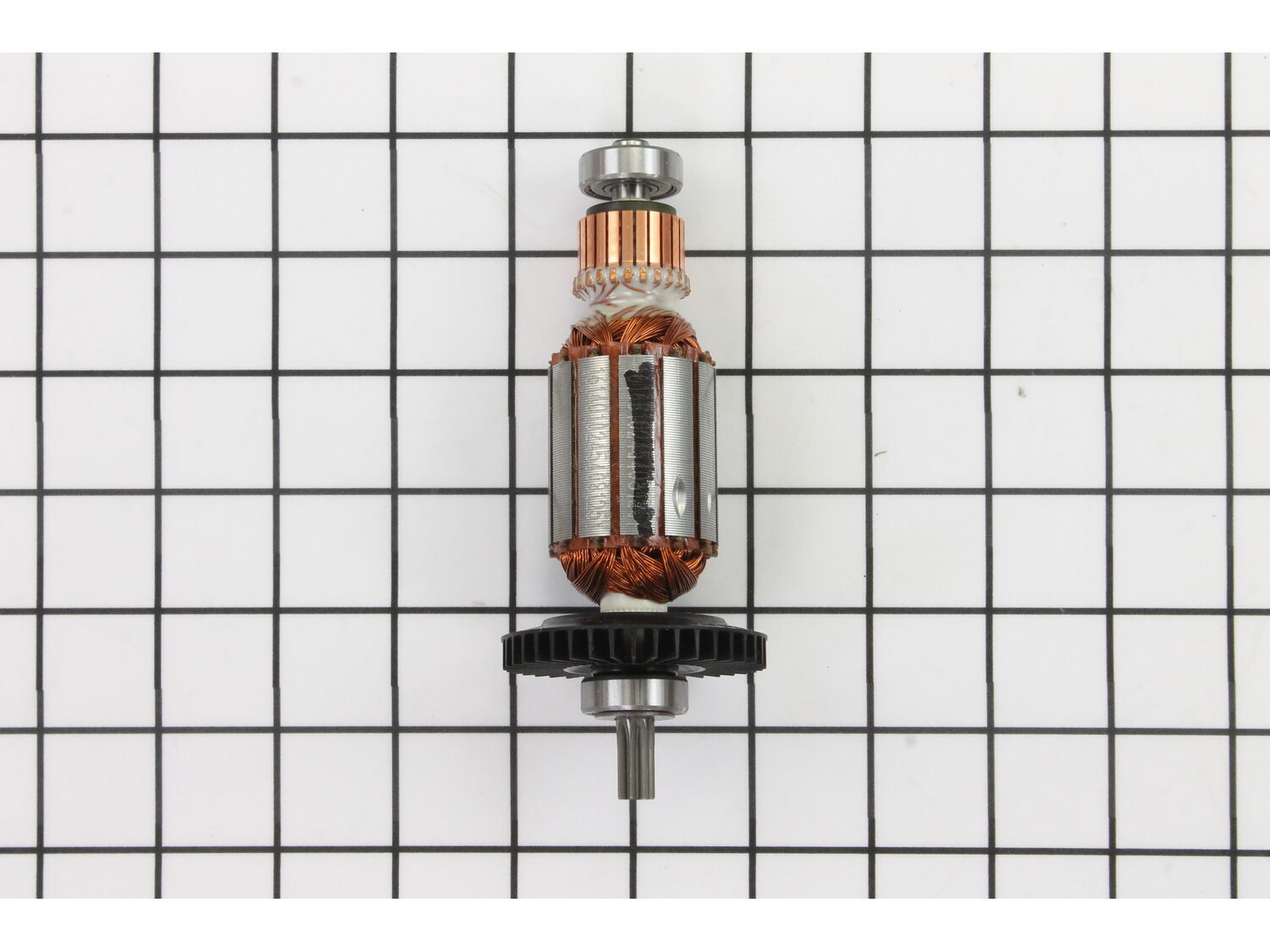

( Grid squares measure 1x1 inch )

ARMATURE 1619P01709

Manufactured by:
Bosch Tool
ERP Number:
ERP19505214
Part Number:
1619P01709
Original Equipment Manufacturer ?
$89.39
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Bosch
This part works with the following products:
  • Demolition Hammer
  • Hammer Drill
Part# 1619P01709 replaces these:
1619P01709,

Model Cross Reference

This part works with the following models:
ERP Number: ERP19505214
Manufacturer Part Number: 1619P01709
Brand Model Number Description
Bosch 11258VSR Demolition Hammer - 5/8 SDS-plus Concrete Drill
Bosch GBH2-18RE Hammer Drill - Rotary Hammer
