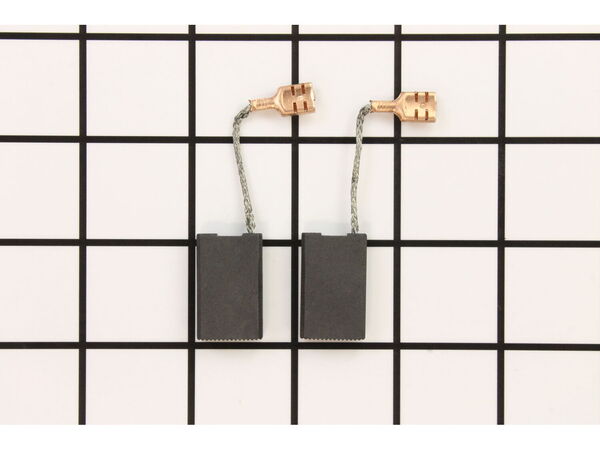

Part Location Diagram of 1617014126 Bosch Tool BRUSH SET
See part 842/050 in the diagram
( Grid squares measure 1x1 inch )

BRUSH SET 1617014126

Manufactured by:
Bosch Tool
ERP Number:
ERP19504857
Part Number:
1617014126
Original Equipment Manufacturer ?
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(4 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Bosch
This part works with the following products:
  • Demolition Hammer
Part# 1617014126 replaces these:
  • 1617014126

Customer Part Reviews

?
4.5
Average Rating (out of 5):
★★★★★
★★★★★
(4 Reviews)
Click to filter by ratings:
  • 5 stars
    3
  • 4 stars
    0
  • 3 stars
    1
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(4 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Not running.

Albert from Briarcliff Manor, New York

9 of 9 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
1617014126, 1604460092
Always check cord and brushes first. in 5 of the last tools I repaired brushes were needed. The cord was broken at the strain relief. To replace the brushes I removed the motor housing, which exposed the brushes. Pull the springs back and rested them on the brush holder. Disconnected the old brushes and installed the new ones. For the c ord. I removed the handle then unscrewed the cord clamp.Removed the cord leads from the switch, removed the cord relief, slid the cord relief on the new cord, then connected the cord leads to the switch.
Did you find this story helpful?
Thank you for voting!

Brushes worn badly and screws missing from vibration

Stewart from Vernon, New Jersey

3 of 3 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
2914551114, 1617014126
To get at the brushes on a Bosch chipping gun, remove the screws that hold the trigger handle (two are under the switch plate just pop it off with a screwdriver) slid out the brush covers, using a dental tool pull the spring up away from the brush and pull the brush out, replace with new brush, pull off the wire connector and replace with new. slide covers back in and put handle cover back on. Pop the switch plate back on, may have to move it back and forth a little to get back in position.
Did you find this story helpful?
Thank you for voting!

Service light came on

Patrick from San Martin, California

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Parts Used:
1617014126
Pulled off cover that mounted the armature of the motor. Pulled the removable electrical clips off of that assembly. Massaged the part that holds the brushes to clear the armature and the housing. I did not separate them which would have required a puller. I was able to carefully replace each of the brushes with the new ones. Reassembled with gear grease on the gears on the other end of the motor. Tested, and it is back in service with the service light extinguished.
Did you find this story helpful?
Thank you for voting!

Brush, Chuck cover

oscar from Miami, Florida

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
1617014126, 450894-7
Replaced the old with the new.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP19504857
Manufacturer Part Number: 1617014126
Brand Model Number Description
Bosch 0611317739 Demolition Hammer - Demolition Hammer
Bosch 11223EVS Hammer Drill - Rotary Hammer
Bosch 11245EVS Demolition Hammer - Rotary Hammer
Bosch 11311EVS Demolition Hammer - Demolition Hammer
Bosch 11316 Demolition Hammer - Demolition Hammer
Bosch 11316EVS Demolition Hammer - Demolition Hammer
Bosch 11317EVS Demolition Hammer - Demolition Hammer
Bosch MISC Miscellaneous - Misc
