Part Location Diagram of 1614617003 Bosch Tool COMPRESSION SPRING
See part 44 in the diagram

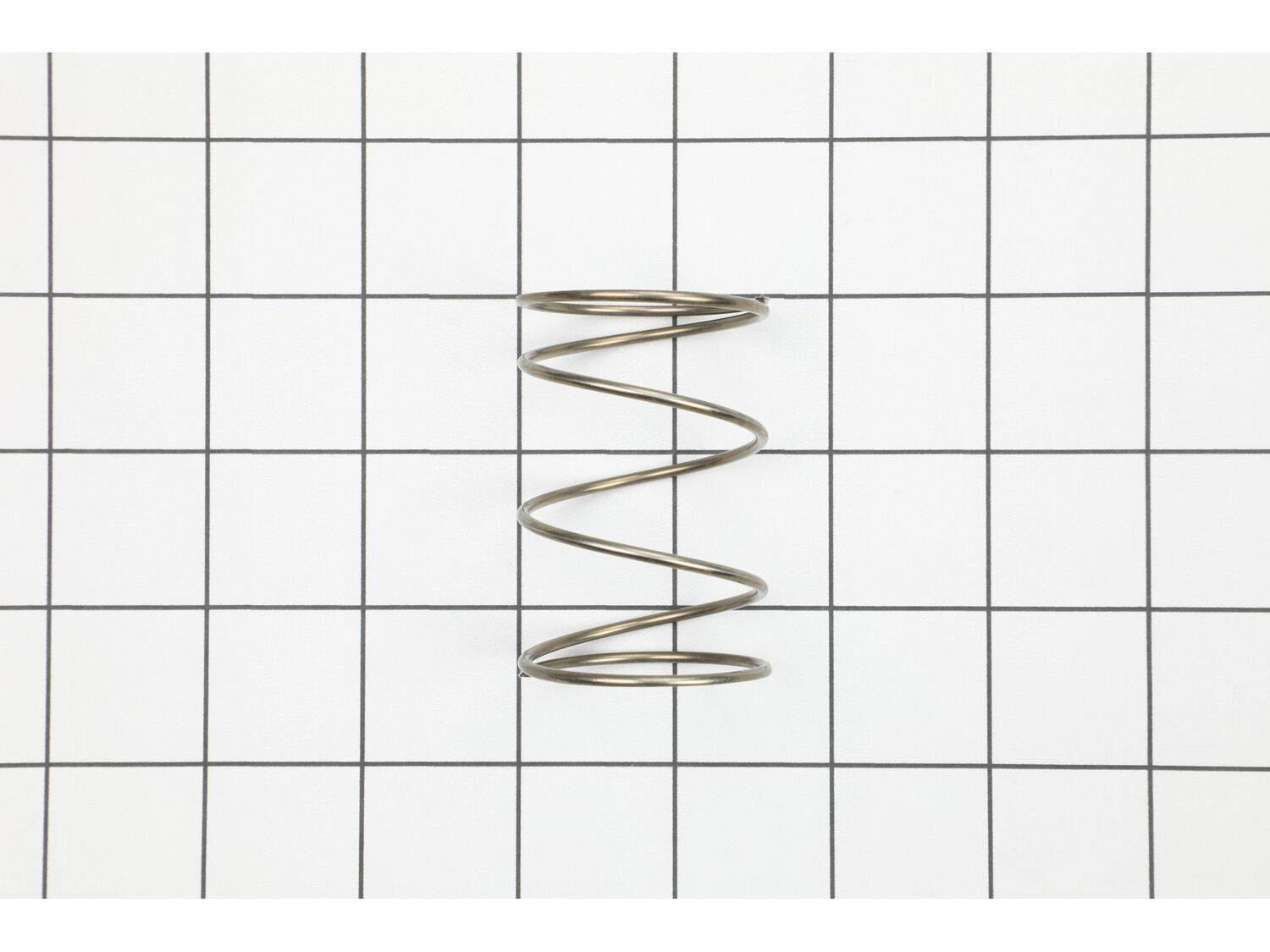

( Grid squares measure 1x1 inch )

COMPRESSION SPRING 1614617003

Manufactured by:
Bosch Tool
ERP Number:
ERP19504159
Part Number:
1614617003
Original Equipment Manufacturer ?
$7.10
Special Order
Minimum Quantity of 2 required

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Bosch
This part works with the following products:
  • Demolition Hammer
  • Hammer Drill
Part# 1614617003 replaces these:
1614617003,

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Model Cross Reference

This part works with the following models:
ERP Number: ERP19504159
Manufacturer Part Number: 1614617003
Brand Model Number Description
Bosch 11240 Demolition Hammer - (06039) Rotary Hammer
Bosch 11241EVS Demolition Hammer - Rotary Hammer
Bosch 11247 Demolition Hammer - (06039) Rotary Hammer
Bosch 11248EVS Demolition Hammer - Rotary Hammer
Bosch GBH5-38 Hammer Drill - Rotary Hammer
Bosch GBH5-38D Hammer Drill - Rotary Hammer
Bosch GBH5-40DE Hammer Drill - Rotary Hammer
Bosch GBH538X Hammer - Rotary Hammer
