Part Location Diagram of 200521002 Ryobi END CAP / HSG ASSEMBLY W/LABEL
See part 20 in the diagram
( Grid squares measure 1x1 inch )

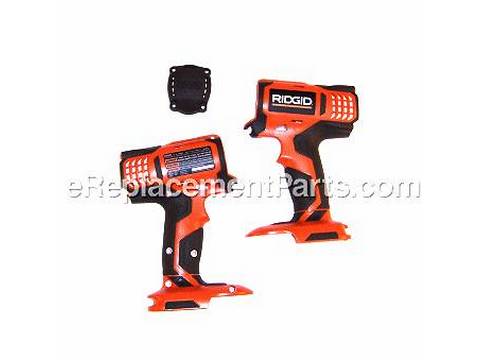

END CAP / HSG ASSEMBLY W/LABEL 200521002

Manufactured by:
Ryobi
ERP Number:
ERP18691782
Part Number:
200521002
Original Equipment Manufacturer ?
  Works with your model  R86006!
$30.00
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(1 rated repair) ?
  Works with your model   R86006!

Product Description

?

Includes part numbers 940114117, 342975001, 512976001 and 940078072, 940976088 and 940263176

Troubleshooting

This part works with the following brands:
  • Ridgid
This part works with the following products:
  • Cordless Drill
Part# 200521002 replaces these:
200521001, 200521002, 516012001,

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

End cap broken

Jim from Sebastian, Florida

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
200521002
Removed screws. Removed part. Replaced part. Replaced screws. Vendor also replaced l & r housing. Very impressed. Highly recommend
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP18691782
Manufacturer Part Number: 200521002
Brand Model Number Description
Ridgid R86006 Cordless Drill - Cordless Drill
