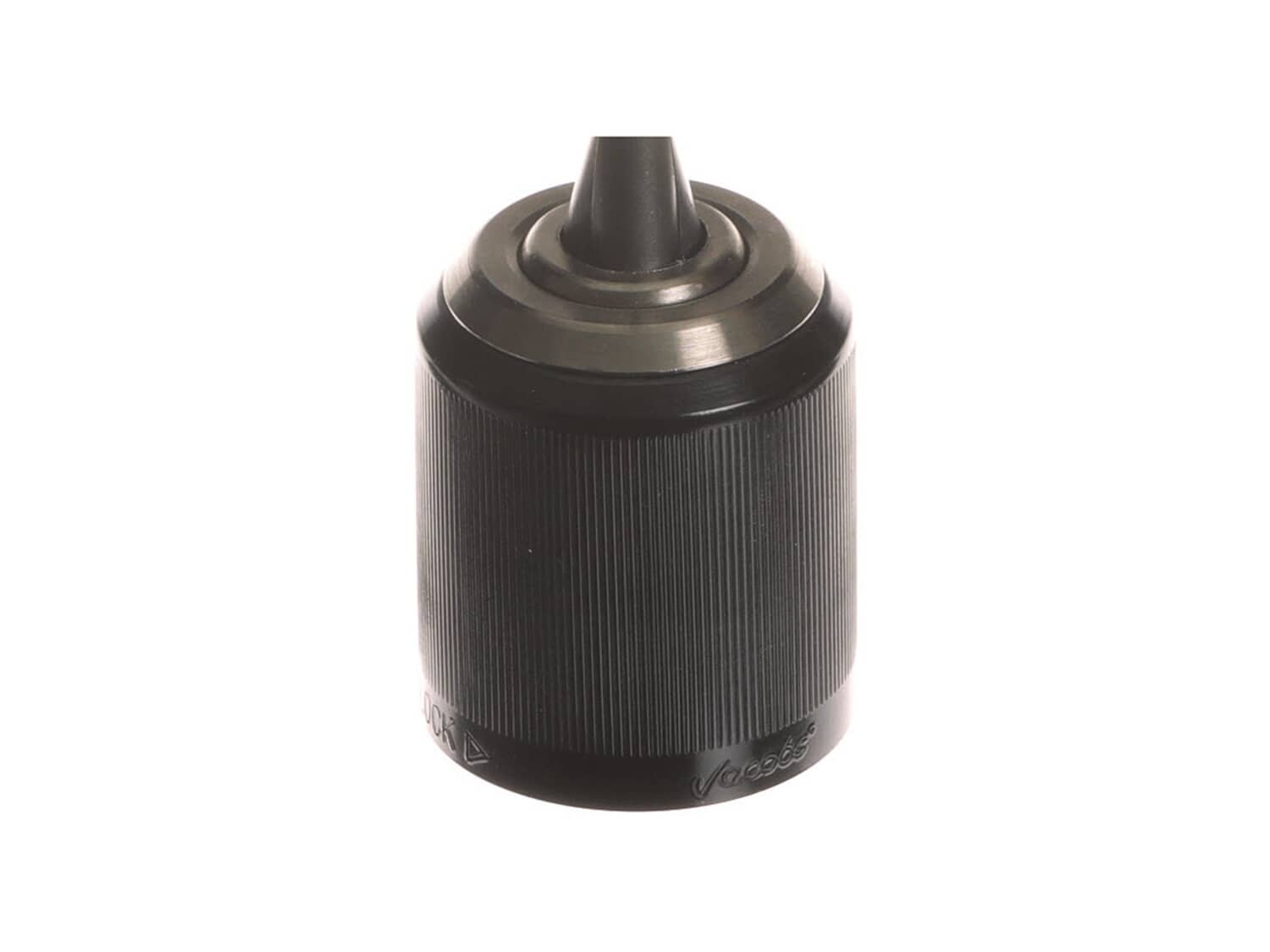

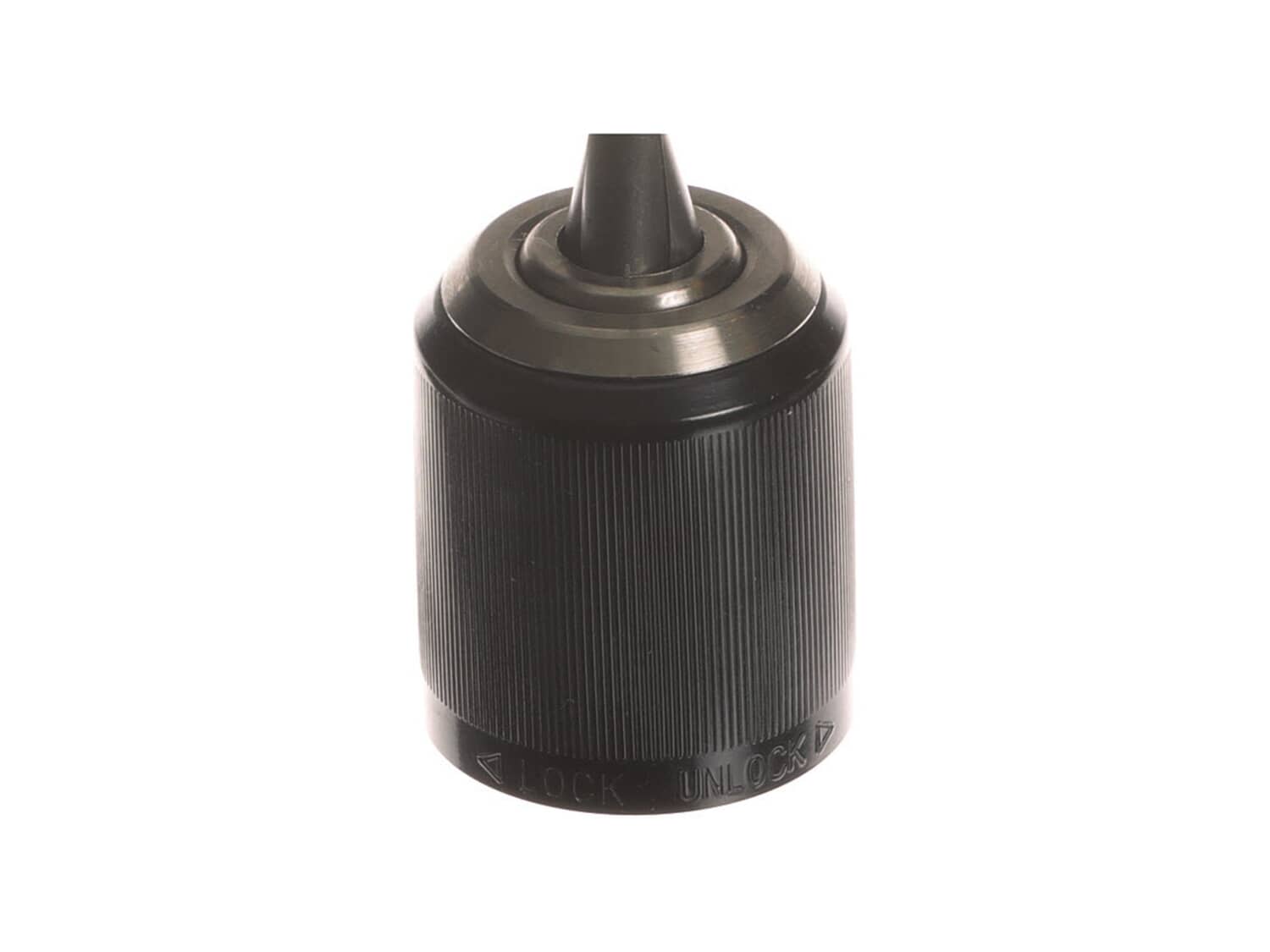

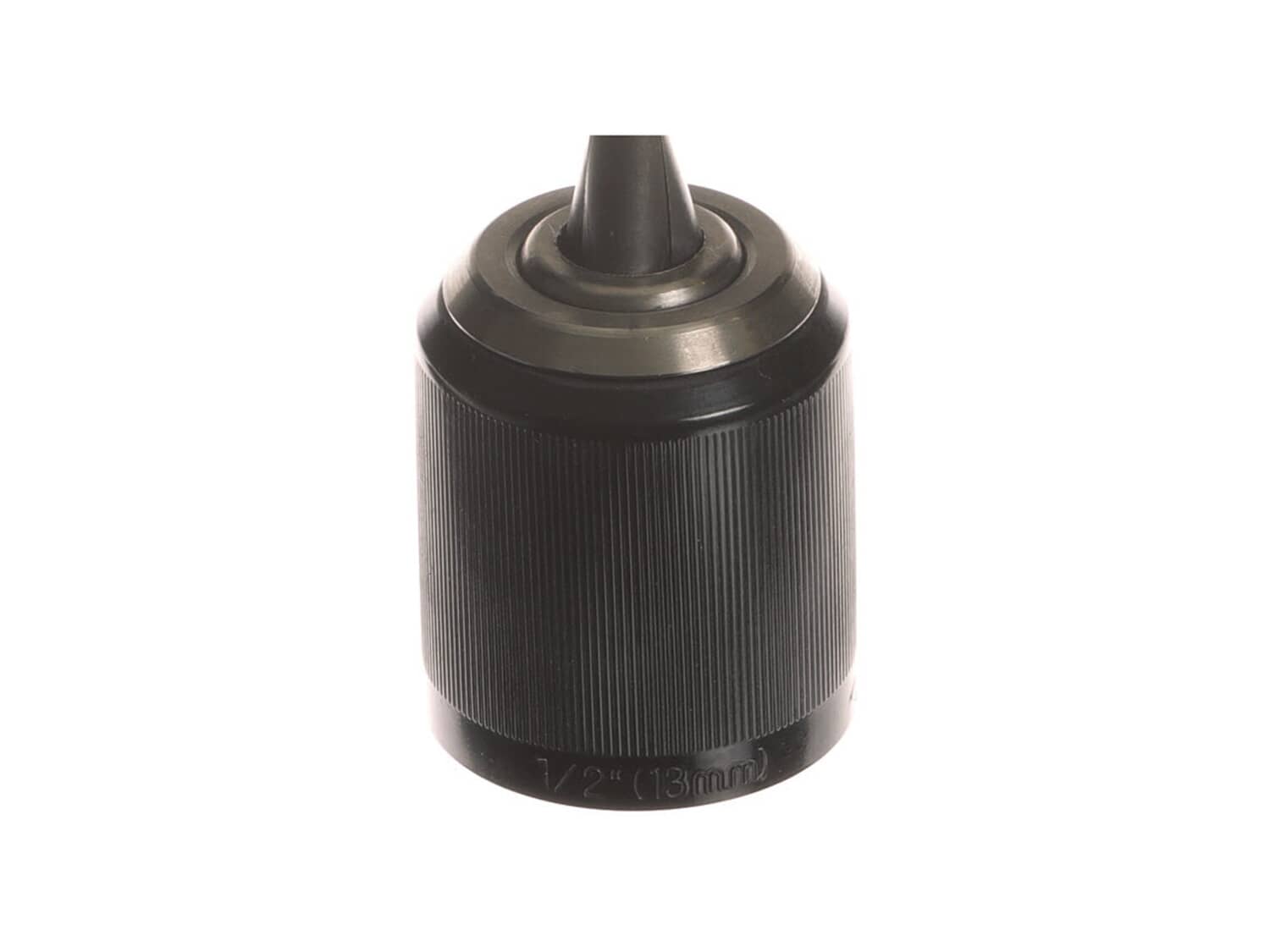

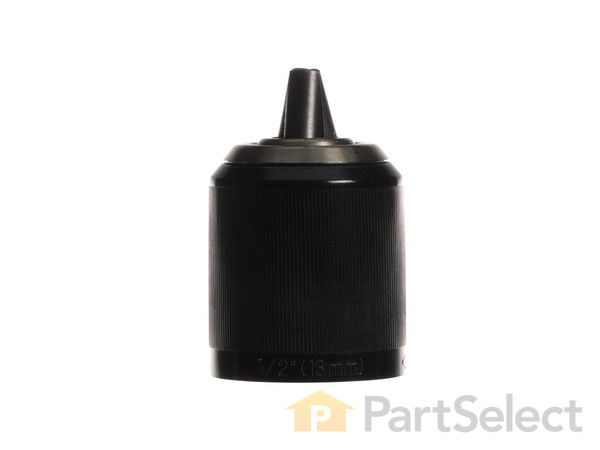

This is an authentic OEM supplied replacement part made for Ridgid hammer drill. Its purpose is to hold drill bits. This is a keyless chuck allowing for fast and easy exchange of bits without any tools. Includes one (1) chuck per order. Please note the chuck screw is sold separately. To complete this repair you would need a screwdriver. • Remove screw that holds chuck • Replace old chuck with a new one • Reassemble and test the unit
Troubleshooting
This part works with the following brands:
Ridgid
This part works with the following products:
Cordless Drill
Hammer Drill
★
Customer Part Reviews
?
4.7
Average Rating (out of 5):
★★★★★
★★★★★
(7 Reviews)
Click to filter by ratings:
5 stars
5
4 stars
2
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Fast easy reliable
great conditions, good product, fast shipping.
Guest - July 18, 2020
Verified Purchase
★★★★★
★★★★★
Fit well
The part is well constructed and fit well for my ridgid hammer drill. In my case I had to cut my old chuck since it was stuck. I did it carefully to avoid damage the screw. It save me to buy a new one hammer drill
Guest - October 23, 2020
Verified Purchase
★★★★★
★★★★★
Easy repair
Excellent!!
Guest - December 31, 2021
Verified Purchase
★★★★★
★★★★★
Excellent site
Drill works great.
Guest - January 19, 2022
Verified Purchase
★★★★★
★★★★★
Quick and easy
Appreciate the help
Guest - February 5, 2022
Verified Purchase
★★★★★
★★★★★
Craftsman cordless drill
transposed part number, but it fit another craftsman drill that needed new chuck. Used contact us on web site to ask question but never received an answer, guess you need to call for help
Guest - October 17, 2023
Verified Purchase
★★★★★
★★★★★
Worked as it should
Part came in good condition. Was delivered when expected. Easy to order.
Guest - March 1, 2024
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I did this at work with a Linesman, Allen key and screwdriver. Not the best setup but I needed my drill to work.
I placed short end of the Allen key in the chuck and set my drill to hammer mode, speed setting 1 and drive torque to 24. Laying my drill on a pile of sheetrock, I smacked the long side of the Allen key clockwise t
... Read moreo help loosen the screw that keeps the chuck in. I removed Allen key and the chuck screw and then placed the Allen key back in the chuck and smacked it a few times counter clock wise which eventually loosened the chuck for removal.
Then I placed the Allen key in my new chuck and installed on my drill. I did this because screwing the new chuck on the drill will close the jaws and if your not careful, you may not unlock the jaws if the chuck is not all the way seated onto the drills thread boss. Keeping the Allen key in the new chuck will prevent the jaws from accidentally closing. Once the chuck is in, install the chuck screw and done
I could not open the Chuck, used a grinder to cut chuck in half .
Then used Phillips screwdriver to remove screw. Then a pipe wrench and ran the drill backwards to remove chuck.
This is not the first chuck that I have replaced, but the factory installed chuck was installed so tight that I had to cut it off with a band saw. After that the repair went easy.
Did you find this story helpful?
Thank you for voting!
Chuck surface was worn down and difficult to hold when changing bits
1. Opened chuck
2. Removed screw with reverse thread
3. Put chuck key in place and struck key with soft hammer to loosen chuck
4. Remove old chuck and screwed on replacement
5. Reinstalled reverse thread screw.
1. Removed chuck screw with large Phillips head screwdriver. The screw is a reverse thread so turn it clockwise.
2. Took largest allen wrench I had and tightened it in the chuck.
3. Made sure the drill was in drill mode and in low gear. This will provide the most resistance.
4. Hit allen wrench with rubber mallet until
... Read more chuck loosened. The thread is a regular thread so turn counterclockwise. Some people put the drill body in a vice, but I just turned the drill upside down and let the chuck over the side of the table while striking the allen wrench with the mallet.
5. Put replacement chuck back on hand tight and then reinstalled chuck screw. I used the old screw because I didn\'t damage it when I removed it. I did order a new screw just in case since it was cheap.
Read less
