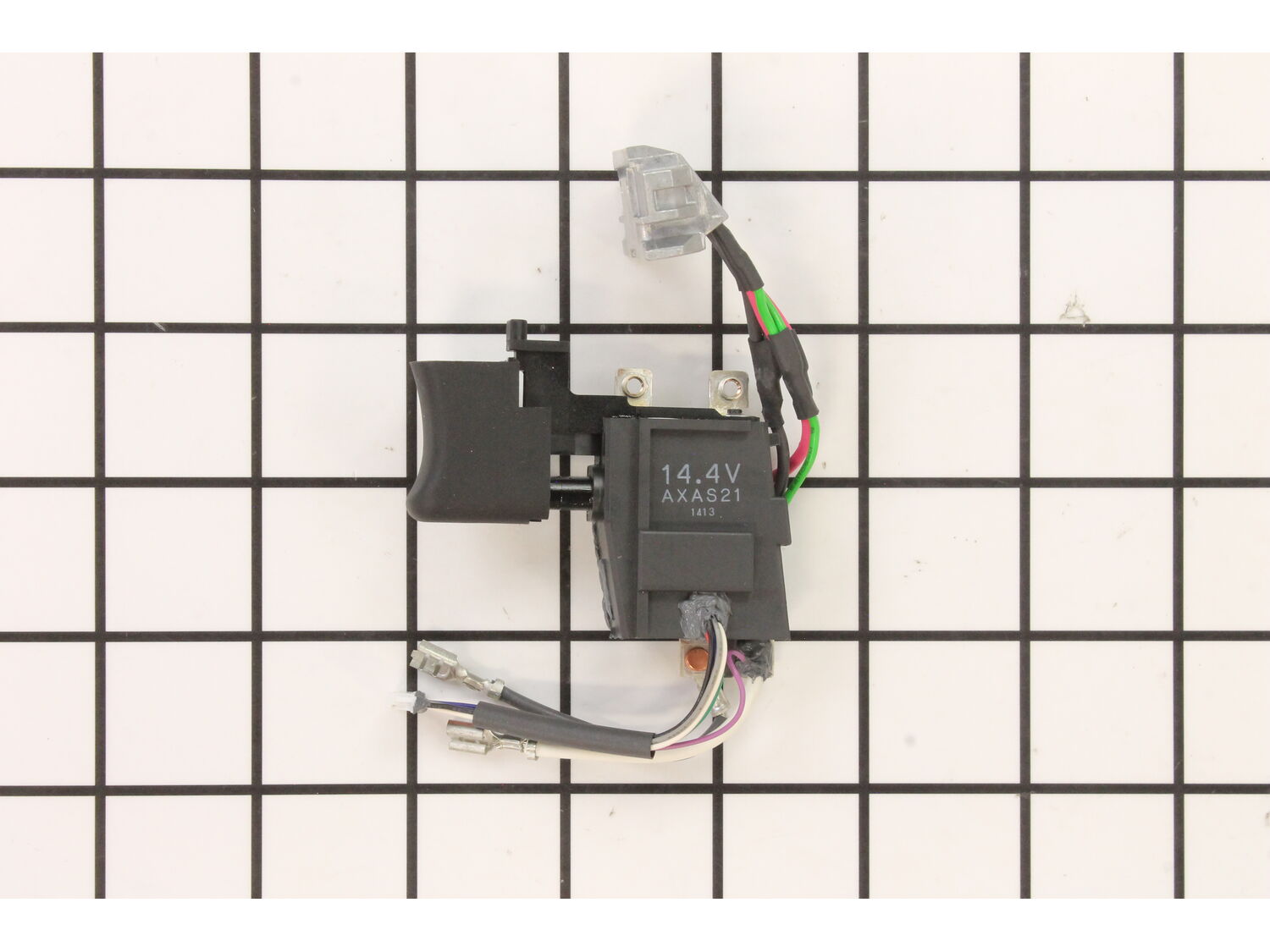

This is an OEM part sourced directly from the manufacturer. The switch assembly is found in a Panasonic drill/driver. This part is an electrical component made primarily of high-quality plastic with metal wires, and it is placed in the handle housing set to allow the user to trigger the device. You may require an Allen wrench or screwdriver when replacing this item. The switch assembly is available as an individual replacement part.
Troubleshooting
This part works with the following brands:
Panasonic
This part works with the following products:
Cordless Drill
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1.Removed Torx T10 screws. Need a longer screwdriver type to reach the two screws at the base of the handle, the short 1\" long T10 that come in a set will not reach the screws there.
2.Remove right side drill cover. Everything stays in the left side cover.
3.Take pictures with phone camera for reference.
4.Unscrew two
... Read morephillips head screws for power wires at top.
5.Disconnect two push on terminals from the bottom.
6.Disconnect one plug from circuit board at bottom.
7.Pull out old switch. Tab at the top must engage the fwd/reverse external switch lever.
Installation is the reverse of these steps.
Be careful that all wires are routed correctly so they are not pinched when putting the right side shell back on.
The motor brushes on the drill I fixed were only 10% worn, I would not order this part unless you are sure yours are bad. Also, the part description on the order list calls this the \"motor\", but the arrow and the part are clearly the brush assembly.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP11789569
Manufacturer Part Number: WEY7440L2007
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
