Part Location Diagram of WPW10286646 Whirlpool Wiring Harness
See part NI in the diagram

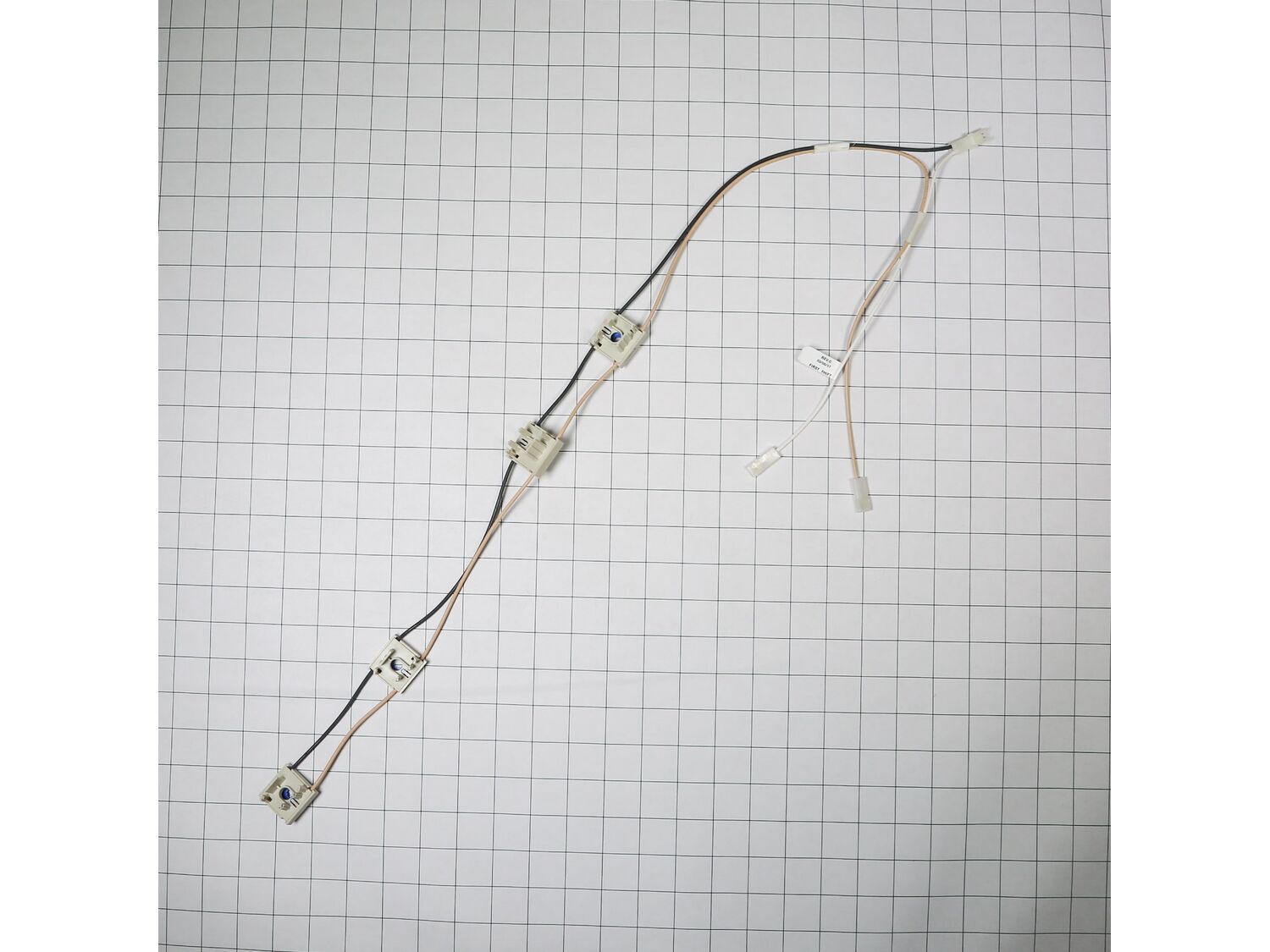

( Grid squares measure 1x1 inch )

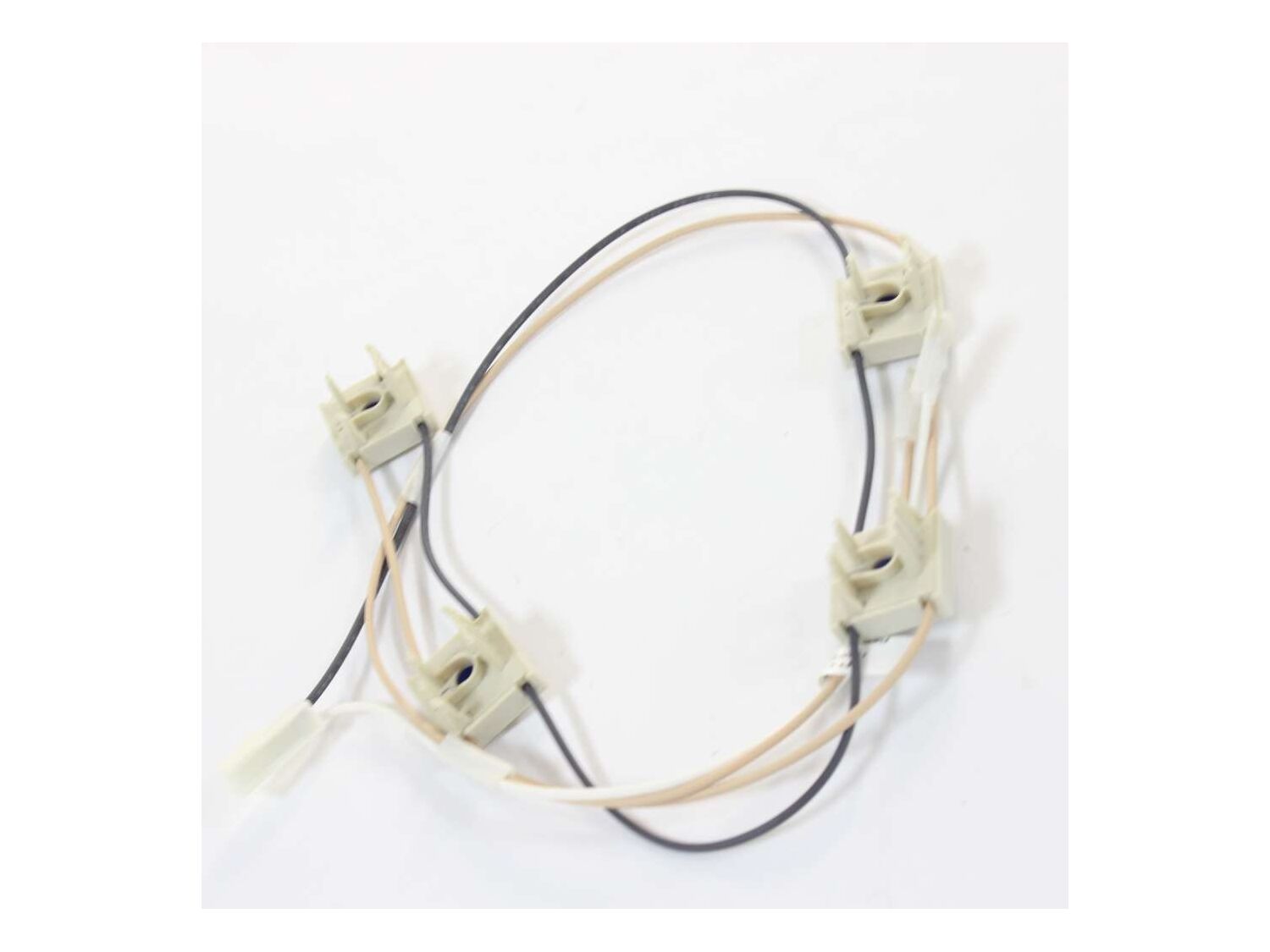

Wiring Harness WPW10286646

Manufactured by:
Whirlpool
ERP Number:
ERP11752044
Part Number:
WPW10286646
Original Equipment Manufacturer ?
$120.52
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Whirlpool
This part works with the following products:
  • Cooktop
Part# WPW10286646 replaces these:
W10286646,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11752044
Manufacturer Part Number: WPW10286646
Brand Model Number Description
Whirlpool G7CG3064XB00 Cooktop - Gas, 30"
Whirlpool G7CG3064XS00 Cooktop - Gas, 30"
