Part Location Diagram of DG96-00487A Samsung Wire Harness Assembly
See part 26 in the diagram
( Grid squares measure 1x1 inch )

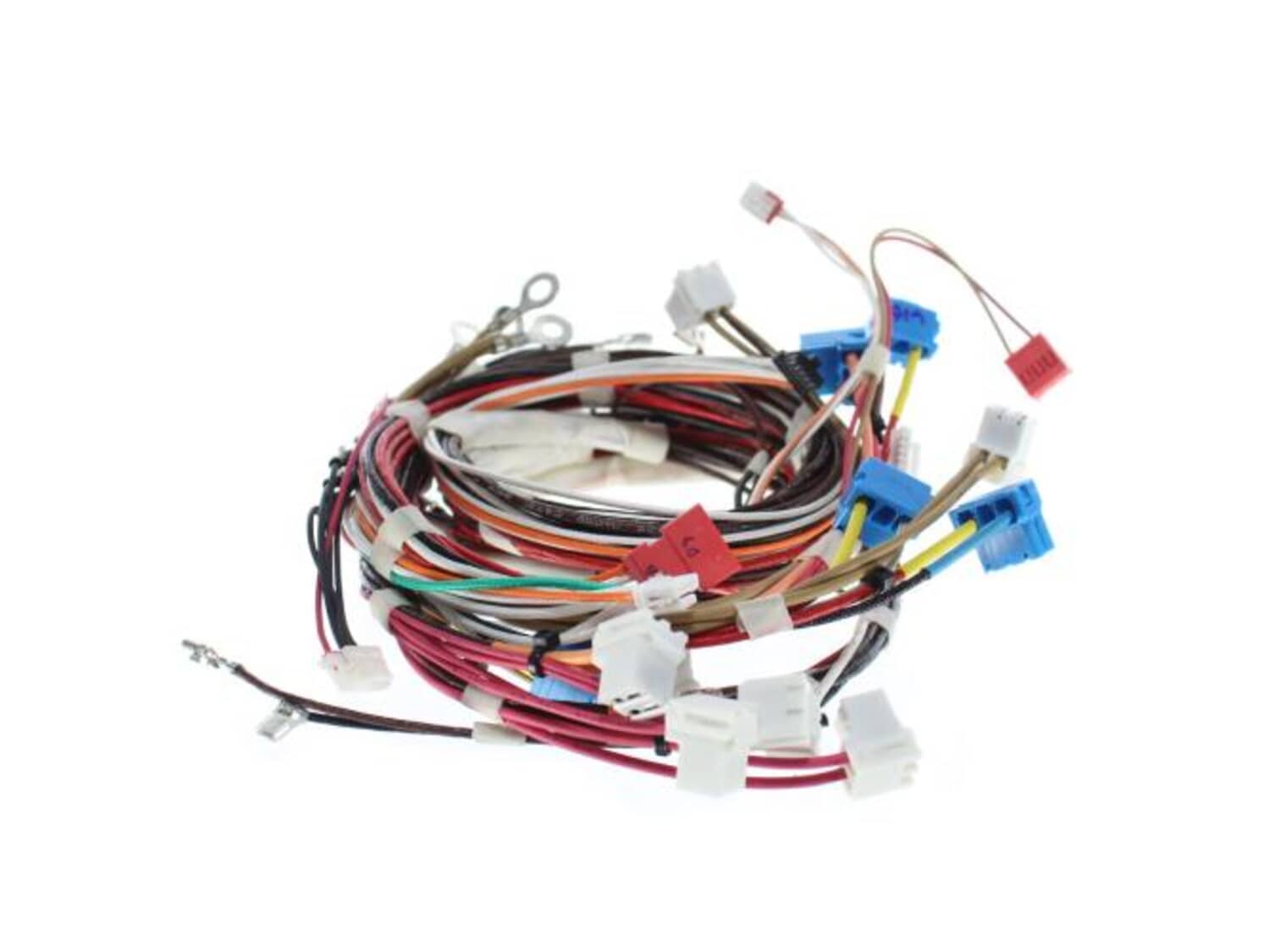

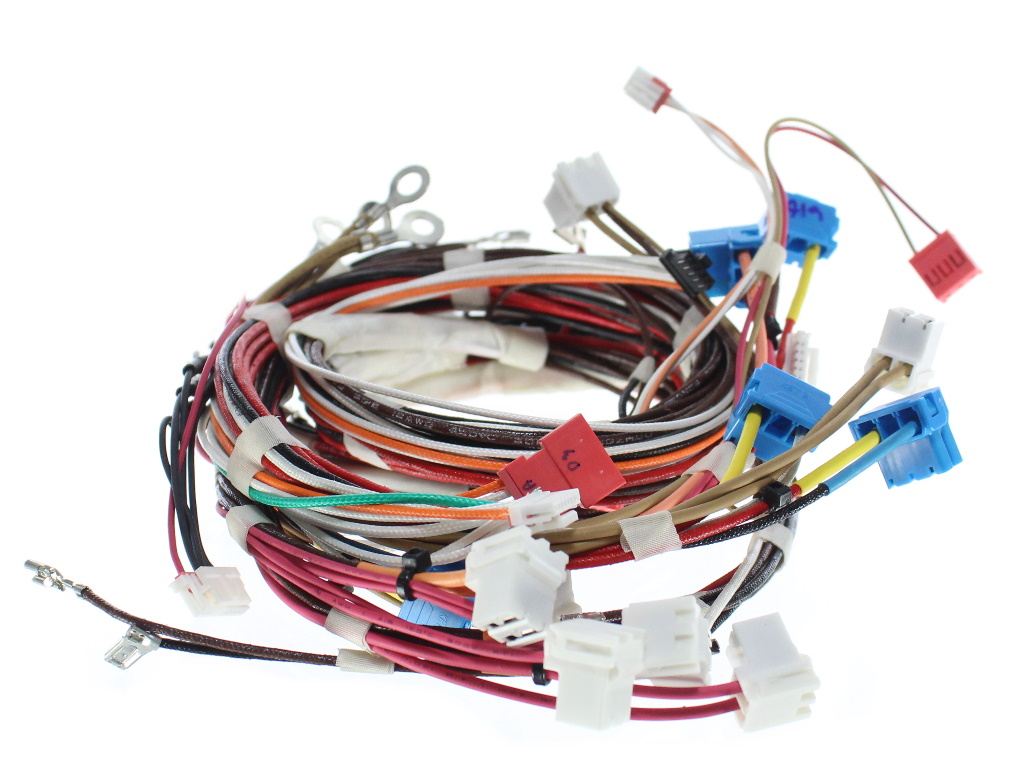

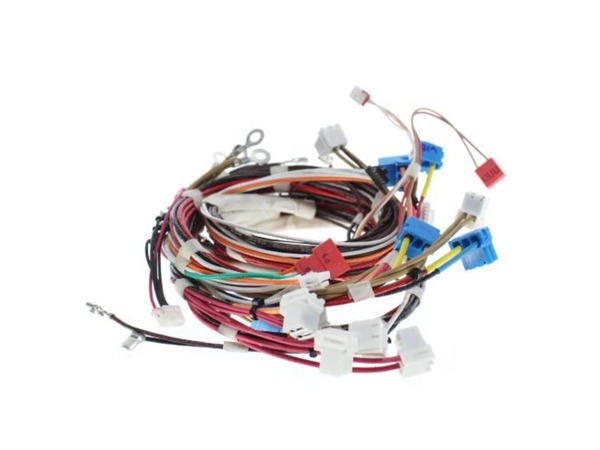

Wire Harness Assembly DG96-00487A

Manufactured by:
Samsung
ERP Number:
ERP12245369
Part Number:
DG96-00487A
Original Equipment Manufacturer ?
$342.05
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Samsung
This part works with the following products:
  • Cooktop

Model Cross Reference

This part works with the following models:
ERP Number: ERP12245369
Manufacturer Part Number: DG96-00487A
Brand Model Number Description
Samsung NZ36K7570RG Cooktop - ELECTRIC COOKTOP
Samsung NZ36K7570RS Cooktop - ELECTRIC COOKTOP
