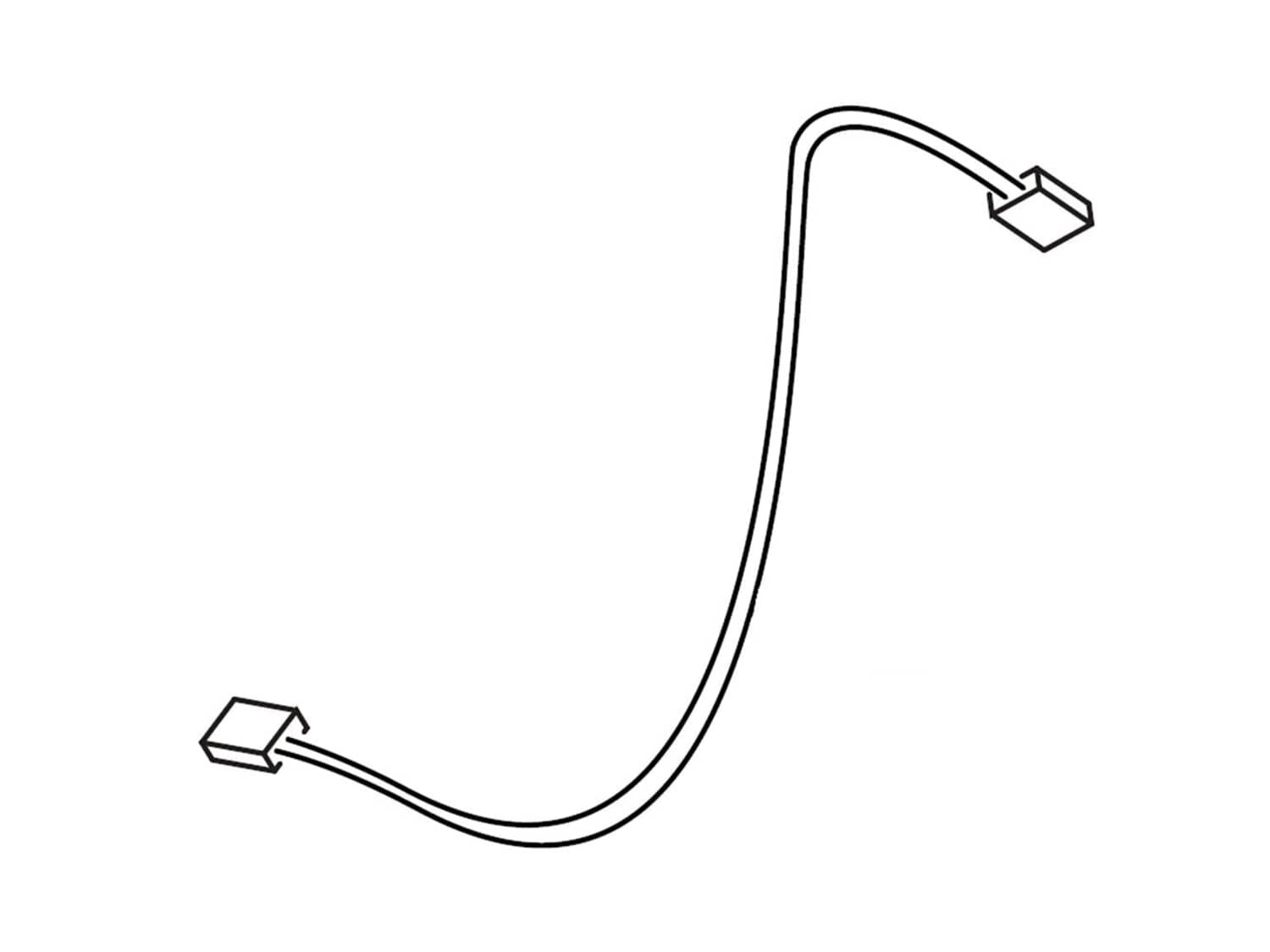

Part Location Diagram of DG96-00506A Samsung Wire Harness Assembly
See part 34 in the diagram
( Grid squares measure 1x1 inch )

Wire Harness Assembly DG96-00506A

Manufactured by:
Samsung
ERP Number:
ERP12086506
Part Number:
DG96-00506A
Original Equipment Manufacturer ?
$81.43
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Samsung
This part works with the following products:
  • Cooktop
Part# DG96-00506A replaces these:
111986,

Model Cross Reference

This part works with the following models:
ERP Number: ERP12086506
Manufacturer Part Number: DG96-00506A
Brand Model Number Description
Samsung DTI36M977BB Cooktop - Cooktop
Samsung NZ30K7880UG Cooktop - COOKTOP
Samsung NZ30K7880US Cooktop - COOKTOP
Samsung NZ30K7882UG Cooktop
Samsung NZ30K7882US Cooktop - Samsung Nz30k7882us/Aa-00 Electric Cooktop
Samsung NZ36K7880UG Cooktop - ELECTRIC COOKTOP
Samsung NZ36K7880US Cooktop - ELECTRIC COOKTOP
Samsung NZ36K7882UG Cooktop - ELECTRIC COOKTOP
Samsung NZ36K7882US Cooktop - ELECTRIC COOKTOP
