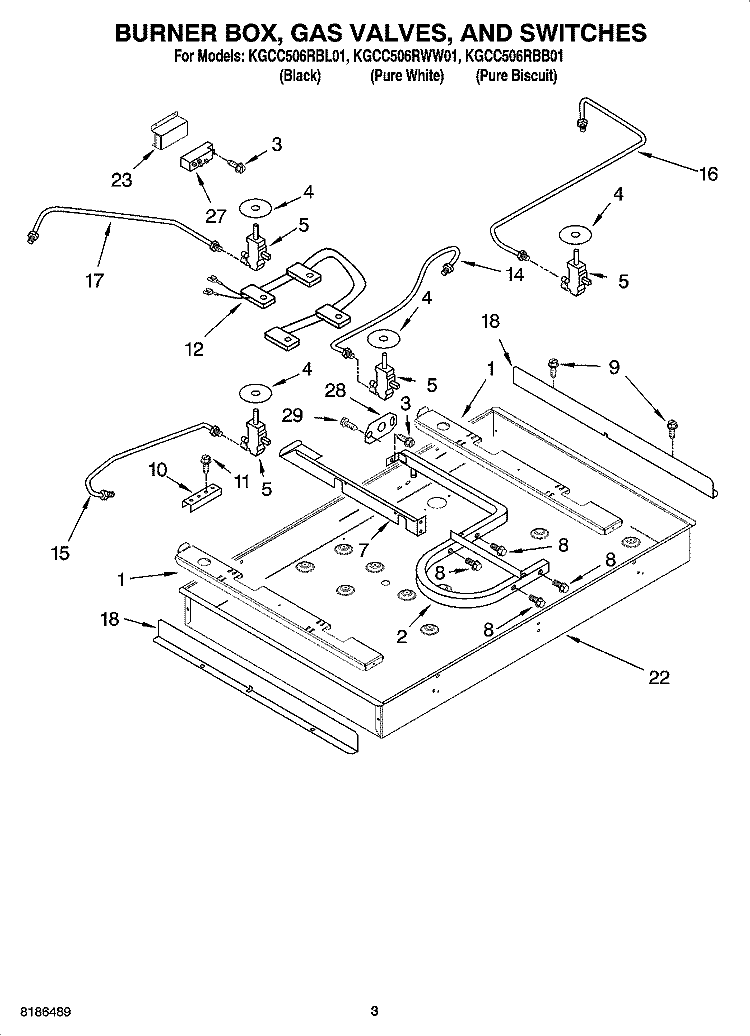

Part Location Diagram of 8285774 Whirlpool Burner Box
See part 22 in the diagram

Burner Box 8285774

Manufactured by:
Whirlpool
ERP Number:
ERP988166
Part Number:
8285774
Original Equipment Manufacturer ?
$167.25
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • KitchenAid
  • Whirlpool
This part works with the following products:
  • Cooktop
Part# 8285774 replaces these:
8285774,

Model Cross Reference

This part works with the following models:
ERP Number: ERP988166
Manufacturer Part Number: 8285774
Brand Model Number Description
KitchenAid KGCC506RBB00 Cooktop
KitchenAid KGCC506RBB01 Cooktop
KitchenAid KGCC506RBL00 Cooktop
KitchenAid KGCC506RBL01 Cooktop
KitchenAid KGCC506RBL02 Cooktop
KitchenAid KGCC506RBL03 Cooktop
KitchenAid KGCC506RBL04 Cooktop
KitchenAid KGCC506RBL05 Cooktop
Whirlpool KGCC506RBL07 Range
KitchenAid KGCC506RWW00 Cooktop
KitchenAid KGCC506RWW01 Cooktop
KitchenAid KGCC506RWW02 Cooktop
KitchenAid KGCC506RWW03 Cooktop
KitchenAid KGCC506RWW04 Cooktop
KitchenAid KGCC506RWW05 Cooktop
KitchenAid KGCC506RWW07 Cooktop
